TR9CZ4730 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

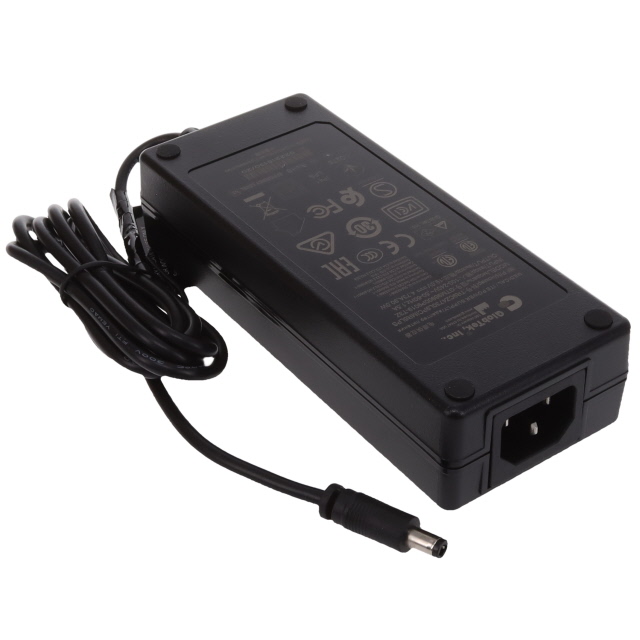

AC/DC DESKTOP ADAPTER 19V 90W
| Part | Applications | Voltage - Output | Input Connector | Power (Watts) | Cord Length | Cord Length | Approval Agency | No Load Power Consumption | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | Polarization | Output Connector [diameter] | Output Connector [x] | Output Connector | Form | Current - Output (Max) [Max] | Region Utilized | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | Household Appliances ITE (Commercial) Medical | 19 V | IEC 320-C14 | 90 W | 1.2 m | 47.2 in | CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI | 150 mW | 264 VAC | 90 VAC | CoC Tier 2 Level VI | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | Cord (Sold Separately) | 50 °C | 0 °C | Positive Center | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | Desktop (Class I) | 4.73 A | International | 1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 |
