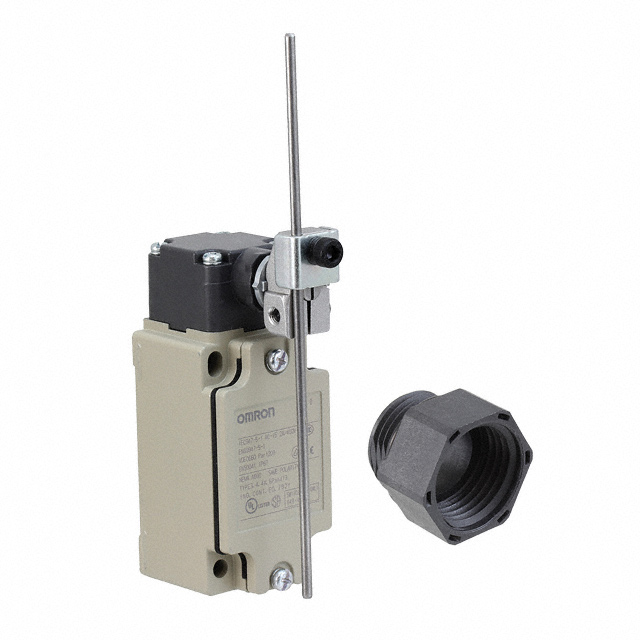

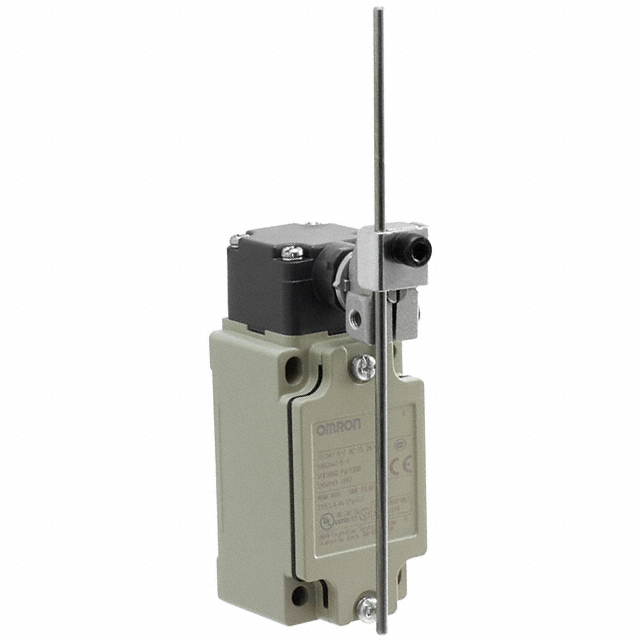

D4B-4117 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 120V
| Part | Overtravel [custom] | Switch Function | Release Force | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Operating Position | Operating Force | Differential Travel | Ingress Protection | Mechanical Life | Electrical Life | Pretravel | Voltage Rating - AC | Voltage Rating - DC | Circuit | Actuator Type | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 50 ° | On-Mom | 30 gf | Screw Terminal | 80 °C | -40 C | 21 ° | 216 gf | 12 ° | IP67 - Dust Tight Waterproof | 30000000 Cycles | 500000 Cycles | 21 ° | 120 V | 30 V | SPDT (DB/DM) | Side Rotary Adjustable Rod | 6 A 10 A | Chassis Mount |
 Omron Automation and Safety | 50 ° | On-Mom | 30 gf | Screw Terminal | 80 °C | -40 C | 21 ° | 216 gf | 12 ° | IP67 - Dust Tight Waterproof | 30000000 Cycles | 500000 Cycles | 21 ° | 120 V | 30 V | SPDT (DB/DM) | Side Rotary Adjustable Rod | 6 A 10 A | Chassis Mount |
