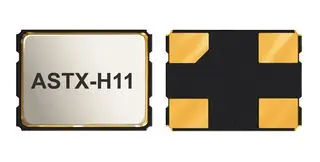

ASTX-H11 Series

Catalog

TCXO, 26MHZ, HCMOS, SMD, 3.2MM X 2.5MM ROHS COMPLIANT: YES

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Output	Package / Case	Base Resonator [custom]	Current - Supply (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Supply	Frequency Stability	Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Frequency	Function
Abracon LLC ASTX-H11-26.000MHZ-T	0.043 "	1.1 mm	Surface Mount	HCMOS	4-SMD No Lead	Crystal	5.5 mA	2.5 mm	0.098 in	3.2 mm	0.126 "	3.3 V	2.5 ppm	TCXO	75 ░C	-30 ░C	3.2	2.5	4-SMD	26 MHz	Enable/Disable
Abracon LLC ASTX-H11-32.000MHZ-T	0.043 "	1.1 mm	Surface Mount	HCMOS	4-SMD No Lead	Crystal	6 mA	2.5 mm	0.098 in	3.2 mm	0.126 "	3.3 V	2.5 ppm	TCXO	75 ░C	-30 ░C	3.2	2.5	4-SMD	32 MHz	Enable/Disable
