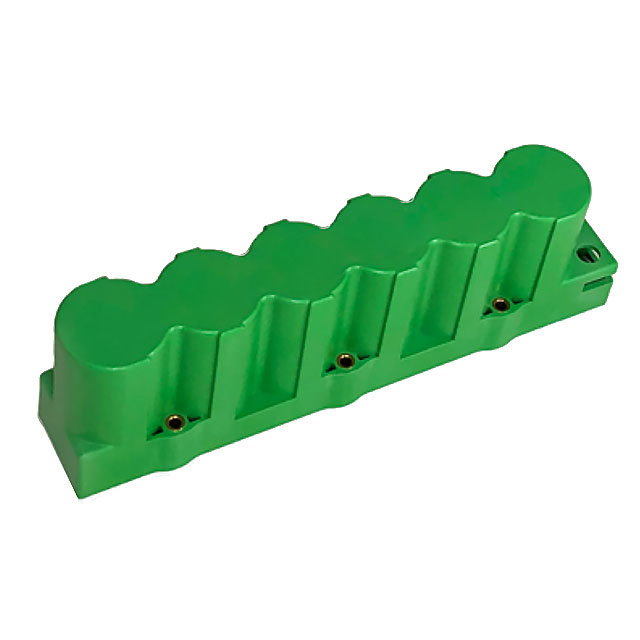

XTM-18 Series
Supercapacitors / Ultracapacitors 18.0V SUPERCAPACITOR MODULE, 61.7F
Manufacturer: Eaton - Electronics Division
Catalog
Supercapacitors / Ultracapacitors 18.0V SUPERCAPACITOR MODULE, 61.7F
Beta
⌘K
Supercapacitors / Ultracapacitors 18.0V SUPERCAPACITOR MODULE, 61.7F
Supercapacitors / Ultracapacitors 18.0V SUPERCAPACITOR MODULE, 61.7F
Supercapacitors / Ultracapacitors 18.0V SUPERCAPACITOR MODULE, 61.7F
| Part | Voltage - Rated | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Capacitance | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Termination | Tolerance [Min] | Tolerance [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 18 VDC | 3.051 in | 77.5 mm | Module | 61.7 F | 22 mOhms | 1500 Hrs | -40 C | 65 °C | Chassis Mount | 236 mm | 9.291 in | 1.803 in | 45.8 mm | Screw Terminals | -5 % | 20 % |
