9202 Series

Catalog

REED RELAY, SPST-NO, 5 VDC, 9200 SERIES, SURFACE MOUNT, 150 OHM, 500 MA

Part	Coil Resistance	Operate Time	Coil Current	Must Operate Voltage	Contact Form	Must Release Voltage	Mounting Type	Features	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Type	Release Time	Switching Voltage [Max]	Coil Voltage

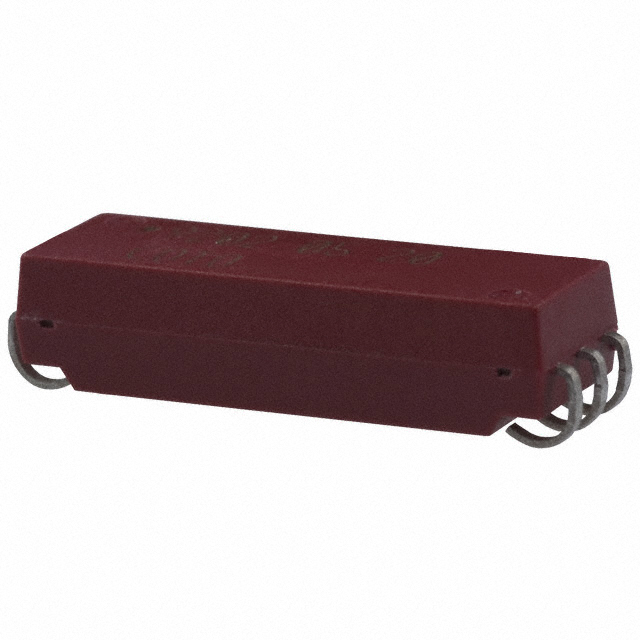

COTO TECHNOLOGY 9202-05-20	150 Ohms	0.4 ms	33.3 mA	3.75 VDC	SPST-NO (1 Form A)	0.4 VDC	Surface Mount	Sealed - Hermetically	0.5 A	85 °C	-20 ░C	J Lead	Non Latching	0.1 ms	200 VDC 200 VAC	5 VDC
COTO TECHNOLOGY 9202-05-20TR	150 Ohms	0.4 ms	33.3 mA	3.75 VDC	SPST-NO (1 Form A)	0.4 VDC	Surface Mount	Sealed - Hermetically	0.5 A	85 °C	-20 ░C	J Lead	Non Latching	0.1 ms	200 VDC 200 VAC	5 VDC
COTO TECHNOLOGY 9202-12-20TR	650 Ohms	0.4 ms	18.5 mA	9 VDC	SPST-NO (1 Form A)	1 VDC	Surface Mount	Sealed - Hermetically	0.5 A	85 °C	-20 ░C	J Lead	Non Latching	0.1 ms	200 VDC 200 VAC	12 VDC

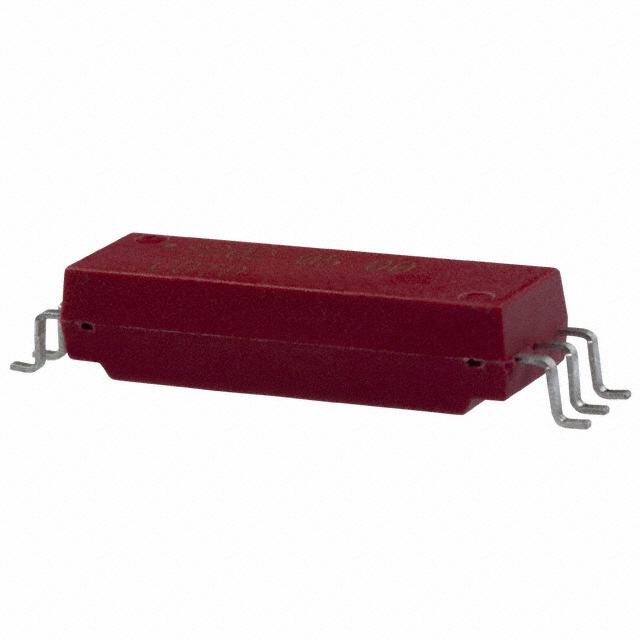

COTO TECHNOLOGY 9202-05-00	150 Ohms	0.4 ms	33.3 mA	3.75 VDC	SPST-NO (1 Form A)	0.4 VDC	Surface Mount	Sealed - Hermetically	0.5 A	85 °C	-20 ░C	Gull Wing	Non Latching	0.1 ms	200 VDC 200 VAC	5 VDC
COTO TECHNOLOGY 9202-12-00	650 Ohms	0.4 ms	18.5 mA	9 VDC	SPST-NO (1 Form A)	1 VDC	Surface Mount	Sealed - Hermetically	0.5 A	85 °C	-20 ░C	Gull Wing	Non Latching	0.1 ms	200 VDC 200 VAC	12 VDC
COTO TECHNOLOGY 9202-12-20	650 Ohms	0.4 ms	18.5 mA	9 VDC	SPST-NO (1 Form A)	1 VDC	Surface Mount	Sealed - Hermetically	0.5 A	85 °C	-20 ░C	J Lead	Non Latching	0.1 ms	200 VDC 200 VAC	12 VDC
COTO TECHNOLOGY 9202-05-00TR	150 Ohms	0.4 ms	33.3 mA	3.75 VDC	SPST-NO (1 Form A)	0.4 VDC	Surface Mount	Sealed - Hermetically	0.5 A	85 °C	-20 ░C	Gull Wing	Non Latching	0.1 ms	200 VDC 200 VAC	5 VDC
COTO TECHNOLOGY 9202-12-00TR	650 Ohms	0.4 ms	18.5 mA	9 VDC	SPST-NO (1 Form A)	1 VDC	Surface Mount	Sealed - Hermetically	0.5 A	85 °C	-20 ░C	Gull Wing	Non Latching	0.1 ms	200 VDC 200 VAC	12 VDC
