103817 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 60POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insulation Color	Insulation Height	Insulation Height	Contact Type	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Style	Number of Positions	Mounting Type	Contact Finish - Post	Connector Type	Insulation Material
TE Connectivity AMP Connectors 6-103817-8	2.54 µm	100 µin	UL94 V-0	Gold	0.1 "	2.54 mm	3.05 mm	0.12 in	Phosphor Bronze	Push-Pull	0.76 Ám	30 Áin	3 A	0.47 in	11.94 mm	105 ░C	-65 ░C	Solder	Black	3.05 mm	0.12 in	Male Pin	Unshrouded	0.23 in	5.84 mm	Square	3	0.1 in	2.54 mm	All	Board to Board Cable	60	Through Hole	Tin	Header	Thermoplastic

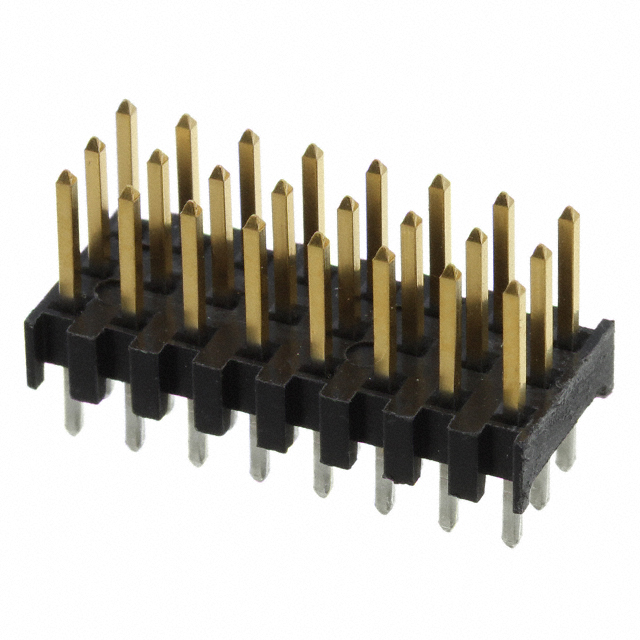

TE Connectivity AMP Connectors 103817-6	2.54 µm	100 µin	UL94 V-0	Gold	0.1 "	2.54 mm	3.05 mm	0.12 in	Phosphor Bronze	Push-Pull	0.76 Ám	30 Áin	3 A	0.47 in	11.94 mm	105 ░C	-65 ░C	Solder	Black	3.05 mm	0.12 in	Male Pin	Unshrouded	0.23 in	5.84 mm	Square	3	0.1 in	2.54 mm	All	Board to Board Cable	24	Through Hole	Tin-Lead	Header	Thermoplastic
TE Connectivity AMP Connectors 103817-4	2.54 µm	100 µin	UL94 V-0	Gold	0.1 "	2.54 mm	3.05 mm	0.12 in	Phosphor Bronze	Push-Pull	0.76 Ám	30 Áin	3 A	0.47 in	11.94 mm	105 ░C	-65 ░C	Solder	Black	3.05 mm	0.12 in	Male Pin	Unshrouded	0.23 in	5.84 mm	Square	3	0.1 in	2.54 mm	All	Board to Board Cable	18	Through Hole	Tin-Lead	Header	Thermoplastic
TE Connectivity AMP Connectors 103817-5	2.54 µm	100 µin	UL94 V-0	Gold	0.1 "	2.54 mm	3.05 mm	0.12 in	Phosphor Bronze	Push-Pull	0.76 Ám	30 Áin	3 A	0.47 in	11.94 mm	105 ░C	-65 ░C	Solder	Black	3.05 mm	0.12 in	Male Pin	Unshrouded	0.23 in	5.84 mm	Square	3	0.1 in	2.54 mm	All	Board to Board Cable	21	Through Hole	Tin-Lead	Header	Thermoplastic
