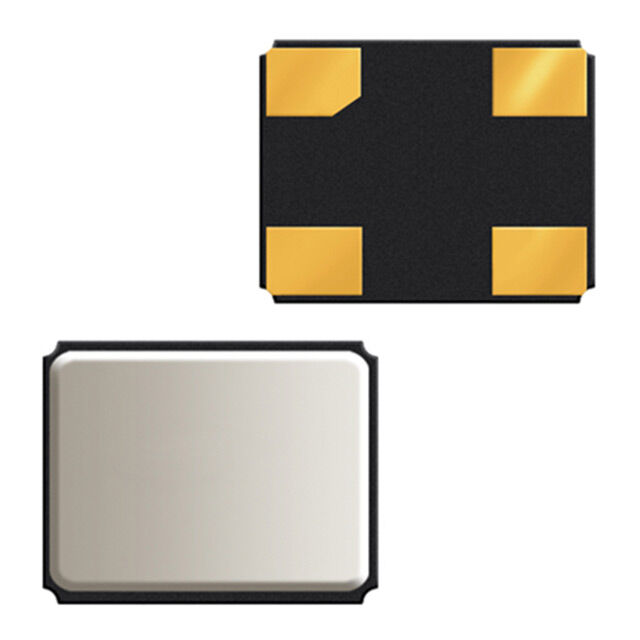

ABM11W Series

Catalog

CRYSTALS XTAL 2016 4-SMD 32MHZ TOL +/-10PPM STAB +/-50PPM -40C - 105C 8PF 50 OHMS

Part	Type	Frequency	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package [custom]	ESR (Equivalent Series Resistance)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency Tolerance	Load Capacitance	Package / Case	Frequency Stability	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Mode
Abracon LLC ABM11W-32.0000MHZ-8-J1Z-T3	MHz Crystal	32 MHz	1.6	2	4-SMD	50 Ohms	Surface Mount	0.02 in	0.5 mm	10 ppm	8 pF	4-SMD No Lead	50 ppm	-40 C	105 ░C	1.6 mm	0.079 in	0.063 "	2 mm	Fundamental
Abracon LLC ABM11W-38.4000MHZ-8-K1Z-T3	MHz Crystal	38.4 MHz	1.6	2	4-SMD	40 Ohms	Surface Mount	0.02 in	0.5 mm	10 ppm	8 pF	4-SMD No Lead	50 ppm	-40 C	125 °C	1.6 mm	0.079 in	0.063 "	2 mm	Fundamental
Abracon LLC ABM11W-27.1200MHZ-6-B1U-T3	MHz Crystal	27.12 MHz	1.6	2	4-SMD	50 Ohms	Surface Mount	0.02 in	0.5 mm	10 ppm	6 pF	4-SMD No Lead	10 ppm	-20 ░C	70 °C	1.6 mm	0.079 in	0.063 "	2 mm	Fundamental
Abracon LLC ABM11W-30.0000MHZ-6-K2Z-T3	MHz Crystal	30 MHz	1.6	2	4-SMD	50 Ohms	Surface Mount	0.02 in	0.5 mm	20 ppm	6 pF	4-SMD No Lead	50 ppm	-40 C	125 °C	1.6 mm	0.079 in	0.063 "	2 mm	Fundamental
Abracon LLC ABM11W-16.0000MHZ-7-B1U-T3	MHz Crystal	16 MHz	1.6	2	4-SMD	150 Ohms	Surface Mount	0.02 in	0.5 mm	10 ppm	7 pF	4-SMD No Lead	10 ppm	-20 ░C	70 °C	1.6 mm	0.079 in	0.063 "	2 mm	Fundamental
Abracon LLC ABM11W-24.0000MHZ-8-B1U-T3	MHz Crystal	24 MHz	1.6	2	4-SMD	50 Ohms	Surface Mount	0.02 in	0.5 mm	10 ppm	8 pF	4-SMD No Lead	10 ppm	-20 ░C	70 °C	1.6 mm	0.079 in	0.063 "	2 mm	Fundamental
Abracon LLC ABM11W-24.0000MHZ-6-B1U-T3	MHz Crystal	24 MHz	1.6	2	4-SMD	50 Ohms	Surface Mount	0.02 in	0.5 mm	10 ppm	6 pF	4-SMD No Lead	10 ppm	-20 ░C	70 °C	1.6 mm	0.079 in	0.063 "	2 mm	Fundamental
Abracon LLC ABM11W-25.0000MHZ-7-K1Z-T3	MHz Crystal	25 MHz	1.6	2	4-SMD	50 Ohms	Surface Mount	0.02 in	0.5 mm	10 ppm	7 pF	4-SMD No Lead	50 ppm	-40 C	125 °C	1.6 mm	0.079 in	0.063 "	2 mm	Fundamental
Abracon LLC ABM11W-38.4000MHZ-6-D2X-T3	MHz Crystal	38.4 MHz	1.6	2	4-SMD	40 Ohms	Surface Mount	0.02 in	0.5 mm	20 ppm	6 pF	4-SMD No Lead	20 ppm	-40 C	85 °C	1.6 mm	0.079 in	0.063 "	2 mm	Fundamental
Abracon LLC ABM11W-16.0000MHZ-8-K1Z-T3	MHz Crystal	16 MHz	1.6	2	4-SMD	150 Ohms	Surface Mount	0.02 in	0.5 mm	10 ppm	8 pF	4-SMD No Lead	50 ppm	-40 C	125 °C	1.6 mm	0.079 in	0.063 "	2 mm	Fundamental
