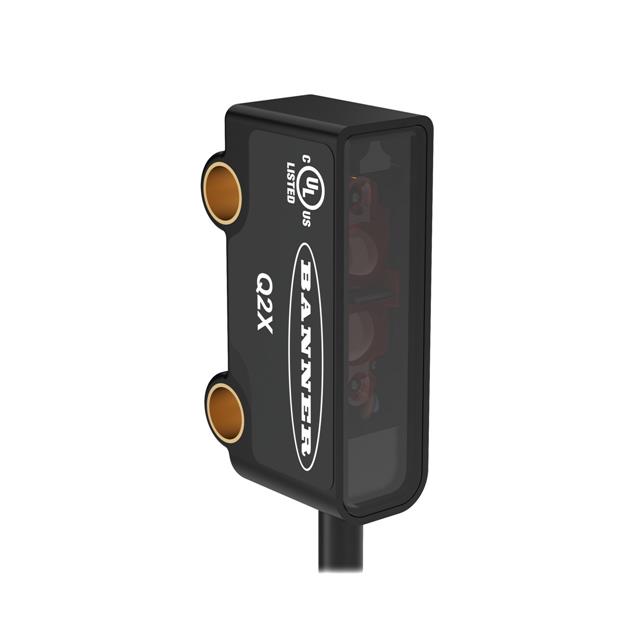

Q2X Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
PHOTOELECTRIC SENSORS Q2X SERIES: RECEIVER; RANGE: 3000 MM, INPUT 10-30 V DC; OUTPUT: LO (LIGHT OPERATE), BIPOLAR: 1 NPN, 1 PNP; 150 MM (6 IN) 4-PIN M8 PIGTAIL QD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Adjustment Type | Output Configuration | Voltage - Supply [Min] | Voltage - Supply [Max] | Response Time | Connection Method | Sensing Distance | Sensing Distance | Light Source | Sensing Method | Ingress Protection | Cable Length | Cable Length | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Max] | Sensing Distance [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 50 °C | -25 °C | Adjustable Potentiometer | NPN/PNP - Light-ON | 10 VDC | 30 VDC | 1 ms 600 µs | Connector M8 | 118.11 in | 3 m | Red (645nm) | Through-Beam | IP67 | ||||||
 BANNER ENGINEERING | 50 °C | -20 ░C | Teaching Method | PNP - Dark-ON/Light-ON | 10 VDC | 30 VDC | 100 ms | Cable with Connector M8 | Infrared (940nm) | Background Suppression Proximity | IP67 NEMA 4X | 5.906 in | 150 mm | 20 mm | 2000 mm | 78.74 " | 0.787 " | ||
 BANNER ENGINEERING | 50 °C | -25 °C | Adjustable Potentiometer | NPN/PNP - Light-ON | 10 VDC | 30 VDC | 600 µs | Connector M8 | 129.921 in | 3.3 m | Red (645nm) | Polarized Retroreflective | IP67 | ||||||
 BANNER ENGINEERING | 50 °C | -25 °C | 3-Turn Potentiometer Adjustable | NPN/PNP - Light-ON | 10 VDC | 30 VDC | 850 µs | Connector | Red (645nm) | Background Suppression | IP67 | 18 mm | 15 cm | 5.906 in | 0.709 " | ||||
BANNER ENGINEERING | 50 °C | -25 °C | 3-Turn Potentiometer Adjustable | PNP - Dark-ON | 10 VDC | 30 VDC | 850 µs | Connector | Red (645nm) | Background Suppression | IP67 | 18 mm | 15 cm | 5.906 in | 0.709 " |
