ECE20-40 Series
Manufacturer: XP Power
Beta
⌘K

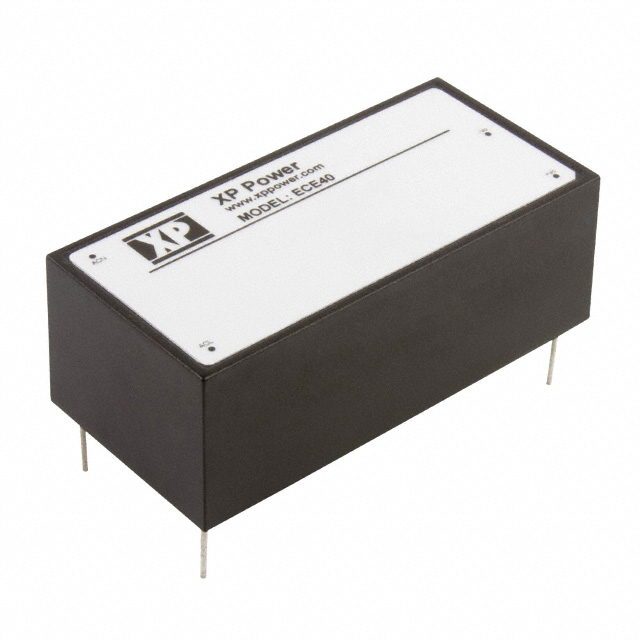

AC/DC POWER MODULES AC/DC, ENCAPSULATED, 40W
| Part | Line Regulation | Weight | Weight | Load Regulation | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Type | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Output (Max) [Max] | Features | Efficiency | Number of Outputs | Standard Number | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 0.5 % | 150.14 g | 0.331 lb | ±1% | 40 W | 70 °C | -25 °C | ITE (Commercial) | Enclosed | 48 V | 85 VAC 120 VDC | 264 VAC 370 VDC | 4-DIP Module | 1.1 in | 38.1 mm | 27.9 mm | 78.7 mm | 3.1 in | 1.5 " | 830 mA | Universal Input | 86 % | 1 | 62368-1 | Through Hole | CSA cUL EN UL |
 XP Power | 40 W | 70 °C | -25 °C | ITE (Commercial) | Enclosed | 9 V | 85 VAC 120 VDC | 264 VAC 370 VDC | 4-DIP Module | 1.1 in | 38.1 mm | 27.9 mm | 78.7 mm | 3.1 in | 1.5 " | 4.44 A | Universal Input | 80 % | 1 | 62368-1 | Through Hole | CSA cUL EN UL | ||||

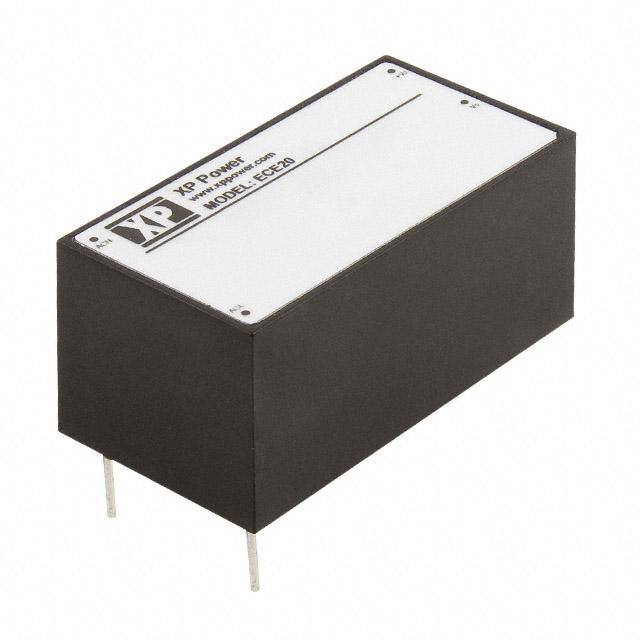

 XP Power | 0.5 % | 59.87 g | 0.132 lb | ±1% | 20 W | 70 °C | -25 °C | ITE (Commercial) | Enclosed | 24 V | 85 VAC 120 VDC | 264 VAC 370 VDC | 4-DIP Module | 0.91 in | 27.2 mm | 23 mm | 52.3 mm | 2.06 " | 1.07 in | 830 mA | Universal Input | 1 | 62368-1 | Through Hole | CSA cUL EN UL | |
XP Power | 40 W | 70 °C | -25 °C | ITE (Commercial) | Enclosed | 12 V | 85 VAC 120 VDC | 264 VAC 370 VDC | 4-DIP Module | 1.1 in | 38.1 mm | 27.9 mm | 78.7 mm | 3.1 in | 1.5 " | 3.33 A | Universal Input | 84 % | 1 | 62368-1 | Through Hole | CSA cUL EN UL |
