845-034 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 34POS 0.100
| Part | Termination Rows | Material - Insulation | Gender | Contact Type | Pitch | Pitch | Card Type | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Color | Number of Positions [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Contact Material | Number of Rows | Termination | Card Thickness [Max] | Card Thickness [Min] | Termination Rows [custom] | Number of Positions/Bay/Row [custom] | Number of Rows [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

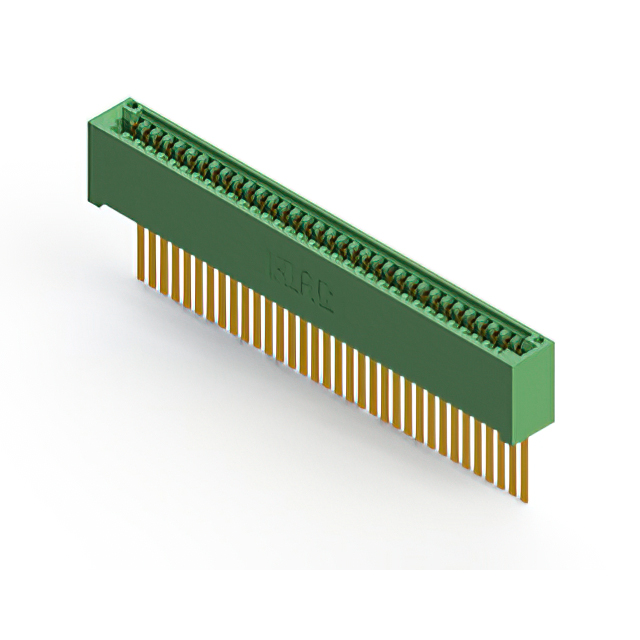

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Cantilever | 0.1 " | 2.54 mm | Non Specified - Single Edge | 34 | 125 °C | -40 C | Gold | Green | 34 | Through Hole | 0.25 Ám | 10 Áin | Single | Copper Alloy | 1 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||||||

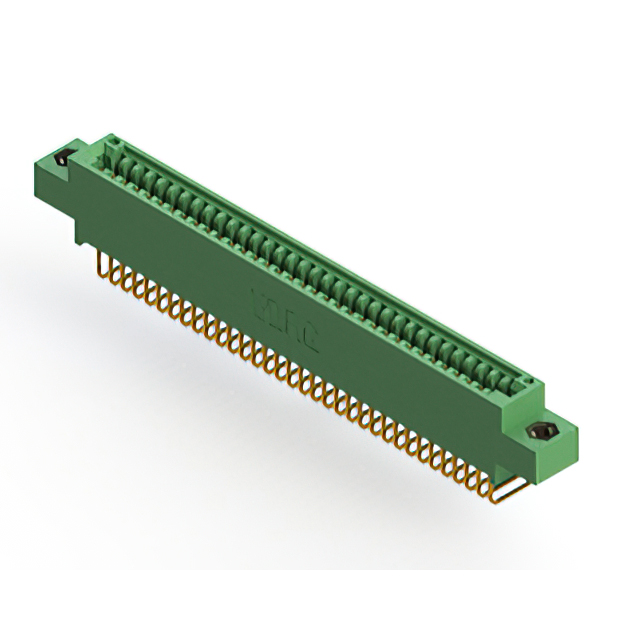

 EDAC Inc. | Diallyl Phthalate (DAP) | Female | Cantilever | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 125 °C | -40 C | Gold | Green | 34 | Through Hole | 0.25 Ám | 10 Áin | Dual | Copper Alloy | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 17 | 2 | M3 Threaded Insert Top Mount Opening | ||||||

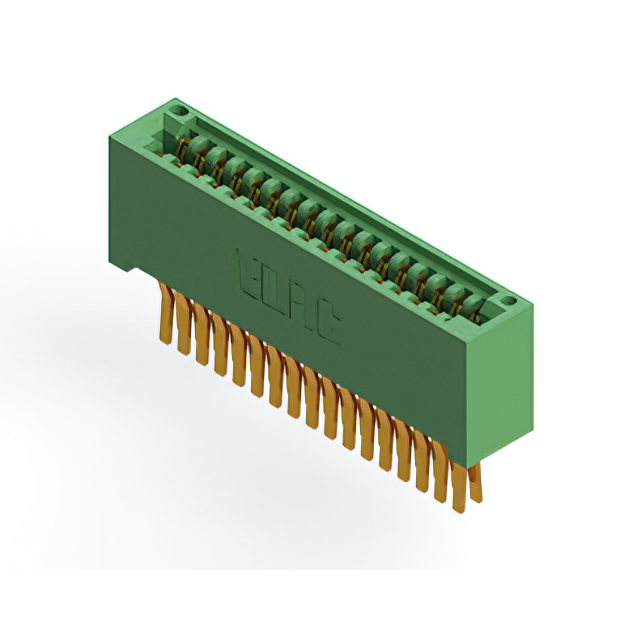

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Cantilever | 0.1 " | 2.54 mm | Non Specified - Single Edge | 34 | 125 °C | -40 C | Gold | Green | 34 | Through Hole | 0.25 Ám | 10 Áin | Single | Copper Alloy | 1 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | ||||||

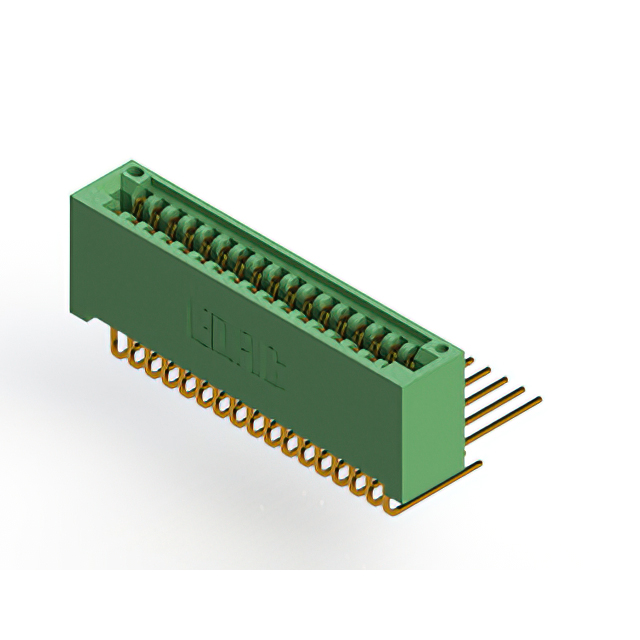

 EDAC Inc. | Diallyl Phthalate (DAP) | Female | Cantilever | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 125 °C | -40 C | Gold | Green | 34 | Right Angle Through Hole | 0.25 Ám | 10 Áin | Dual | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 17 | 2 | |||||||

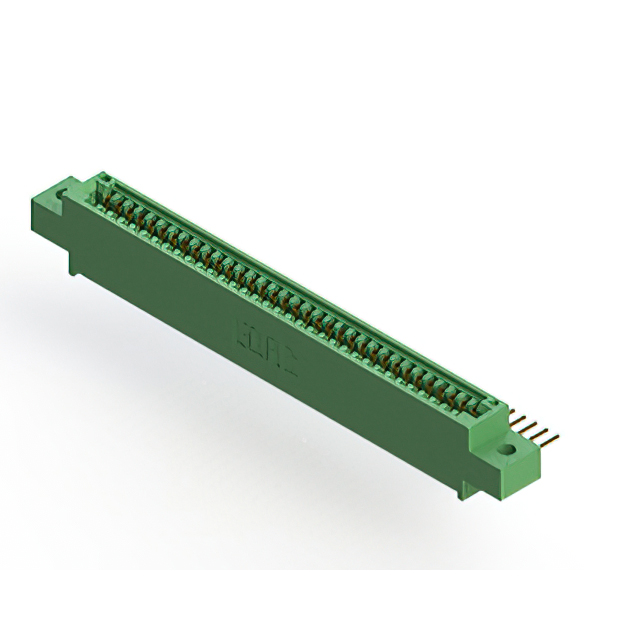

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Cantilever | 0.1 " | 2.54 mm | Non Specified - Single Edge | 34 | 125 °C | -40 C | Gold | Green | 34 | Through Hole | 0.25 Ám | 10 Áin | Single | Copper Alloy | 1 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | ||||

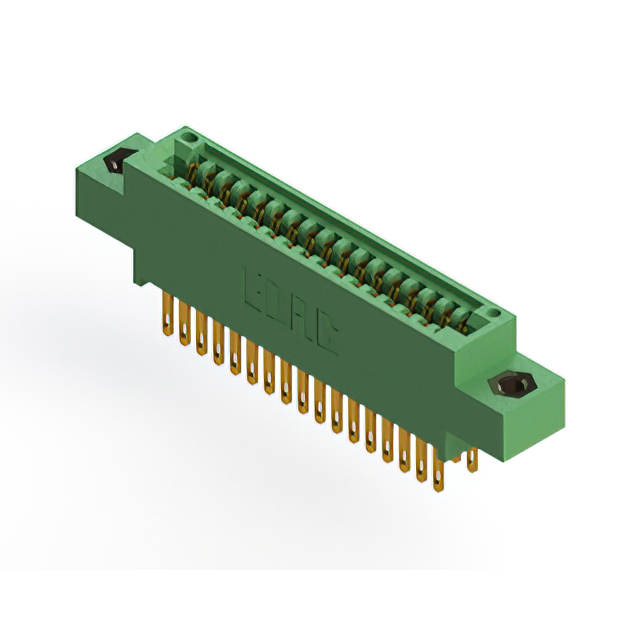

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Cantilever | 0.1 " | 2.54 mm | Non Specified - Single Edge | 34 | 125 °C | -40 C | Gold | Green | 34 | Through Hole | 0.25 Ám | 10 Áin | Single | Copper Alloy | 1 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | ||||||

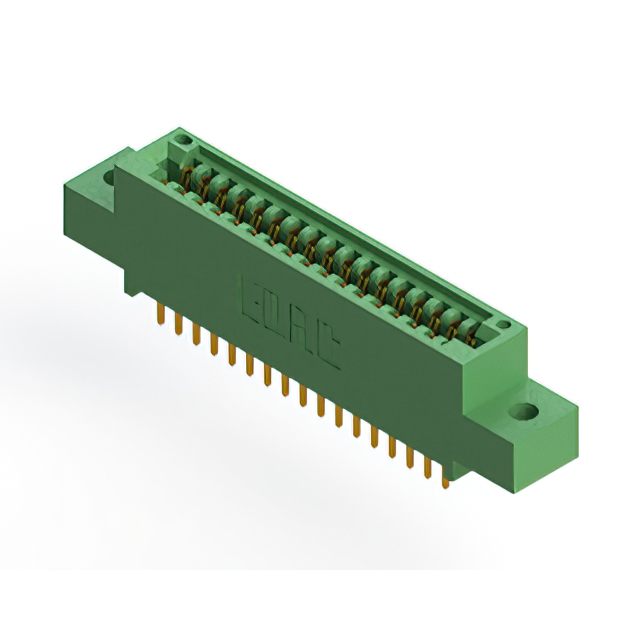

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Cantilever | 0.1 " | 2.54 mm | Non Specified - Single Edge | 34 | 125 °C | -40 C | Gold | Green | 34 | Through Hole | 0.25 Ám | 10 Áin | Single | Copper Alloy | 1 | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm | |||||

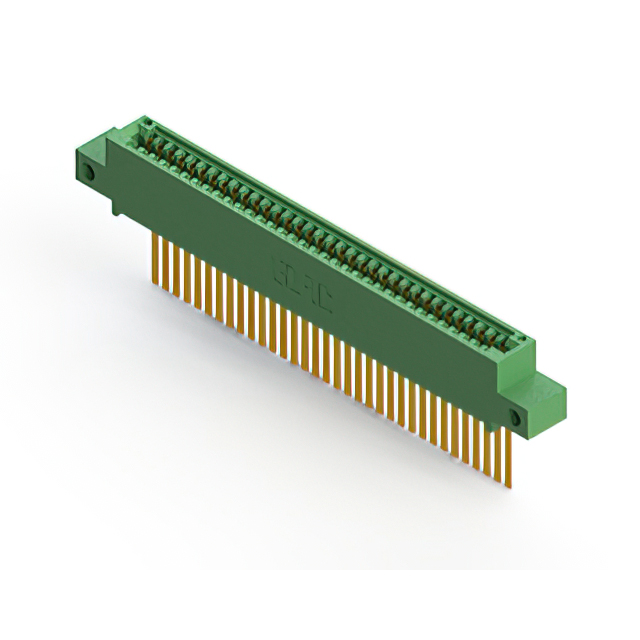

 EDAC Inc. | Diallyl Phthalate (DAP) | Female | Cantilever | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 125 °C | -40 C | Gold | Green | 34 | Through Hole | 0.25 Ám | 10 Áin | Dual | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 17 | 2 | 0.128 " | 3.25 mm | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Female | Cantilever | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 125 °C | -40 C | Gold | Green | 34 | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Dual | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 17 | 2 | Card Extender | ||||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Cantilever | 0.1 " | 2.54 mm | Non Specified - Single Edge | 34 | 125 °C | -40 C | Gold | Green | 34 | Right Angle Through Hole | 0.25 Ám | 10 Áin | Single | Copper Alloy | 1 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening |
