ICE5BR2280 Series
Manufacturer: INFINEON
Beta
⌘K

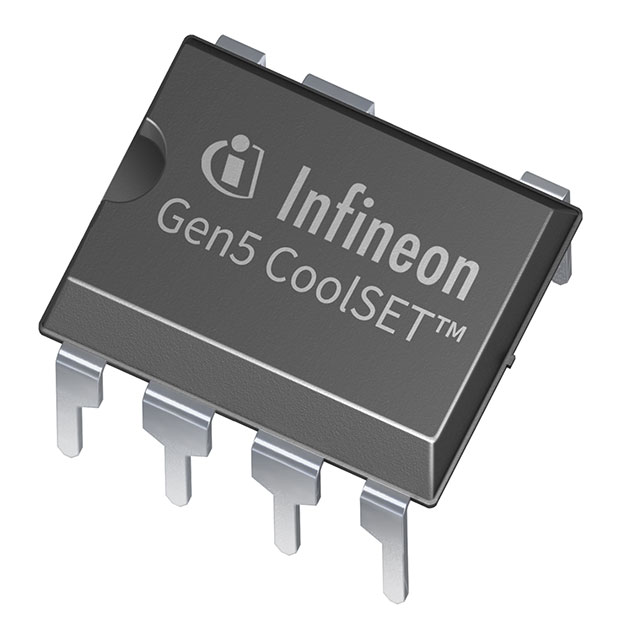

THE ICE5BR2280BZ, PART OF INFINEON’S 5TH GENERATION FIXED FREQUENCY COOLSETTM FAMILY, IS A HIGHLY INTEGRATED CURRENT-MODE CONTROLLER WITH AN 800V COOLMOSTM SUPERJUNCTION MOSFET.
| Part | Internal Switch(s) | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Control Features | Mounting Type | Frequency - Switching | Output Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Breakdown | Package / Case | Package / Case | Package / Case | Power (Watts) | Duty Cycle | Supplier Device Package | Fault Protection | Voltage - Start Up |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 27 V | 10 V | Soft Start | Through Hole | 65 kHz | Non-Isolated | -40 °C | 150 °C | 800 V | 7 Leads 8-DIP | 7.62 mm | 0.3 in | 40 W | 75 % | PG-DIP-7 | Current Limiting Over Load Over Temperature Over Voltage Short Circuit | 16 V |
