680S17W Series
Manufacturer: NorComp Inc.
Beta
⌘K

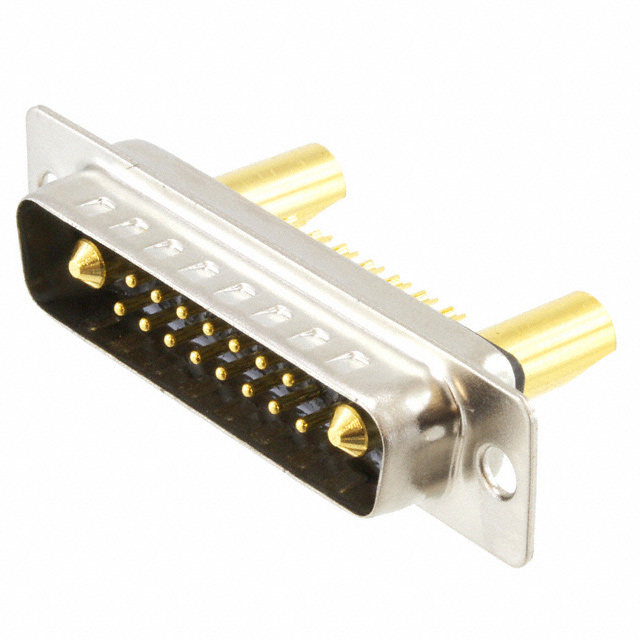

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 680S SERIES, DB-17W2, PLUG, 17 CONTACTS
| Part | Color | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Contact Finish | Shell Material, Finish | Number of Rows [custom] | Contact Finish Thickness | Mounting Type | Flange Feature | Material Flammability Rating | Number of Positions | Current Rating (Amps) | Ingress Protection | Connector Type | Features | Connector Style | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | -55 C | 125 °C | B DB | 17W2 | 3 | Gold | Nickel Plated Steel | 2 | Flash | Panel Mount | Housing/Shell (Unthreaded) | UL94 V-0 | 17 | 3 A 40 A | IP67 - Dust Tight Waterproof | Plug Male Pins | Grounding Indents | Combo D-Sub | Signal and Power |
NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | -55 C | 125 °C | B DB | 17W2 | 3 | Gold | Nickel Plated Steel | 2 | Flash | Panel Mount | Housing/Shell (Unthreaded) | UL94 V-0 | 17 | 3 A 40 A | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Combo D-Sub | Signal and Power |
