MGXW Series

Isolated DC/DC Converters - Through Hole 6-60Vin +/-15or30V 6W 0.2A SIP

Manufacturer: Cosel USA, Inc.

Catalog

Isolated DC/DC Converters - Through Hole 6-60Vin +/-15or30V 6W 0.2A SIP

Catalog

Isolated DC/DC Converters - Through Hole 6-60Vin +/-15or30V 6W 0.2A SIP

Part	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Approval Agency	Current - Output (Max)	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Control Features	Voltage - Input (Min) [Min]	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Output 1	Mounting Type	Voltage - Isolation	Package / Case	Current - Output (Max) [Max]
Cosel USA, Inc. MGXW62412	6 W	Remote On/Off	-40 °C	85 °C	-12 V	CE cURus DEMKO	250 mA	60 V	2	87 %	Active Low Enable	6 V	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	Isolated Module	12 V	Through Hole	1.5 kV	8-SIP Module 7 Leads

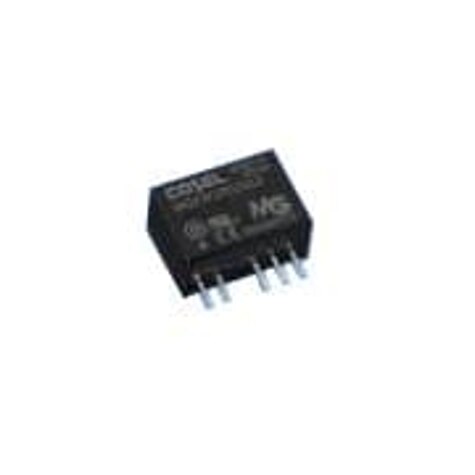

Cosel USA, Inc. MGXW1R52412	1.6 W		-40 °C	85 °C	-12 V	CE cURus DEMKO		60 V	2	80 %		6 V	ITE (Commercial)	0.47 "	8.5 mm	0.67 "	12 mm	0.33 "	17 mm	Isolated Module	12 V	Through Hole	1.5 kV	6-SIP Module 5 Leads	65 mA
Cosel USA, Inc. MGXW1R52415	1.5 W		-40 °C	85 °C	-15 V	CE cURus DEMKO	50 mA	60 V	2	80 %		6 V	ITE (Commercial)	0.47 "	8.5 mm	0.67 "	12 mm	0.33 "	17 mm	Isolated Module	15 V	Through Hole	1.5 kV	6-SIP Module 5 Leads

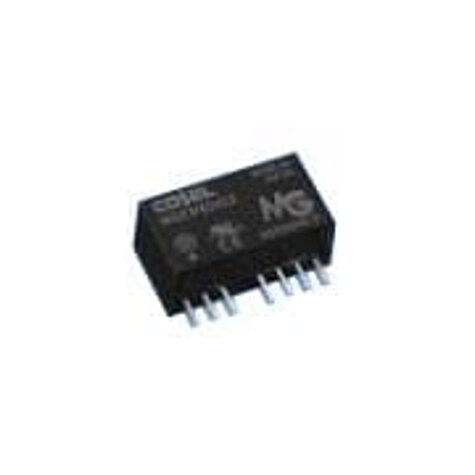

Cosel USA, Inc. MGXW62415	6 W	Remote On/Off	-40 °C	85 °C	-15 V	CE cURus DEMKO		60 V	2	87 %	Active Low Enable	6 V	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	Isolated Module	15 V	Through Hole	1.5 kV	8-SIP Module 7 Leads
