629-3W3 Series
Manufacturer: EDAC Inc.
Beta
⌘K

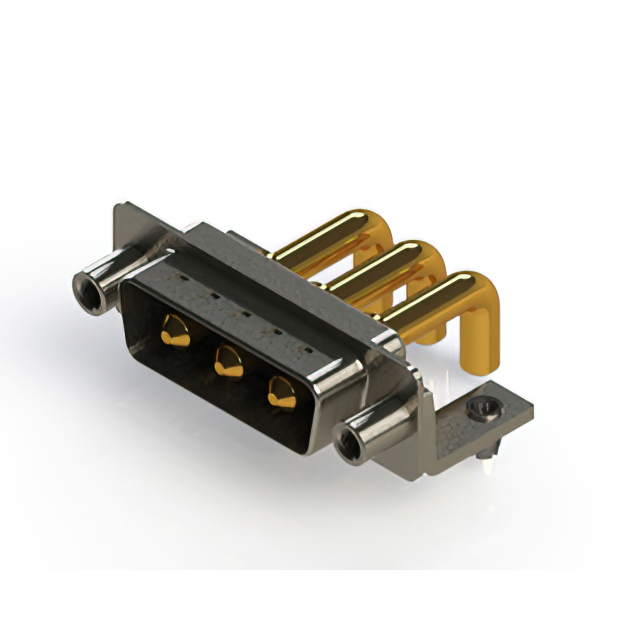

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DA-3W3, PLUG, 3 CONTACTS, 3 COAX, SOLDER
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Color | Shell Size, Connector Layout | Contact Finish | Features | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination | Backset Spacing | Backset Spacing | Mounting Type | Flange Feature | Flange Feature | Number of Rows | Material Flammability Rating | Number of Positions | Connector Type | Connector Style | Current Rating (Amps) | Shell Material, Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | 2 (DA A) - 3W3 | Gold | Grounding Indents Mounting Brackets | 30 Áin | 0.76 Ám | Coax | Solder | 9.4 mm | 0.37 in | Right Angle Through Hole | Housing/Shell | 4-40 | 1 | UL94 V-0 | 3 | Plug Male Pins | Combo D-Sub | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | 2 (DA A) - 3W3 | Gold | 30 Áin | 0.76 Ám | Power | Solder | 13.2 mm | 0.52 " | Right Angle Through Hole | Housing/Shell | 4-40 | 1 | UL94 V-0 | 3 | Plug Male Pins | Combo D-Sub | 40 A | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | 2 (DA A) - 3W3 | Gold | Grounding Indents Mounting Brackets | 30 Áin | 0.76 Ám | Power | Solder | 13.2 mm | 0.52 " | Right Angle Through Hole | Housing/Shell | 4-40 | 1 | UL94 V-0 | 3 | Plug Male Pins | Combo D-Sub | 30 A | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | 2 (DA A) - 3W3 | Gold | Grounding Indents Mounting Brackets | 30 Áin | 0.76 Ám | Coax | Solder | 9.4 mm | 0.37 in | Right Angle Through Hole | M3 | 1 | UL94 V-0 | 3 | Plug Male Pins | Combo D-Sub | Nickel Plated Steel | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | 2 (DA A) - 3W3 | Gold | Grounding Indents Shielded | 30 Áin | 0.76 Ám | Power | Solder | 13.2 mm | 0.52 " | Right Angle Through Hole | Housing/Shell (Unthreaded) | 1 | UL94 V-0 | 3 | Plug Male Pins | Combo D-Sub | 10 A | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | 2 (DA A) - 3W3 | Gold | Grounding Indents Mounting Brackets | Power | Solder | 13.2 mm | 0.52 " | Right Angle Through Hole | M3 | 1 | UL94 V-0 | 3 | Plug Male Pins | Combo D-Sub | 30 A | Flash | ||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | 2 (DA A) - 3W3 | Gold | Grounding Indents Mounting Brackets | Power | Solder | 13.2 mm | 0.52 " | Right Angle Through Hole | Housing/Shell (M3) | 1 | UL94 V-0 | 3 | Plug Male Pins | Combo D-Sub | 30 A | Nickel Plated Steel | Flash | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | 2 (DA A) - 3W3 | Gold | Grounding Indents Mounting Brackets | Power | Solder | 13.2 mm | 0.52 " | Right Angle Through Hole | M3 | 1 | UL94 V-0 | 3 | Plug Male Pins | Combo D-Sub | 30 A | Flash | ||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | 2 (DA A) - 3W3 | Gold | Board Lock Grounding Indents Mounting Brackets | 30 Áin | 0.76 Ám | Power | Solder | 13.2 mm | 0.52 " | Right Angle Through Hole | M3 | 1 | UL94 V-0 | 3 | Plug Male Pins | Combo D-Sub | 30 A | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | 2 (DA A) - 3W3 | Gold | Board Lock Grounding Indents Mounting Brackets | Power | Solder | 13.2 mm | 0.52 " | Right Angle Through Hole | Housing/Shell (M3) | 1 | UL94 V-0 | 3 | Plug Male Pins | Combo D-Sub | 20 A | Flash |
