MRB24B Series

Catalog

SWITCH ROTARY 3POS 0.4VA 28V

Part	Panel Cutout Dimensions [diameter]	Contact Finish	Depth Behind Panel [custom]	Index Stops	Actuator Type	Angle of Throw	Circuit per Deck	Voltage Rating - AC	Features	Number of Decks [custom]	Contact Timing	Number of Poles per Deck	Contact Material	Actuator Length [x]	Termination Style	Current Rating (Amps)	Voltage Rating - DC	Mounting Type

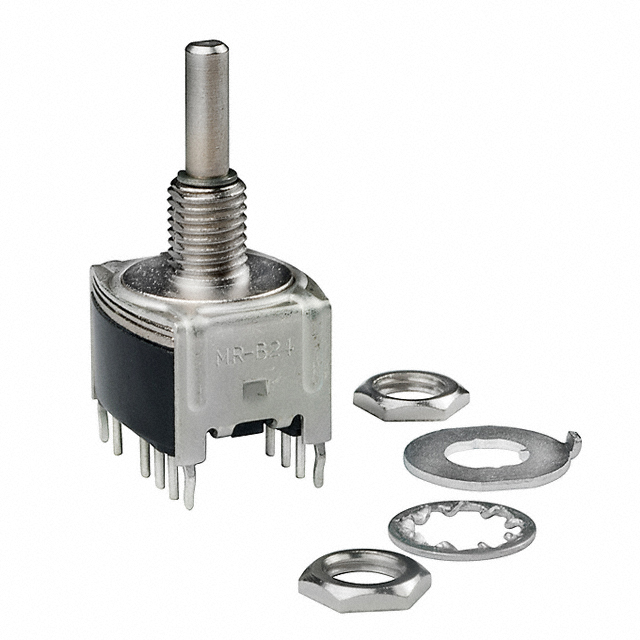

NKK Switches MRB24B	0.25 in	Gold	11 mm	Fixed	Flatted (3.17mm Dia)	45 °	DP3T	28 V	Sealed - Fully	1	Non-Shorting (BBM)	2	Beryllium Copper	10 mm	PC Pin	0.4 VA	28 V	Panel Mount Through Hole
NKK Switches MRB24B-CB	0.25 in	Gold	11 mm	Fixed	Knob	45 °	DP3T	28 V	Sealed - Fully	1	Non-Shorting (BBM)	2	Beryllium Copper	15.8 mm	PC Pin	0.4 VA	28 V	Panel Mount Through Hole
NKK Switches MRB24B-A	0.25 in	Gold	11 mm	Fixed	Knob	45 °	DP3T	28 V	Sealed - Fully	1	Non-Shorting (BBM)	2	Beryllium Copper	13 mm	PC Pin	0.4 VA	28 V	Panel Mount Through Hole
NKK Switches MRB24B-CG	0.25 in	Gold	11 mm	Fixed	Knob	45 °	DP3T	28 V	Sealed - Fully	1	Non-Shorting (BBM)	2	Beryllium Copper	15.8 mm	PC Pin	0.4 VA	28 V	Panel Mount Through Hole
NKK Switches MRB24B-BC	0.25 in	Gold	11 mm	Fixed	Knob	45 °	DP3T	28 V	Sealed - Fully	1	Non-Shorting (BBM)	2	Beryllium Copper	14.3 mm	PC Pin	0.4 VA	28 V	Panel Mount Through Hole

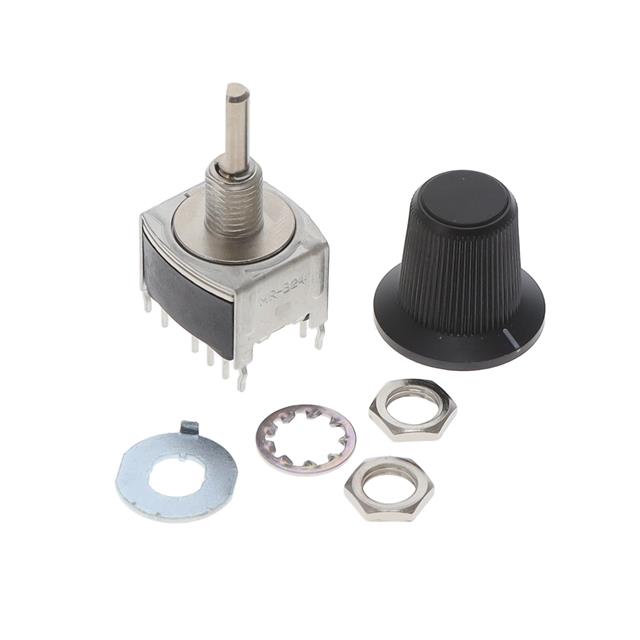

NKK Switches MRB24B-CA	0.25 in	Gold	11 mm	Fixed	Knob	45 °	DP3T	28 V	Sealed - Fully	1	Non-Shorting (BBM)	2	Beryllium Copper	15.8 mm	PC Pin	0.4 VA	28 V	Panel Mount Through Hole
