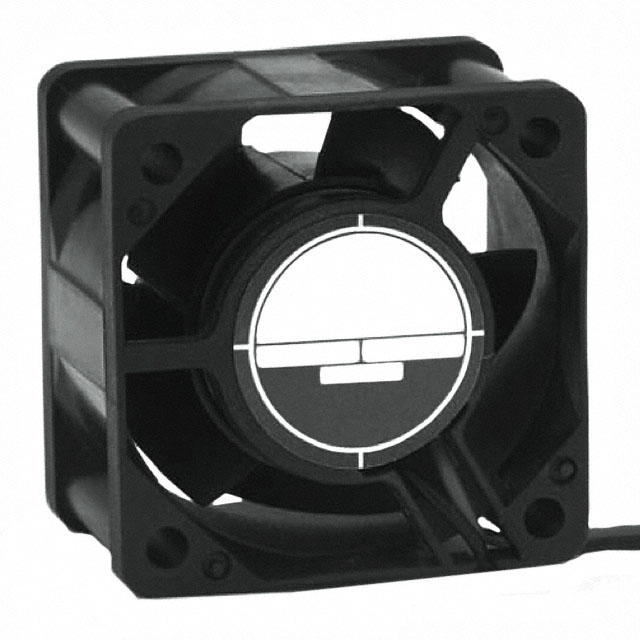

OD4028 Series

Catalog

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 28 MM, BALL BEARING, 12 CFM

Part	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Approval Agency	RPM	Bearing Type	Voltage - Rated	Width [x]	Fan Type	Termination	Noise	Static Pressure	Static Pressure	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Current Rating (Amps)	Features	Air Flow
ORION FANS OD4028-24HB	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	45 °C 60000 Hrs	10 VDC	27 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	8800 RPM	Ball	24 VDC	28 mm	Tubeaxial	2 Wire Leads	37 dB	79.7 Pa	0.32 in H2O	0.336 mł/min	12 CFM	80 °C	-20 ░C	40 mm	40 mm
ORION FANS OD4028-12HBXC10A	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	40 °C 50000 Hrs	10.8 VDC	13.2 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	16000 RPM	Ball	12 VDC	28 mm	Tubeaxial	4 Wire Leads	57 dB	398.6 Pa	1.6 in H2O	0.742 m³/min	26.5 CFM	70 °C	-10 °C	40 mm	40 mm	800 mA	Auto Restart PWM Control Speed Sensor (Tach)
ORION FANS OD4028-12HS01A	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	30000 Hrs	7 V	14 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	8800 RPM	Sleeve	12 VDC	28 mm	Tubeaxial	3 Wire Leads	37 dB	79.7 Pa	0.32 in H2O	0.336 mł/min	12 CFM	50 °C	-10 °C	40 mm	40 mm	0.2 A	Speed Sensor (Tach)
ORION FANS OD4028-24MB01A	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	45 °C 60000 Hrs	10 VDC	27 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	8000 RPM	Ball	24 VDC	28 mm	Tubeaxial	3 Wire Leads	35 dB	62.3 Pa	0.25 in H2O			80 °C	-20 ░C	40 mm	40 mm	120 mA	Speed Sensor (Tach)
ORION FANS OD4028-12HSS02A	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	30000 Hrs	7 V	14 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	8800 RPM	Sealed Sleeve	12 VDC	28 mm	Tubeaxial	3 Wire Leads	37 dB	79.7 Pa	0.32 in H2O	0.336 mł/min	12 CFM	50 °C	-10 °C	40 mm	40 mm	0.2 A	Locked Rotor Sensor
ORION FANS OD4028-12MS	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	30000 Hrs	7 V	14 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	8000 RPM	Sleeve	12 VDC	28 mm	Tubeaxial	2 Wire Leads	35 dB	62.3 Pa	0.25 in H2O	0.308 m³/min	11 CFM	50 °C	-10 °C	40 mm	40 mm	0.18 A
ORION FANS OD4028-24MB	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	45 °C 60000 Hrs	10 VDC	27 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	8000 RPM	Ball	24 VDC	28 mm	Tubeaxial	2 Wire Leads	35 dB	62.3 Pa	0.25 in H2O			80 °C	-20 ░C	40 mm	40 mm	120 mA
ORION FANS OD4028-12LB	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	45 °C 60000 Hrs	7 V	14 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	5000 RPM	Ball	12 VDC	28 mm	Tubeaxial	2 Wire Leads	25 dB(A)	24.9 Pa	0.1 in H2O	0.196 mł/min	7 CFM	80 °C	-20 ░C	40 mm	40 mm	120 mA		7 CFM
ORION FANS OD4028-12LBXC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)				Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV		Ball	12 VDC	28 mm	Tubeaxial	2 Wire Leads								40 mm	40 mm		Auto Restart
ORION FANS OD4028-12MBXC02A	Fiberglass Reinforced Polybutylene Terephthalate (PBT)				Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV		Ball	12 VDC	28 mm	Tubeaxial	3 Wire Leads								40 mm	40 mm		Auto Restart Locked Rotor Sensor
