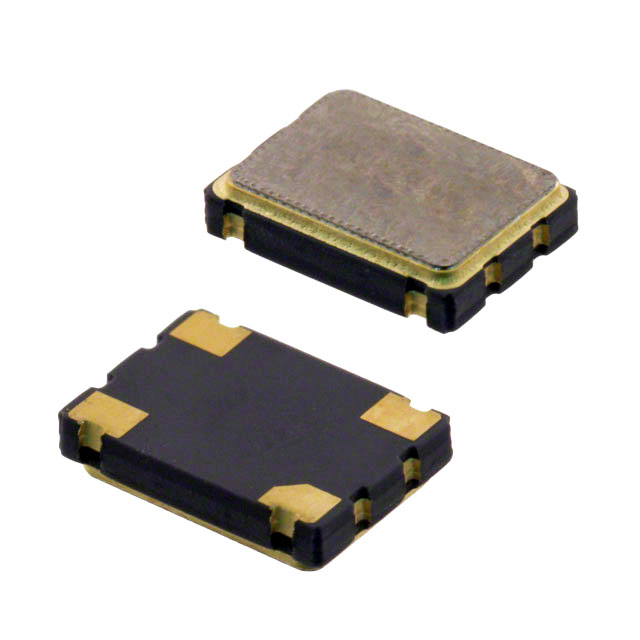

ASV Series
Manufacturer: Abracon LLC
Beta
⌘K
STANDARD CLOCK OSCILLATORS CRYSTAL OSCILLATOR 7050 4-SMD 16MHZ +/-100PPM -20°C ~ 70°C CMOS 3.3V
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Function | Operating Temperature [Min] | Operating Temperature [Max] | Frequency | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Supply (Max) [Max] | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Output | Frequency Stability | Mounting Type | Package / Case | Base Resonator [custom] | Voltage - Supply | Current - Supply (Disable) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 1.8 mm | 0.071 in | Enable/Disable | -20 ░C | 70 °C | 16 MHz | XO (Standard) | 5.08 mm | 7 mm | 0.276 " | 0.2 in | 15 mA | 7 | 4-SMD | 5.08 | HCMOS | 100 ppm | Surface Mount | 4-SMD No Lead | Crystal | 3.3 V | |
 Abracon LLC | 1.8 mm | 0.071 in | Enable/Disable | -20 ░C | 70 °C | 25 MHz | XO (Standard) | 5.08 mm | 7 mm | 0.276 " | 0.2 in | 15 mA | 7 | 4-SMD | 5.08 | HCMOS | 20 ppm | Surface Mount | 4-SMD No Lead | Crystal | 3.3 V | 10 µA |
Abracon LLC | 1.8 mm | 0.071 in | Enable/Disable | -20 ░C | 70 °C | 11.0592 MHz | XO (Standard) | 5.08 mm | 7 mm | 0.276 " | 0.2 in | 10 mA | 7 | 4-SMD | 5.08 | HCMOS | 20 ppm | Surface Mount | 4-SMD No Lead | Crystal | 3.3 V | |
Abracon LLC | 1.8 mm | 0.071 in | Enable/Disable | -20 ░C | 70 °C | 30 MHz | XO (Standard) | 5.08 mm | 7 mm | 0.276 " | 0.2 in | 20 mA | 7 | 4-SMD | 5.08 | HCMOS | 100 ppm | Surface Mount | 4-SMD No Lead | Crystal | 3.3 V | 10 µA |
