RLC73 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

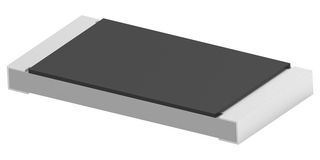

SMD CURRENT SENSE RESISTOR, 0.536 OHM, RLC73 SERIES, 2512 [6432 METRIC], 1 W, ± 1%, THICK FILM

Part	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Terminations [custom]	Composition	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Temperature Coefficient	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Resistance	Supplier Device Package	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max)
TE Connectivity AMP Connectors RLC73K3AR536FTDG	1 %	0.7 mm	0.028 "	2	Thick Film	0.25 in	0.122 in	6.35 mm	3.1 mm	1 W	200 ppm/°C	Current Sense	155 C	-55 C	6332 Metric	2512	536 mOhms	2512

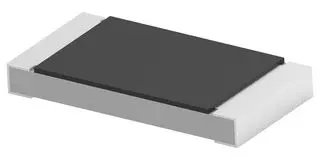

TE Connectivity AMP Connectors RLC73K2HR174FTE	1 %	0.75 mm	0.03 "	2	Thick Film	0.197 in	0.098 in	5 mm	2.5 mm	0.75 W	200 ppm/°C	Current Sense	155 C	-55 C		2010 (5025 Metric)	174 mOhms	2010	3/4W
TE Connectivity AMP Connectors RLC73K3AR196FTDG	1 %			2	Thick Film	0.25 in	0.122 in	6.35 mm	3.1 mm	1 W	200 ppm/°C	Current Sense	155 C	-55 C	6332 Metric	2512 2512 (6432 Metric)	196 mOhms	2512		0.033 in	0.84 mm
TE Connectivity AMP Connectors RLC73K3AR931FTDG	1 %			2	Thick Film	0.25 in	0.122 in	6.35 mm	3.1 mm	1 W	200 ppm/°C	Current Sense	155 C	-55 C	6332 Metric	2512	931 mOhms	2512		0.033 in	0.84 mm
TE Connectivity AMP Connectors RLC73K3AR576FTDG	1 %	0.7 mm	0.028 "	2	Thick Film	0.25 in	0.122 in	6.35 mm	3.1 mm	1 W	200 ppm/°C	Current Sense	155 C	-55 C	6332 Metric	2512	576 mOhms	2512
TE Connectivity AMP Connectors RLC73K3AR221FTDG	1 %			2	Thick Film	0.25 in	0.122 in	6.35 mm	3.1 mm	1 W	200 ppm/°C	Current Sense	155 C	-55 C	6332 Metric	2512	221 mOhms	2512		0.033 in	0.84 mm
TE Connectivity AMP Connectors RLC73K3AR562FTDG	1 %	0.7 mm	0.028 "	2	Thick Film	0.25 in	0.122 in	6.35 mm	3.1 mm	1 W	200 ppm/°C	Current Sense	155 C	-55 C	6332 Metric	2512		2512
TE Connectivity AMP Connectors RLC73K3AR976FTDG	1 %			2	Thick Film	0.25 in	0.122 in	6.35 mm	3.1 mm	1 W	200 ppm/°C	Current Sense	155 C	-55 C	6332 Metric	2512	976 mOhms	2512		0.033 in	0.84 mm
TE Connectivity AMP Connectors RLC73K3AR422FTDG	1 %	0.7 mm	0.028 "	2	Thick Film	0.25 in	0.122 in	6.35 mm	3.1 mm	1 W	200 ppm/°C	Current Sense	155 C	-55 C	6332 Metric	2512	422 mOhms	2512
TE Connectivity AMP Connectors RLC73K3AR118FTDG	1 %			2	Thick Film	0.25 in	0.122 in	6.35 mm	3.1 mm	1 W	200 ppm/°C	Current Sense	155 C	-55 C	6332 Metric	2512	118 mOhms	2512		0.033 in	0.84 mm
