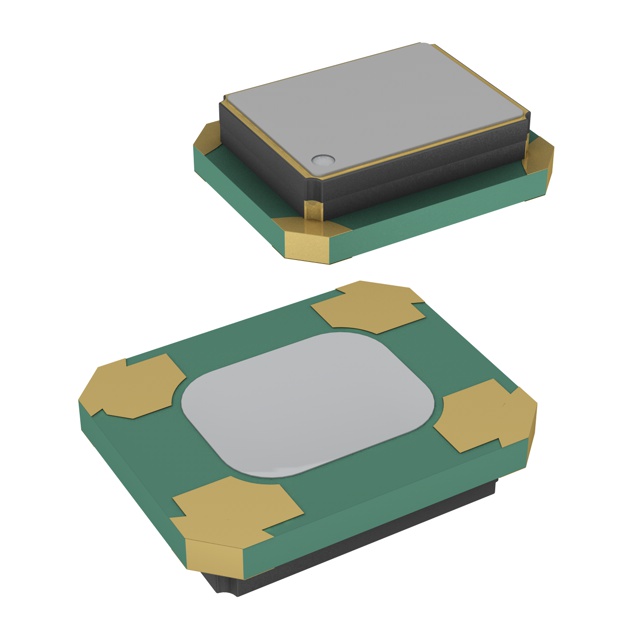

KC2520K Series

Catalog

STANDARD CLOCK OSCILLATORS 16.3840MHZ CLOCK OSC IL CMOS

Part	Current - Supply (Disable) (Max)	Package / Case	Frequency Stability	Output	Function	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max)	Base Resonator [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency
KYOCERA AVX KC2520K16.3840C1GE00	5 µA	4-SMD No Lead	50 ppm	CMOS	Standby (Power Down)	XO (Standard)	3.63 V	1.6 V	Surface Mount	3.5 mA	85 °C	-40 C	0.031 in	0.8 mm	Crystal	2.5 mm	0.079 in	0.098 in	2 mm	16.384 MHz
KYOCERA AVX KC2520K1.84320C1GE00		4-SMD No Lead	50 ppm	CMOS	Standby (Power Down)	XO (Standard)	3.63 V	1.6 V	Surface Mount	3.5 mA	85 °C	-40 C	0.031 in	0.8 mm	Crystal	2.5 mm	0.079 in	0.098 in	2 mm	1.8432 MHz
KYOCERA AVX KC2520K8.00000C1GE00		4-SMD No Lead	50 ppm	CMOS	Standby (Power Down)	XO (Standard)	3.63 V	1.6 V	Surface Mount	6 mA	85 °C	-40 C	0.031 in	0.8 mm	Crystal	2.5 mm	0.079 in	0.098 in	2 mm	8 MHz
KYOCERA AVX KC2520K48.0000C1GE00		4-SMD No Lead	50 ppm	CMOS	Standby (Power Down)	XO (Standard)	3.63 V	1.6 V	Surface Mount	6 mA	85 °C	-40 C	0.031 in	0.8 mm	Crystal	2.5 mm	0.079 in	0.098 in	2 mm	48 MHz
KYOCERA AVX KC2520K20.0000C1GE00		4-SMD No Lead	50 ppm	CMOS	Standby (Power Down)	XO (Standard)	3.63 V	1.6 V	Surface Mount	6 mA	85 °C	-40 C	0.031 in	0.8 mm	Crystal	2.5 mm	0.079 in	0.098 in	2 mm	20 MHz
KYOCERA AVX KC2520K11.2896C1GE00		4-SMD No Lead	50 ppm	CMOS	Standby (Power Down)	XO (Standard)	3.63 V	1.6 V	Surface Mount	3.5 mA	85 °C	-40 C	0.031 in	0.8 mm	Crystal	2.5 mm	0.079 in	0.098 in	2 mm	11.2896 MHz
