AA Series
Manufacturer: YAGEO
Beta
⌘K
THICK FILM RESISTORS - SMD 8.2 MOHMS 750 MW 2010 5 % AEC-Q200
| Part | Number of Terminations [custom] | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Ratings | Composition | Tolerance | Package / Case | Features | Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Temperature Coefficient | Power (Watts) | Power (Watts) | Power (Watts) | Supplier Device Package | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | 2 | 2010 | 0.026 in | 0.65 mm | AEC-Q200 | Thick Film | 5 % | 2010 (5025 Metric) | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 8.2 MOhms | 155 C | -55 C | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 150 ppm/°C | 3/4W | 0.75 W | |||
 YAGEO | 2 | 0.015 " | 0.37 mm | Thick Film | 5 % | 0402 (1005 Metric) | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 6.8 kOhms | 155 C | -55 C | 1 mm | 0.02 in | 0.039 " | 0.5 mm | 150 ppm/°C | 0.063 W | 0.0625 W | 0402 | ||||
 YAGEO | 2 | 0.015 " | 0.37 mm | AEC-Q200 | Thick Film | 1 % | 0402 (1005 Metric) | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 68 Ohms | 155 C | -55 C | 1 mm | 0.02 in | 0.039 " | 0.5 mm | 150 ppm/°C | 0.063 W | 0.0625 W | 0402 | |||
YAGEO | 2 | 0.015 " | 0.37 mm | AEC-Q200 | Thick Film | 1 % | 0402 (1005 Metric) | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 182 kOhms | 155 C | -55 C | 1 mm | 0.02 in | 0.039 " | 0.5 mm | 150 ppm/°C | 0.063 W | 0.0625 W | 0402 | |||
 YAGEO | 2 | 0.024 in | 0.6 mm | AEC-Q200 | Thick Film | 1 % | 0805 | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 8.25 Ohms | 155 C | -55 C | 2 mm | 0.049 " | 0.079 in | 1.25 mm | 200 ppm/°C | 0.125 W | 0.125 W | 0805 | |||
YAGEO | 2 | 0.024 in | 0.6 mm | AEC-Q200 | Thick Film | 1 % | 0805 | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 6.8 Ohms | 155 C | -55 C | 2 mm | 0.049 " | 0.079 in | 1.25 mm | 200 ppm/°C | 0.125 W | 0.125 W | 0805 | |||
YAGEO | 2 | 0.015 " | 0.37 mm | AEC-Q200 | Thick Film | 5 % | 0402 (1005 Metric) | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 220000 Ohms | 155 C | -55 C | 1 mm | 0.02 in | 0.039 " | 0.5 mm | 150 ppm/°C | 0.063 W | 0.0625 W | 0402 | |||

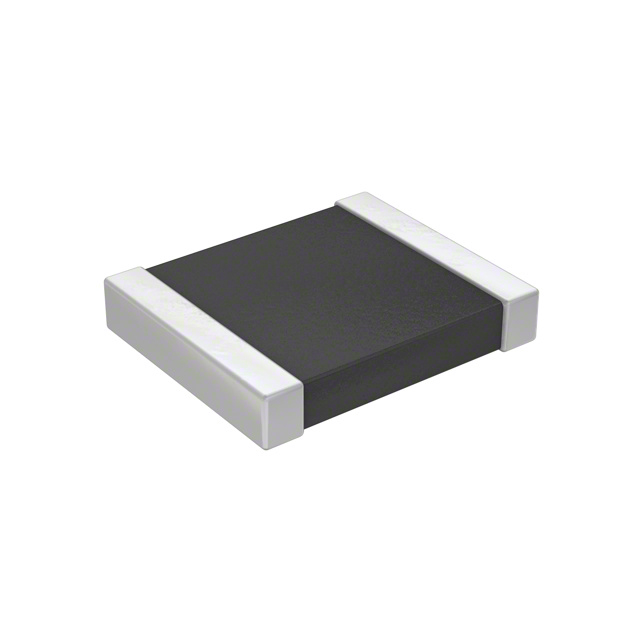

 YAGEO | 2 | 0.024 in | 0.6 mm | AEC-Q200 | Thick Film | 5 % | 1210 | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 51 kOhms | 155 C | -55 C | 3.1 mm | 0.102 in | 0.122 " | 2.6 mm | 150 ppm/°C | 0.5 W | 0.5 W | 1210 | 3225 Metric | ||
YAGEO | 2 | 0.024 in | 0.6 mm | AEC-Q200 | Thick Film | 1 % | 0805 | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 10.7 Ohms | 155 C | -55 C | 2 mm | 0.049 " | 0.079 in | 1.25 mm | 150 ppm/°C | 0.125 W | 0.125 W | 0805 | |||
 YAGEO | 2 | 2010 | 0.026 in | 0.65 mm | AEC-Q200 | Thick Film | 1 % | 2010 (5025 Metric) | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 1.69 kOhms | 155 C | -55 C | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 150 ppm/°C | 3/4W | 0.75 W |
