TS2P9F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

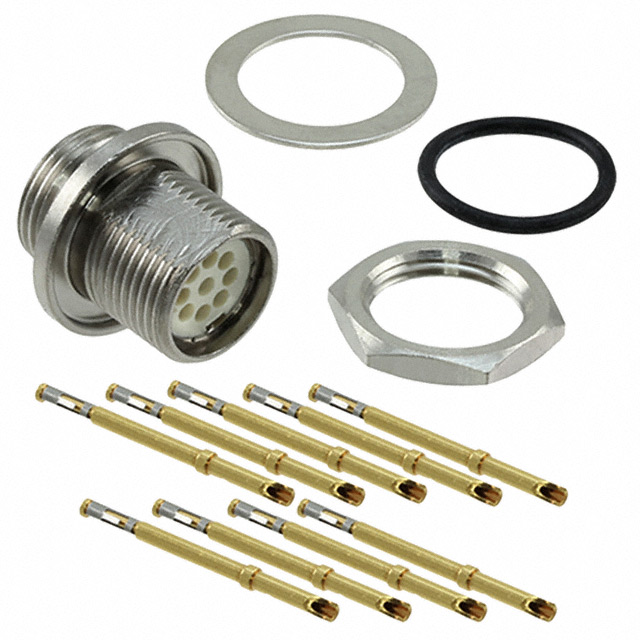

CONN RCPT FMALE 9POS GOLD CRIMP
| Part | Color | Ingress Protection | Contact Finish - Mating | Insert Material | Fastening Type | Mounting Type | Primary Material | Applications | Contact Material | Shell Material | Orientation | Voltage Rating | Shell Finish | Mounting Feature | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shielding | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Silver | IP66 IP67 IP68 | Gold | Liquid Crystal Polymer (LCP) | Threaded | Panel Mount | Metal | Agriculture Audio General Medical Testing Equipment & Measurement | Copper Alloy | Copper Alloy | Keyed | 30 VAC | Electroless Nickel | Bulkhead - Rear Side Nut | 9 | -40 C | 135 °C | Receptacle Female Sockets | Shielded | Crimp Solder Cup |
 SWITCHCRAFT/CONXALL | Silver | IP66 IP67 IP68 | Gold | Liquid Crystal Polymer (LCP) | Threaded | Panel Mount Through Hole | Metal | Agriculture Audio General Medical Testing Equipment & Measurement | Copper Alloy | Copper Alloy | Keyed | 30 VAC | Electroless Nickel | Bulkhead - Front Side Nut | 9 | -40 C | 135 °C | Receptacle Female Sockets | Shielded | Solder |
