Potter & Brumfield T9A Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GEN PURPOSE SPDT 20A 12V

Part	Coil Resistance	Termination Style	Coil Voltage	Operate Time	Load - Max Switching	Mounting Type	Contact Material	Contact Form	Must Release Voltage	Release Time	Switching Voltage [Max]	Must Operate Voltage	Coil Type	Coil Current	Seal Rating	Operating Temperature [Min]	Operating Temperature [Max]	Coil Insulation	Relay Type	Contact Rating (Current)	Load - Max Switching [Max]	Termination Style

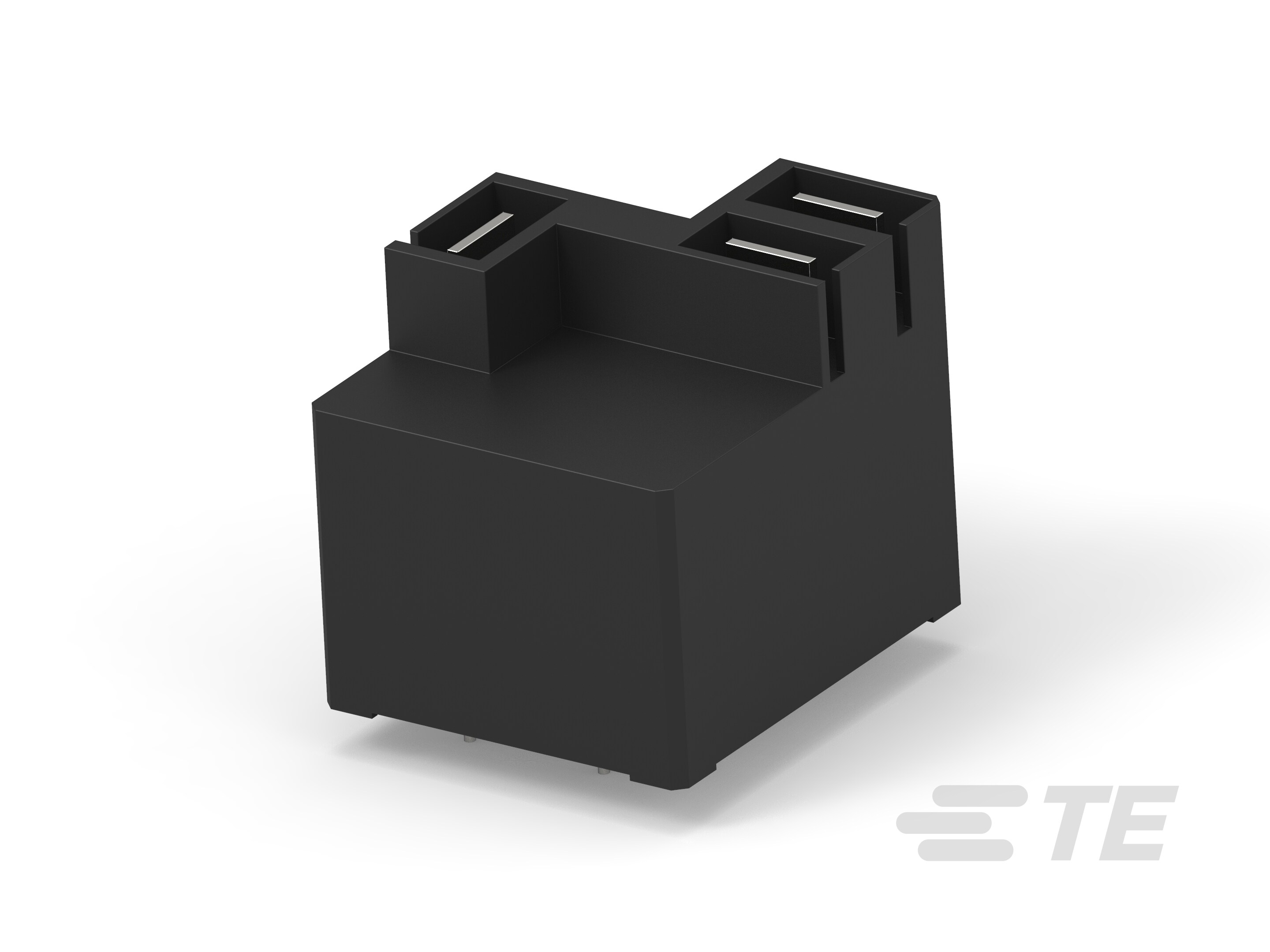

TE Connectivity AMP Connectors T9AS5L22-12	155 Ohms	PC Pin Quick Connect - 0.250" (6.3mm)	12 VDC	15 ms	5540 VA	Through Hole	Silver Cadmium Oxide (AgCdO)	SPDT (1 Form C)	1.2 VDC	15 ms	277 VAC	9 VDC	Non Latching	0.075 A	Sealed - Fully	-55 C	85 °C	Class F	General Purpose	20 A

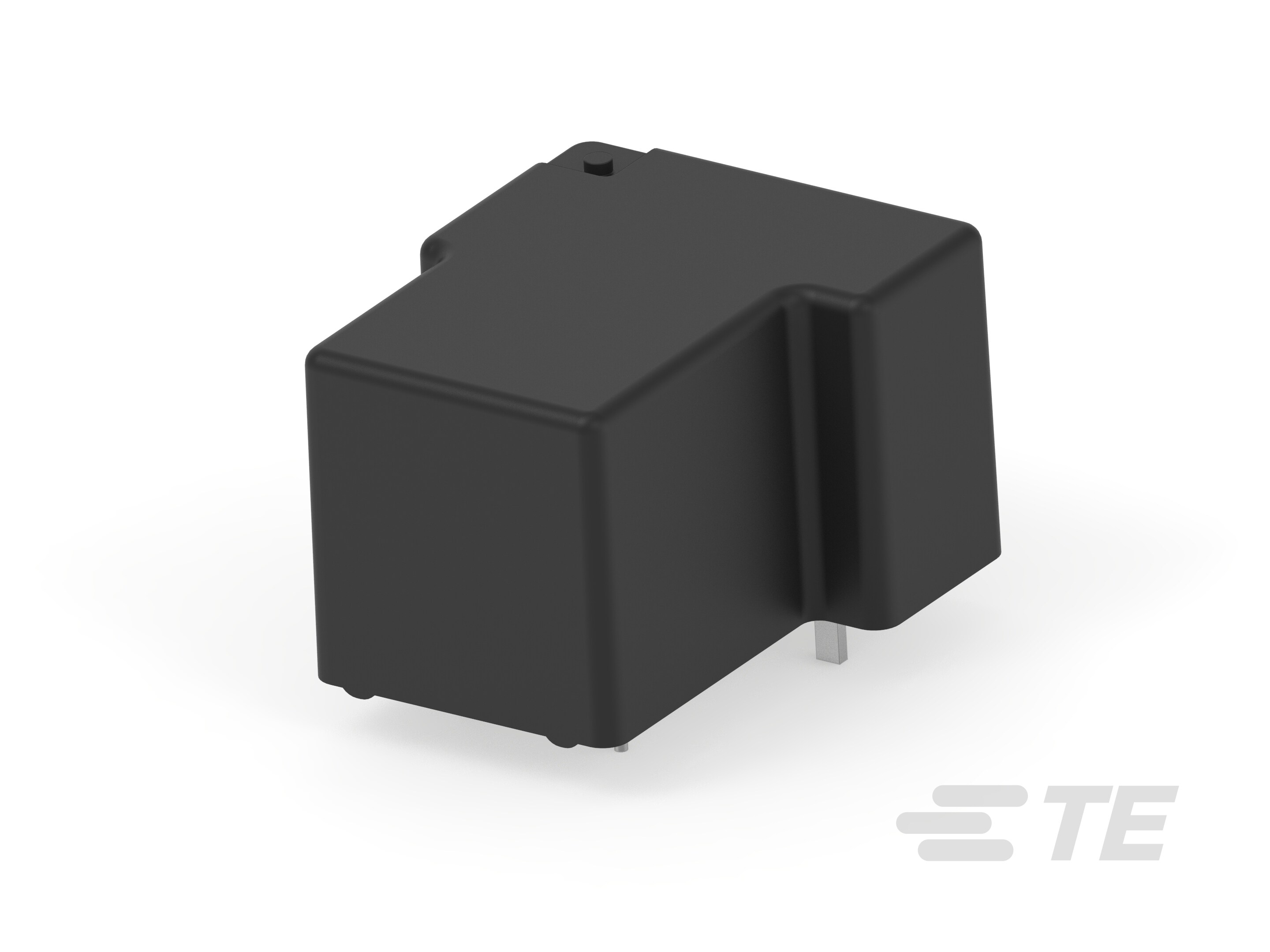

TE Connectivity AMP Connectors T9AV1D12-9		PC Pin	9 VDC	15 ms		Through Hole	Silver Cadmium Oxide (AgCdO)	SPST-NO (1 Form A)	0.9 VDC	15 ms	277 VAC	6.75 VDC	Non Latching		Sealed - Flux Protection	-55 C	85 °C	Class F	General Purpose	30 A	8310 VA
TE Connectivity AMP Connectors T9AP1D52-24	576 Ohms	Quick Connect	24 VDC	15 ms		Chassis Mount	Silver Cadmium Oxide (AgCdO)	SPST-NO (1 Form A)	2.4 VDC	15 ms	277 VAC	18 VDC	Non Latching	41.7 mA		-55 C	85 °C	Class F	General Purpose	30 A	8310 VA	0.187 in 0.25 in

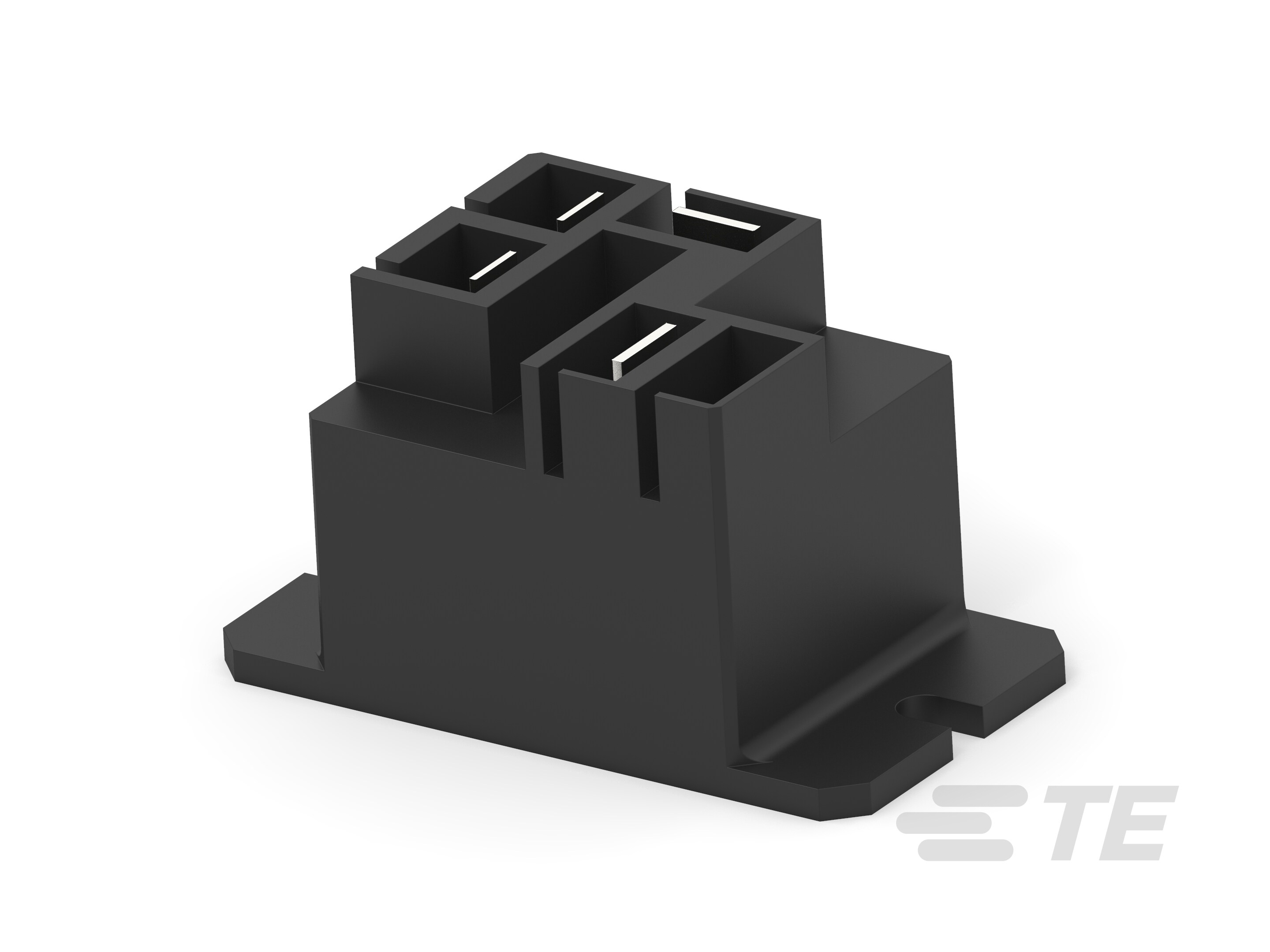

TE Connectivity AMP Connectors T9AP1D54-12
TE Connectivity AMP Connectors T9AS5D22-5	25 Ohms	PC Pin Quick Connect - 0.250" (6.3mm)	5 VDC	15 ms	5540 VA	Through Hole	Silver Cadmium Oxide (AgCdO)	SPDT (1 Form C)	0.5 VDC	15 ms	277 VAC	3.75 VDC	Non Latching	200 mA	Sealed - Fully	-55 C	85 °C	Class F	General Purpose	20 A
TE Connectivity AMP Connectors T9AV1L12-12		PC Pin	12 VDC	15 ms		Through Hole	Silver Cadmium Oxide (AgCdO)	SPST-NO (1 Form A)	1.2 VDC	15 ms	277 VAC	9 VDC	Non Latching	77.4 mA	Sealed - Flux Protection	-55 C	85 °C	Class F	General Purpose	30 A	8310 VA
TE Connectivity AMP Connectors T9AS5D12-48	2.3 kOhms	PC Pin	48 VDC	15 ms	5540 VA	Through Hole	Silver Cadmium Oxide (AgCdO)	SPDT (1 Form C)	4.8 VDC	15 ms	277 VAC	36 VDC	Non Latching	21 mA	Sealed - Fully	-55 C	85 °C	Class F	General Purpose	20 A
TE Connectivity AMP Connectors T9AP5D52-48	2.3 kOhms	Quick Connect	48 VDC	15 ms	5540 VA	Chassis Mount	Silver Cadmium Oxide (AgCdO)	SPDT (1 Form C)	4.8 VDC	15 ms	277 VAC	36 VDC	Non Latching	21 mA		-55 C	85 °C	Class F	General Purpose	20 A		0.187 in 0.25 in

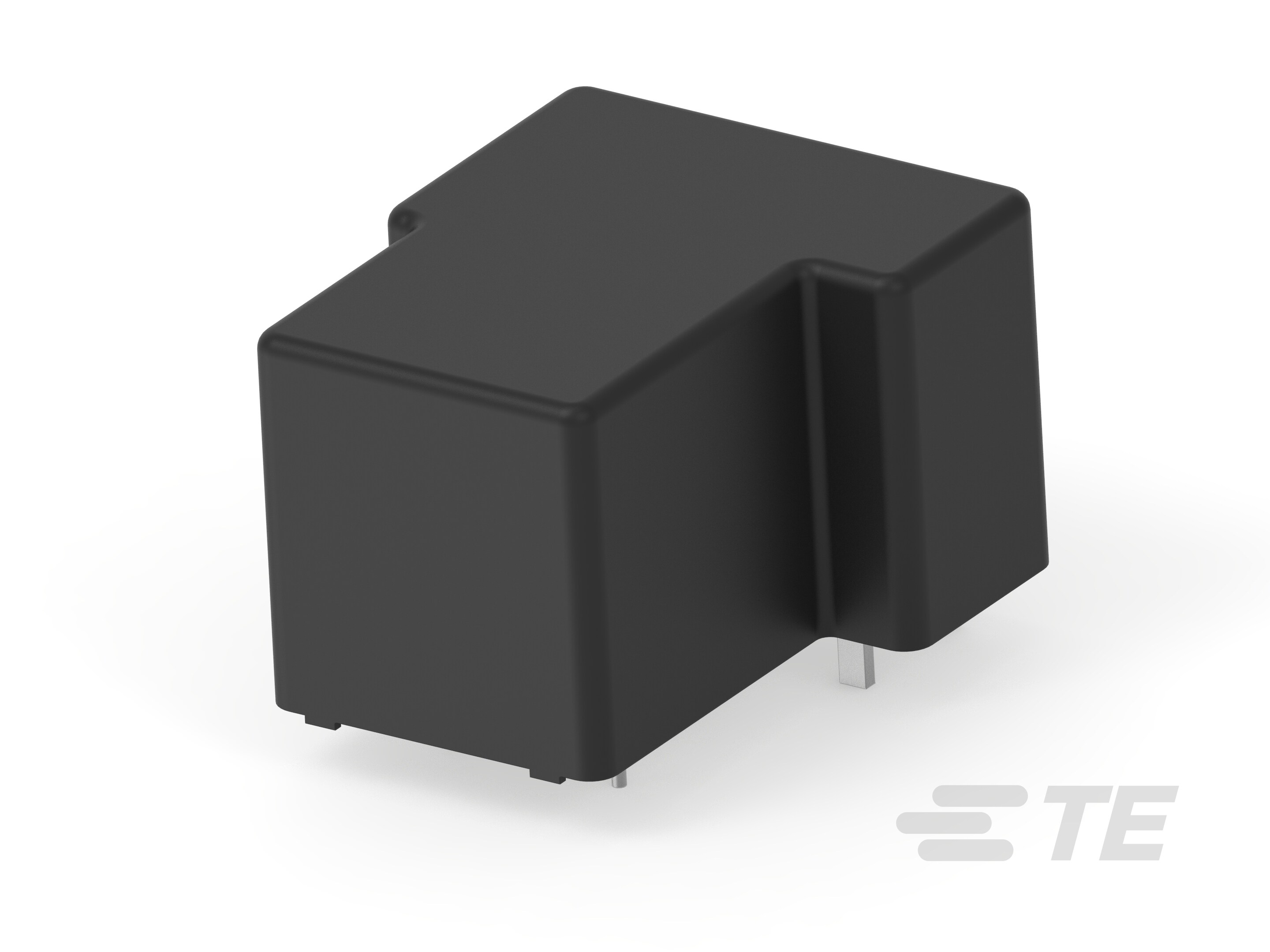

TE Connectivity AMP Connectors T9AV1D22-48		PC Pin	48 VDC	15 ms		Through Hole	Silver Cadmium Oxide (AgCdO)	SPST-NO (1 Form A)	4.8 VDC	15 ms	277 VAC	36 VDC	Non Latching	20.8 mA	Sealed - Flux Protection	-55 C	85 °C	Class F	General Purpose	30 A	8310 VA
TE Connectivity AMP Connectors T9AS1L12-24	660 Ohms	PC Pin	24 VDC	15 ms		Through Hole	Silver Cadmium Oxide (AgCdO)	SPST-NO (1 Form A)	2.4 VDC	15 ms	277 VAC	18 VDC	Non Latching	0.0375 A	Sealed - Fully	-55 C	85 °C	Class F	General Purpose	30 A	8310 VA
