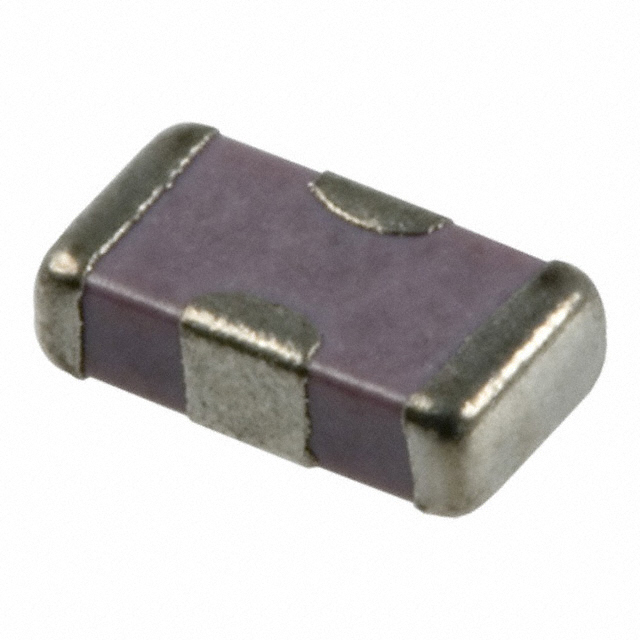

W2F Series

Catalog

FEED THROUGH CAPACITORS 50V 22NF X7R 0805

Part	Current	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Temperature Coefficient	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance [Max]	Tolerance [Min]	Voltage - Rated	Package / Case	Package / Case
KYOCERA AVX W2F15C2238AT1F	300 mA	0.022 µF	0.049 " 1.25 mm	0.079 in 2.01 mm	Surface Mount	X7R	1.14 mm	0.045 in	600 mOhm	-55 C	125 °C	50 %	-20 %	50 VDC	4 PC Pad	0805 (2012 Metric)
KYOCERA AVX W2F15C2228AT1A	300 mA	2200 pF	0.049 " 1.25 mm	0.079 in 2.01 mm	Surface Mount	X7R	1.14 mm	0.045 in	600 mOhm	-55 C	125 °C	50 %	-20 %	50 VDC	4 PC Pad	0805 (2012 Metric)
KYOCERA AVX W2F11A2218AT1F	300 mA	220 pF	0.049 " 1.25 mm	0.079 in 2.01 mm	Surface Mount	C0G NP0	1.14 mm	0.045 in	600 mOhm	-55 C	125 °C	50 %	-20 %	100 V	4 PC Pad	0805 (2012 Metric)
KYOCERA AVX W2F15C4728AT1B	300 mA	0.0047 µF	0.049 " 1.25 mm	0.079 in 2.01 mm	Surface Mount	X7R	1.14 mm	0.045 in	600 mOhm	-55 C	125 °C	50 %	-20 %	50 VDC	4 PC Pad	0805 (2012 Metric)
