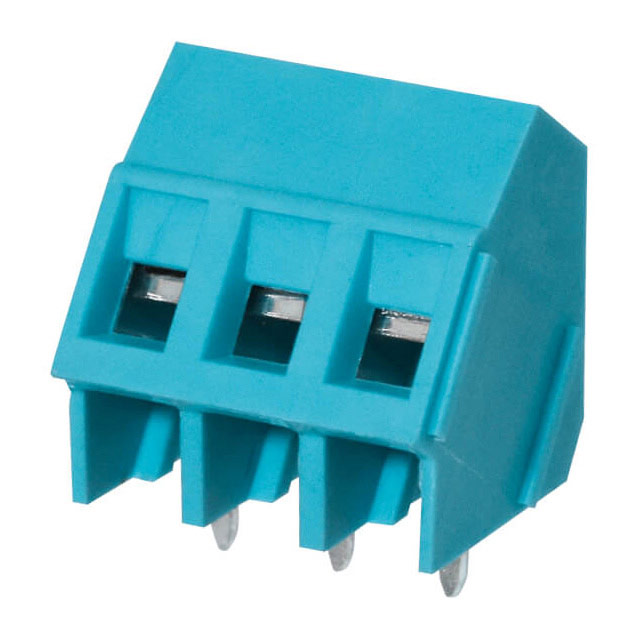

TB008A Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
FIXED TERMINAL BLOCKS TERMINAL BLOCK, SCREW TYPE, 5.08 , 45, 15 POLES, CUI BLUE, SLOTTED SCREW, PCB MOUNT
| Part | Positions Per Level | Mating Orientation | Mating Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Screw Material - Plating | Number of Levels | Torque - Screw | Torque - Screw | Contact Material - Plating | Color | Clamp Material - Plating [custom] | Clamp Material - Plating [custom] | Mounting Type | Screw Thread | Current | Voltage | Wire Termination | Features | Pitch | Pitch | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 15 | 135 ° | 45 ° | -40 C | 105 ░C | Steel - Zinc Plated | 1 | 4.4 Lb-In | 0.5 Nm | Copper Alloy - Tin Plated | Blue | Nickel Plated | Copper Alloy | Through Hole | M3 | 16 A | 300 VDC | Screw - Rising Cage Clamp | Interlocking (Side) | 5.08 mm | 0.2 in | 24 AWG | 12 AWG | |
Same Sky (Formerly CUI Devices) | 20 | 135 ° | 45 ° | 1 | Blue | Through Hole | 16 A | 300 VDC | Screw - Rising Cage Clamp | Interlocking (Side) | 5.08 mm | 0.2 in | 24 AWG | 12 AWG | ||||||||||
Same Sky (Formerly CUI Devices) | 14 | 135 ° | 45 ° | -40 C | 105 ░C | Steel - Zinc Plated | 1 | 4.4 Lb-In | 0.5 Nm | Copper Alloy - Tin Plated | Blue | Nickel Plated | Copper Alloy | Through Hole | M3 | 16 A | 300 VDC | Screw - Rising Cage Clamp | Interlocking (Side) | 5.08 mm | 0.2 in | 24 AWG | 12 AWG | |
Same Sky (Formerly CUI Devices) | 12 | 135 ° | 45 ° | 1 | Blue | Through Hole | 16 A | 300 VDC | Screw - Rising Cage Clamp | Interlocking (Side) | 5.08 mm | 0.2 in | 24 AWG | 12 AWG | ||||||||||
Same Sky (Formerly CUI Devices) | 13 | 135 ° | 45 ° | -40 C | 105 ░C | Steel - Zinc Plated | 1 | 4.4 Lb-In | 0.5 Nm | Copper Alloy - Tin Plated | Blue | Nickel Plated | Copper Alloy | Through Hole | M3 | 16 A | 300 VDC | Screw - Rising Cage Clamp | Interlocking (Side) | 5.08 mm | 0.2 in | 24 AWG | 12 AWG | |
Same Sky (Formerly CUI Devices) | 16 | 135 ° | 45 ° | -40 C | 105 ░C | Steel - Zinc Plated | 1 | 4.4 Lb-In | 0.5 Nm | Copper Alloy - Tin Plated | Blue | Nickel Plated | Copper Alloy | Through Hole | M3 | 16 A | 300 VDC | Screw - Rising Cage Clamp | Interlocking (Side) | 5.08 mm | 0.2 in | 24 AWG | 12 AWG | |
Same Sky (Formerly CUI Devices) | 17 | 135 ° | 45 ° | -40 C | 105 ░C | Steel - Zinc Plated | 1 | 4.4 Lb-In | 0.5 Nm | Copper Alloy - Tin Plated | Blue | Nickel Plated | Copper Alloy | Through Hole | M3 | 16 A | 300 VDC | Screw - Rising Cage Clamp | Interlocking (Side) | 5.08 mm | 0.2 in | 24 AWG | 12 AWG | |
Same Sky (Formerly CUI Devices) | 5 | 135 ° | 45 ° | 1 | Blue | Through Hole | 16 A | 300 VDC | Screw - Rising Cage Clamp | Interlocking (Side) | 5.08 mm | 0.2 in | 24 AWG | 12 AWG | ||||||||||
Same Sky (Formerly CUI Devices) | 135 ° | 45 ° | -40 C | 105 ░C | Steel - Zinc Plated | 1 | 4.4 Lb-In | 0.5 Nm | Copper Alloy - Tin Plated | Blue | Nickel Plated | Copper Alloy | Through Hole | M3 | 16 A | 300 VDC | Screw - Rising Cage Clamp | Interlocking (Side) | 5.08 mm | 0.2 in | 24 AWG | 12 AWG | 7 | |
 Same Sky (Formerly CUI Devices) | 3 | 135 ° | 45 ° | -40 C | 105 ░C | Steel - Zinc Plated | 1 | 4.4 Lb-In | 0.5 Nm | Copper Alloy - Tin Plated | Blue | Nickel Plated | Copper Alloy | Through Hole | M3 | 16 A | 300 VDC | Screw - Rising Cage Clamp | Interlocking (Side) | 5.08 mm | 0.2 in | 24 AWG | 12 AWG |
