68743 Series

Catalog

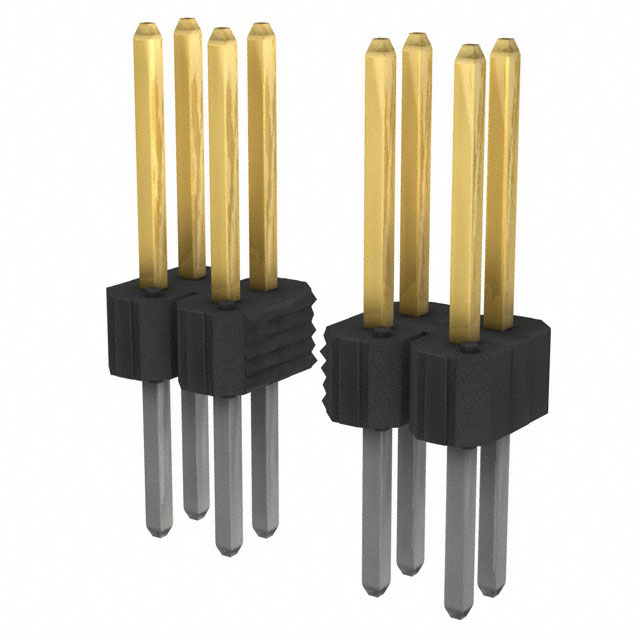

CONN HEADER VERT 72POS 2.54MM

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Shape	Fastening Type	Insulation Color	Shrouding	Number of Positions	Connector Type	Overall Contact Length	Overall Contact Length	Contact Type	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish - Mating

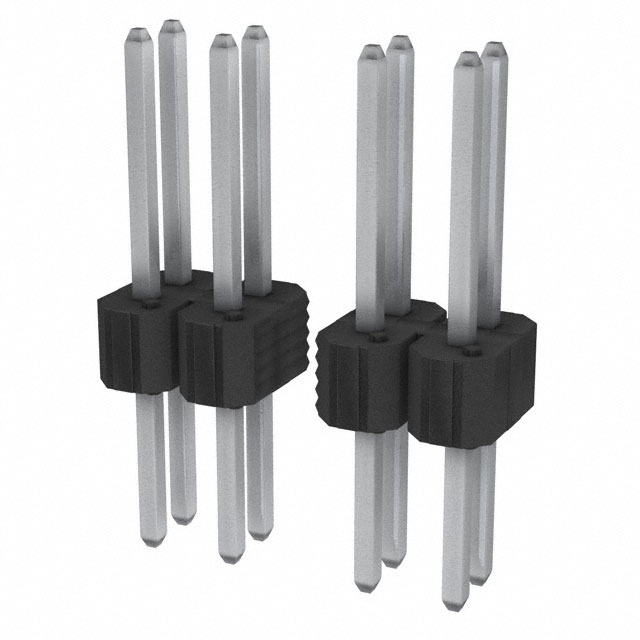

Amphenol ICC (FCI) 68743-472	UL94 V-0	2.54 çm	100 çin	2	Phosphor Bronze	0.318 "	8.08 mm	All	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Square	Push-Pull	Black	Unshrouded	72	Header	16.21 mm	0.638 in	Male Pin	Through Hole	0.1 in	2.54 mm	0.22 in	5.58 mm
Amphenol ICC (FCI) 68743-420HLF	UL94 V-0	2.54 çm	100 çin	2	Phosphor Bronze	0.318 "	8.08 mm	All	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Square	Push-Pull	Black	Unshrouded	20	Header	16.21 mm	0.638 in	Male Pin	Through Hole	0.1 in	2.54 mm	0.22 in	5.58 mm	Tin
Amphenol ICC (FCI) 68743-110HLF	UL94 V-0	0.76 Ám	30 Áin	2	Phosphor Bronze	0.318 "	8.08 mm	All	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Square	Push-Pull	Black	Unshrouded	10	Header	16.21 mm	0.638 in	Male Pin	Through Hole	0.1 in	2.54 mm	0.22 in	5.58 mm		Gold or Gold GXT™
Amphenol ICC (FCI) 68743-172	UL94 V-0	0.76 Ám	30 Áin	2	Phosphor Bronze	0.318 "	8.08 mm	All	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Square	Push-Pull	Black	Unshrouded	72	Header	16.21 mm	0.638 in	Male Pin	Through Hole	0.1 in	2.54 mm	0.22 in	5.58 mm		Gold or Gold GXT™
Amphenol ICC (FCI) 68743-572	UL94 V-0	0.38 µm	15 µin	2	Phosphor Bronze	0.318 "	8.08 mm	All	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Square	Push-Pull	Black	Unshrouded	72	Header	16.21 mm	0.638 in	Male Pin	Through Hole	0.1 in	2.54 mm	0.22 in	5.58 mm		Gold or Gold GXT™
Amphenol ICC (FCI) 68743-672	UL94 V-0	0.76 Ám	30 Áin	2	Phosphor Bronze	0.318 "	8.08 mm	All	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Square	Push-Pull	Black	Unshrouded	72	Header	16.21 mm	0.638 in	Male Pin	Through Hole	0.1 in	2.54 mm	0.22 in	5.58 mm		Gold or Gold GXT™
