GBC02S Series
Manufacturer: Sullins Connector Solutions
Catalog
CONN HEADER SMD R/A 2POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Number of Rows | Contact Finish - Mating | Shrouding | Connector Type | Insulation Height | Insulation Height | Number of Positions | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Shape | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Contact Type | Insulation Material | Contact Finish - Post | Style | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

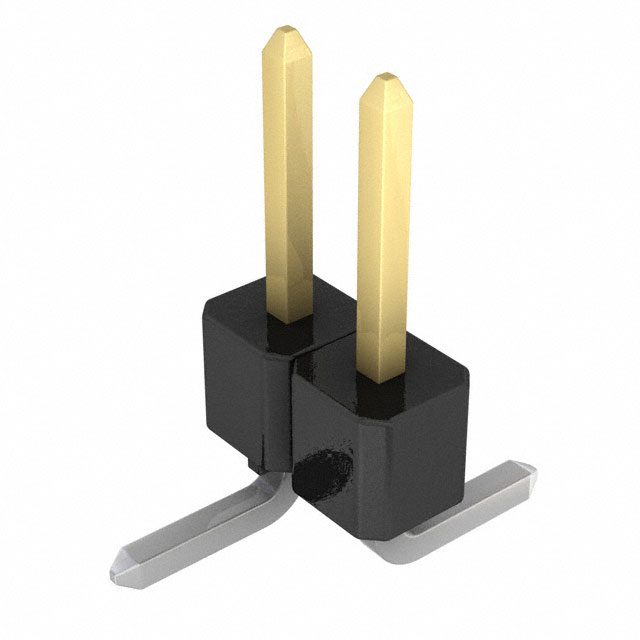

 Sullins Connector Solutions | 2.54 µm | 100 µin | Black | 1 | Gold | Unshrouded | Header Breakaway | 3.56 mm | 0.14 in | 2 | All | 0.25 µm | 10 µin | Phosphor Bronze | Right Angle Surface Mount | 150 °C | -65 ░C | Push-Pull | Square | 0.1 " | 2.54 mm | 3 A | Male Pin | Nylon 9T Polyamide (PA9T) | Tin | Board to Board Cable | UL94 V-0 | 8.08 mm | 0.318 in | Solder |

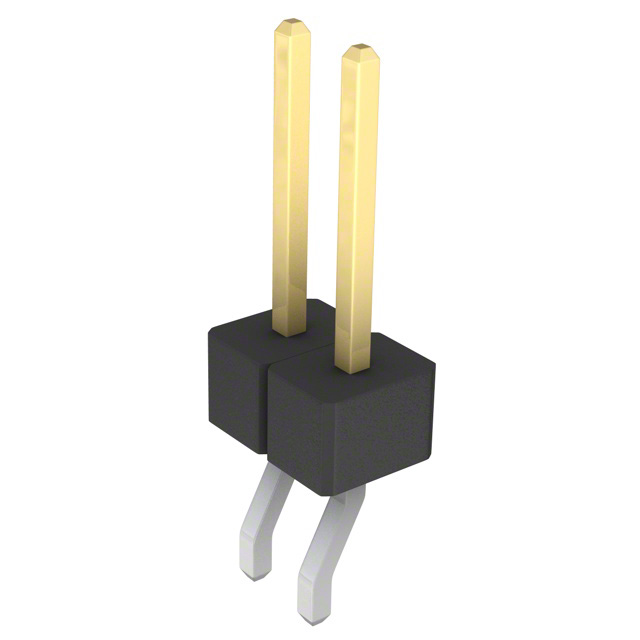

 Sullins Connector Solutions | 2.54 µm | 100 µin | Black | 1 | Gold | Unshrouded | Header Breakaway | 2.54 mm | 0.1 in | 2 | All | 0.25 µm | 10 µin | Phosphor Bronze | Surface Mount | 150 °C | -65 ░C | Push-Pull | Square | 0.1 " | 2.54 mm | 3 A | Male Pin | Nylon 9T Polyamide (PA9T) | Tin | Board to Board Cable | UL94 V-0 | 5.84 mm | 0.23 in | Solder |
