4366-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

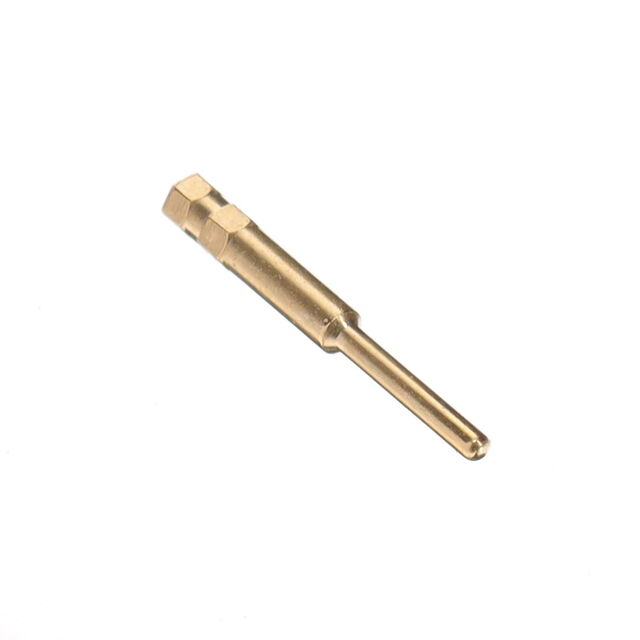

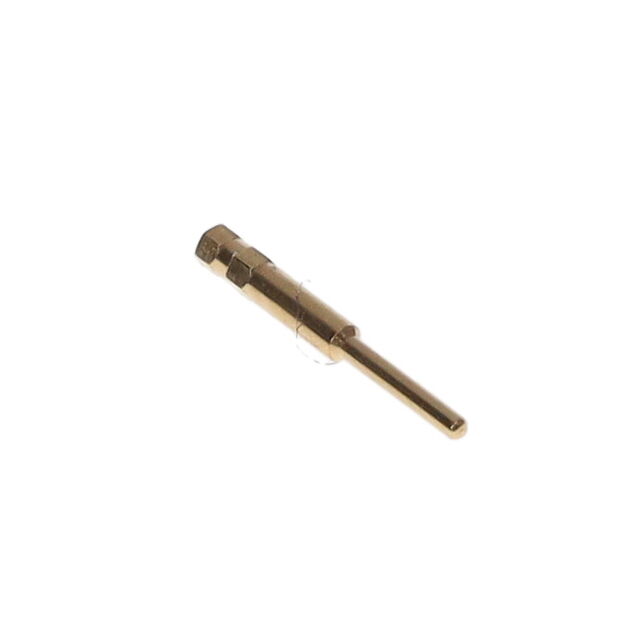

CONN PC PIN CIRC .020DIA GOLD
| Part | Contact Material | Length - Overall [x] | Length - Overall [x] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Type | Termination | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | 0.3 " | 7.62 mm | 0.278 in | 7.06 mm | Gold | 0.038 in | 0.97 mm | 0.034 in | 0.86 mm | 20 µin | 0.51 µm | Through Hole | Non-Insulated | 0.02 in | 0.51 mm | PC Pin | Hex Press-Fit | Single End |
 Mill-Max Manufacturing Corp. | Brass Alloy | 0.3 " | 7.62 mm | 0.278 in | 7.06 mm | Tin-Lead | 0.038 in | 0.97 mm | 0.034 in | 0.86 mm | 200 Áin | 5.08 Ám | Through Hole | Non-Insulated | 0.02 in | 0.51 mm | PC Pin | Hex Press-Fit | Single End |
 Mill-Max Manufacturing Corp. | Brass Alloy | 0.3 " | 7.62 mm | 0.278 in | 7.06 mm | Gold | 0.038 in | 0.97 mm | 0.034 in | 0.86 mm | 10 Áin | 0.25 Ám | Through Hole | Non-Insulated | 0.02 in | 0.51 mm | PC Pin | Hex Press-Fit | Single End |
