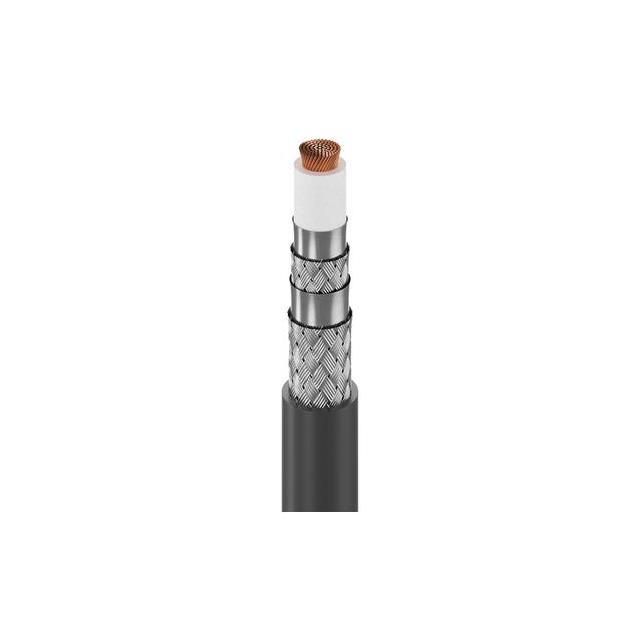

3092F Series
Manufacturer: Belden Inc.
Beta
⌘K
COAX 20AWG 100 OHM
| Part | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | VoP, Velocity of Propagation | Conductor Material | Dielectric Material | Shield Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Length [x] | Length [x] | Impedance | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 40 % 60 % 100 % | -40 C | 75 ░C | 4.65 mm | 0.183 in | Aluminum | 79 | Copper Bare | Foam Polyethylene (FPE) | Braid Foil | Poly-Vinyl Chloride (PVC) | 7.7 mm | 0.303 in | RG-6 | 304.8 m | 1000 ft | 100 Ohms | 20 AWG | 40 AWG | 105 | Coaxial - Riser | Black | Quad Shield |
