DB105 Series

Catalog

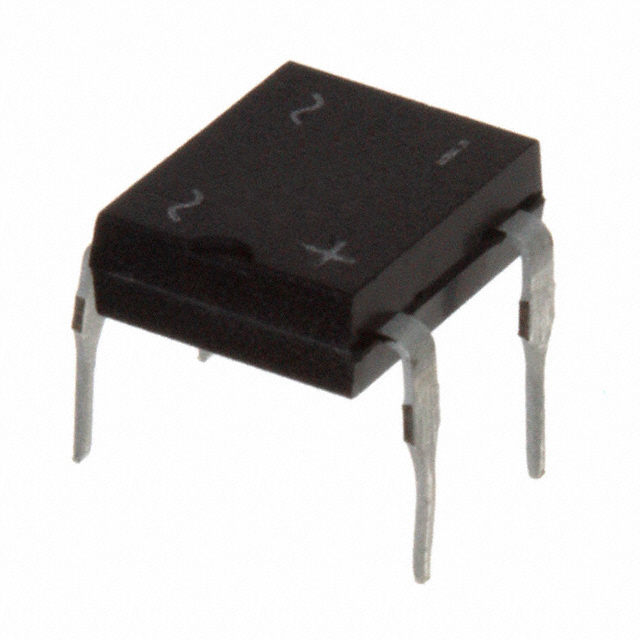

RECTIFIER BRIDGE DIODE SINGLE 600V 1A 4-PIN CASE DB TUBE

Part	Supplier Device Package	Current - Average Rectified (Io)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Package / Case	Package / Case	Diode Type	Current - Reverse Leakage @ Vr	Technology
Comchip Technology DB105-G	DB	1 A	150 °C	-55 °C	Through Hole	600 V	1.1 V	0.321 in	4-EDIP	8.15 mm	Single Phase	10 µA	Standard
Comchip Technology DB105S-G	DBS	1 A	150 °C	-55 °C	Surface Mount	600 V	1.1 V		4-SMD Gull Wing		Single Phase	10 µA	Standard
Comchip Technology DB105S-HF	DBS	1 A	150 °C	-55 °C	Surface Mount	600 V	1.1 V		4-SMD Gull Wing		Single Phase	10 µA	Standard
