LMZM33603 Series
Manufacturer: Texas Instruments
Beta
⌘K

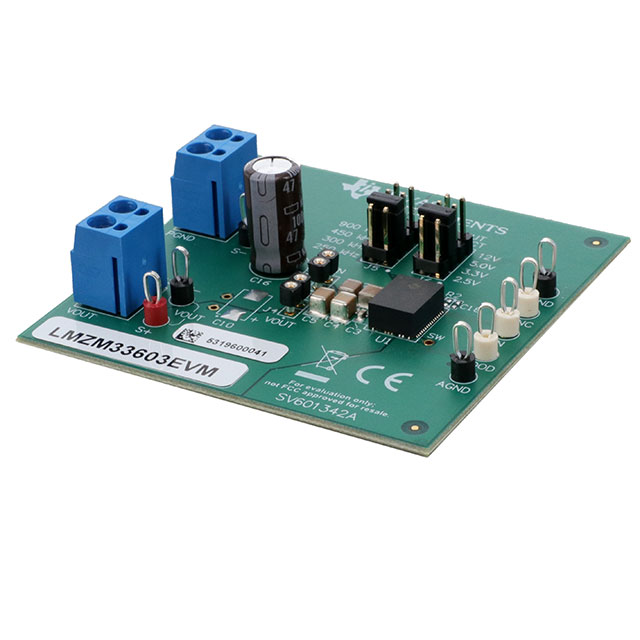

EVAL BOARD FOR LMZM33603
| Part | Supplied Contents | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Board Type | Regulator Topology | Current - Output | Voltage - Output | Outputs and Type | Outputs and Type | Supplier Device Package | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Type | Features | Current - Output (Max) [Max] | Package / Case | Voltage - Input (Min) [Min] | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Number of Outputs | Voltage - Input (Max) [Max] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | LMZM33603 | 4 V | 36 V | DC/DC Step Down | Fully Populated | Buck | 3 A | 2.5 V 3.3 V 5 V 12 V | Non-Isolated | 1 | |||||||||||||||||||
 Texas Instruments | 18-B2QFN (9x7) | Surface Mount | -40 °C | 105 ░C | Non-Isolated PoL Module | OCP OTP UVLO | 3 A | 18-PowerBQFN Module | 4 V | 94 % | 0.16 in | 0.28 in | 9 mm | 4.1 mm | 0.35 in | 7 mm | 1 | 36 V | ITE (Commercial) |
