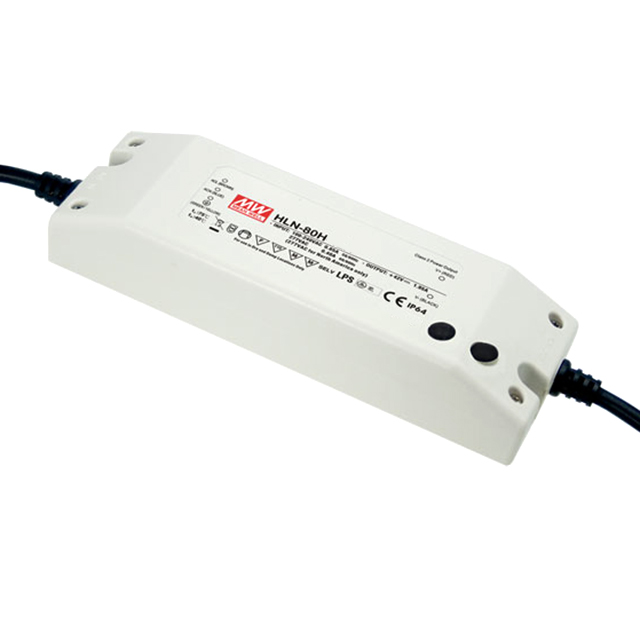

HLN-80H Series

Catalog

LED DRVR CC/CV AC/DC 30V 2.7A

Part	Mounting Type	Features	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Ratings	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Dimming	Termination Style	Voltage - Output	Efficiency	Number of Outputs	Topology	Type	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Current - Output (Max)
MEAN WELL USA Inc. HLN-80H-30B	Chassis Mount	OCP OTP OVP SCP	CB CE PSE TUV	-40 C	50 °C	90 VAC	3750 VDC	IP64	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	Analog PWM	Wire Leads	30 V	91 %	1	AC DC Converter	Constant Current Voltage	81 W	2.7 A	305 VAC
MEAN WELL USA Inc. HLN-80H-15A	Chassis Mount	OCP OTP OVP SCP	CB CE PSE TUV	-40 C	50 °C	90 VAC	3750 VDC	IP64	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	PWM	Wire Leads	15 V	89 %	1	AC DC Converter	Constant Current Voltage	75 W		305 VAC	5 A
MEAN WELL USA Inc. HLN-80H-12B	Chassis Mount	OCP OTP OVP SCP	CB CE PSE TUV	-40 C	50 °C	90 VAC	3750 VDC	IP64	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	Analog PWM	Wire Leads	12 V	88 %	1	AC DC Converter	Constant Current Voltage	60 W		305 VAC	5 A
MEAN WELL USA Inc. HLN-80H-36B	Chassis Mount	OCP OTP OVP SCP	CB CE PSE TUV	-40 C	50 °C	90 VAC	3750 VDC	IP64	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	Analog PWM	Wire Leads	36 V	91 %	1	AC DC Converter	Constant Current Voltage	83 W	2.3 A	305 VAC
MEAN WELL USA Inc. HLN-80H-30A	Chassis Mount	OCP OTP OVP SCP	CB CE PSE TUV	-40 C	50 °C	90 VAC	3750 VDC	IP64	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	PWM	Wire Leads	30 V	91 %	1	AC DC Converter	Constant Current Voltage	81 W	2.7 A	305 VAC
MEAN WELL USA Inc. HLN-80H-12A	Chassis Mount	OCP OTP OVP SCP	CB CE PSE TUV	-40 C	50 °C	90 VAC	3750 VDC	IP64	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	PWM	Wire Leads	12 V	88 %	1	AC DC Converter	Constant Current Voltage	60 W		305 VAC	5 A
MEAN WELL USA Inc. HLN-80H-54A	Chassis Mount	OCP OTP OVP SCP		-40 C	50 °C	90 VAC	3750 VDC	IP64	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	PWM	Wire Leads	54 V	91 %	1	AC DC Converter	Constant Current Voltage	81 W	1.5 A	305 VAC
MEAN WELL USA Inc. HLN-80H-48A	Chassis Mount	OCP OTP OVP SCP		-40 C	50 °C	90 VAC	3750 VDC	IP64	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	PWM	Wire Leads	48 V	91 %	1	AC DC Converter	Constant Current Voltage	82 W	1.7 A	305 VAC
MEAN WELL USA Inc. HLN-80H-20A	Chassis Mount	OCP OTP OVP SCP	CB CE PSE TUV	-40 C	50 °C	90 VAC	3750 VDC	IP64	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	PWM	Wire Leads	20 V	90 %	1	AC DC Converter	Constant Current Voltage	80 W	4 A	305 VAC
MEAN WELL USA Inc. HLN-80H-54B	Chassis Mount	OCP OTP OVP SCP		-40 C	50 °C	90 VAC	3750 VDC	IP64	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	Analog PWM	Wire Leads	54 V	91 %	1	AC DC Converter	Constant Current Voltage	81 W	1.5 A	305 VAC
