SMC201 Series

Catalog

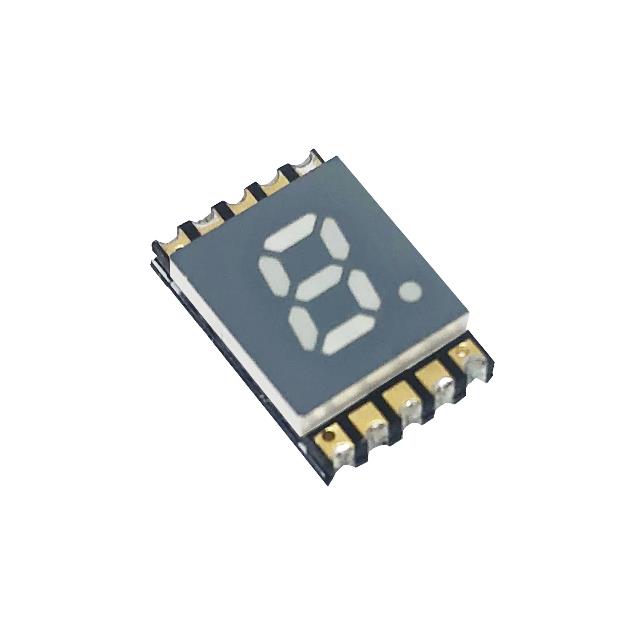

0.2" SGL SMD DISPLAY - RED

Part	Current - Test	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Color	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Display Type	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Number of Characters	Millicandela Rating	Common Pin	Wavelength - Peak	Power Dissipation (Max)
American Opto Plus LED SMC201LE G/W	20 mA	8 mm	0.283 in	7.2 mm	0.128 in	0.315 in	3.25 mm	Red	70 mW	2 V	7-Segment	0.2 in	5.08 mm	10-SMD No Lead	1	12 mcd	Common Cathode	632 nm
American Opto Plus LED SMC201LR G/W	20 mA	8 mm	0.283 in	7.2 mm	0.128 in	0.315 in	3.25 mm	Red	75 mw	2 V	7-Segment	0.2 in	5.08 mm	10-SMD No Lead	1	2 mcd	Common Cathode	650 nm
American Opto Plus LED SMC201LE-UT GW	20 mA	3.35 mm	0.291 "	7.4 mm	0.433 in	0.132 "	11 mm	Red	70 mW	2 V	7-Segment	0.2 in	5.08 mm	10-SMD No Lead	1	15 mcd	Common Cathode	632 nm
American Opto Plus LED SMC201LY G/W	20 mA	8 mm	0.283 in	7.2 mm	0.128 in	0.315 in	3.25 mm	Yellow	70 mW	2 V	7-Segment	0.2 in	5.08 mm	10-SMD No Lead	1	12 mcd	Common Cathode	593 nm
American Opto Plus LED SMC201LA G/W	20 mA	8 mm	0.283 in	7.2 mm	0.128 in	0.315 in	3.25 mm	Amber	70 mW	2 V	7-Segment	0.2 in	5.08 mm	10-SMD No Lead	1	12 mcd	Common Cathode	612 nm
American Opto Plus LED SMC201PG G/W	20 mA	8 mm	0.283 in	7.2 mm	0.128 in	0.315 in	3.25 mm	Green		3.2 V	7-Segment	0.2 in	5.08 mm	10-SMD No Lead	1	50 mcd	Common Cathode	525 nm	120 mW
American Opto Plus LED SMC201LB G/W	20 mA	8 mm	0.283 in	7.2 mm	0.128 in	0.315 in	3.25 mm	Blue		3.2 V	7-Segment	0.2 in	5.08 mm	10-SMD No Lead	1	20 mcd	Common Cathode	470 nm	120 mW
