ALCOSWITCH DIP ADP & ADPA Series

Catalog

DIP / SIP SWITCH, 8 CIRCUITS, PIANO KEY, SURFACE MOUNT, SPST, 24 V, 100 MA

Part	Termination Style	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Material	Current Rating (Amps)	Voltage Rating	Circuit	Pitch	Pitch	Actuator Level	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Actuator Type	Electrical Life	Mechanical Life	Body Material
TE Connectivity AMP Connectors 2-1571999-9	Gull Wing	0.273 in	6.93 mm	Right Angle Surface Mount	Copper Alloy	25 mA	24 VDC	SPST	2.54 mm	0.1 "	Raised	8	85 °C	-30 ░C	Gold	Piano
TE Connectivity AMP Connectors 1571999-7	Gull Wing	0.273 in	6.93 mm	Right Angle Surface Mount	Copper Alloy	25 mA	24 VDC	SPST	2.54 mm	0.1 "	Raised	4	85 °C	-30 ░C	Gold	Piano
TE Connectivity AMP Connectors 2-1571999-6	PC Pin	0.287 in	7.3 mm	Right Angle Through Hole	Copper Alloy	25 mA	24 VDC	SPST	2.54 mm	0.1 "	Raised	8	85 °C	-30 ░C	Gold	Piano
TE Connectivity AMP Connectors 4-1571999-1				Through Hole				SPST			Raised	2				Piano

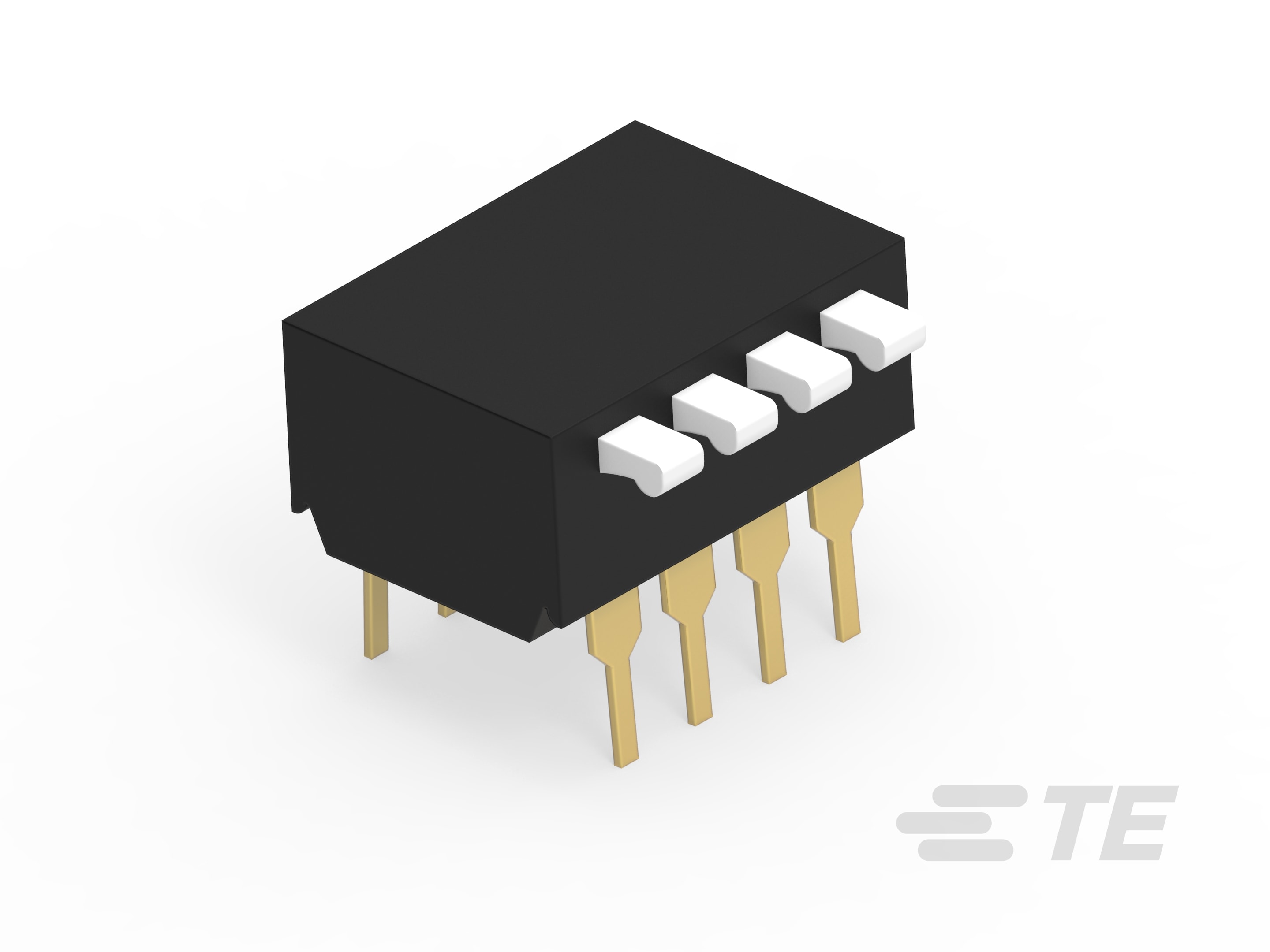

TE Connectivity AMP Connectors 1571999-6	PC Pin	0.287 in	7.3 mm	Right Angle Through Hole	Copper Alloy	25 mA	24 VDC	SPST	2.54 mm	0.1 "	Raised	4	85 °C	-30 ░C	Gold	Piano	1000 Cycles	1000 Cycles	Polyphenylene Sulfide (PPS)
TE Connectivity AMP Connectors 1-1571999-2				Surface Mount				SPST			Raised	5				Piano
TE Connectivity AMP Connectors 3-1571999-9				Surface Mount				SPST			Raised	10				Piano
TE Connectivity AMP Connectors 1571999-9	Gull Wing	0.273 in	6.93 mm	Right Angle Surface Mount	Copper Alloy	25 mA	24 VDC	SPST	2.54 mm	0.1 "	Raised	4	85 °C	-30 ░C	Gold	Piano
