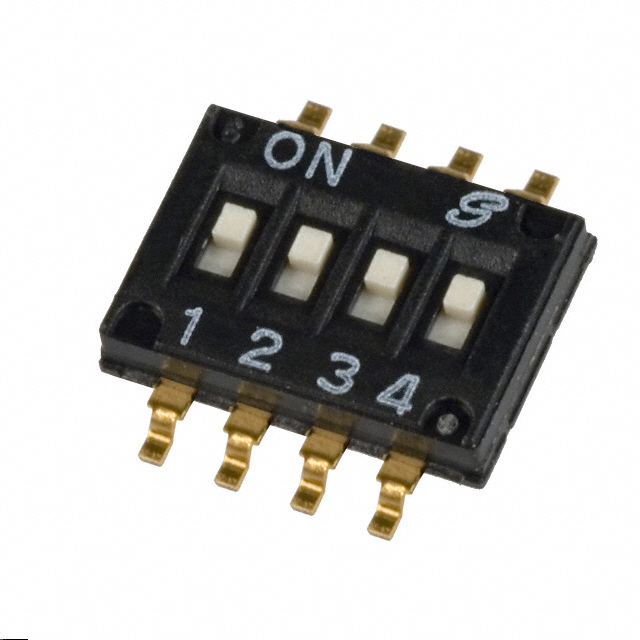

97R04 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
DIP SWITCHES / SIP SWITCHES HALF PITCH DIP 4 POS TOP TAPE SEAL
| Part | Length [x] | Length [x] | Mechanical Life | Body Material | Current Rating (Amps) | Pitch | Pitch | Pitch | Voltage Rating | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Washable | Contact Material | Features | Contact Finish | Height Above Board [z] | Height Above Board [z] | Number of Positions | Actuator Level | Mounting Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 6.31 mm | 0.248 in | 1000 Cycles | Polyamide (PA) Nylon | 25 mA | 0.05 " | 1.27 mm | Half | 24 VDC | Gull Wing | 85 °C | -40 C | Slide (Standard) | Copper Alloy | Tape Seal | Gold | 0.061 " | 1.55 mm | 4 | Flush Recessed | Surface Mount | SPST |
