G11MC7-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 2P GOLD SLDR CUP
| Part | Color | Fastening Type | Number of Positions | Current Rating (Amps) | Shell Size - Insert | Contact Finish - Mating | Primary Material | Applications | Orientation | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Mounting Feature | Shielding | Contact Material | Connector Type | Insert Material | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

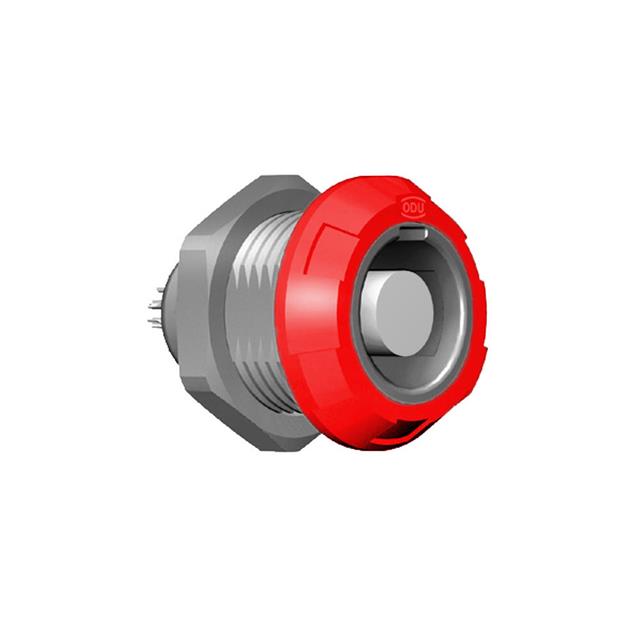

Gray Red | Detent Lock Push-Pull | 2 | 14 A | 1 | Gold | Plastic | Industrial Medical Military Testing Equipment & Measurement | C | IP50 - Dust Protected | 120 °C | -50 °C | Panel Mount | Bulkhead - Rear Side Nut | Unshielded | Brass | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Polysulfone (PSU) | |
Gray Green | Detent Lock Push-Pull | 8 | 3.85 A | 1 | Gold | Plastic | Industrial Medical Military Testing Equipment & Measurement | C | IP50 - Dust Protected | 120 °C | -50 °C | Panel Mount | Bulkhead - Rear Side Nut | Unshielded | Brass | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Polysulfone (PSU) | |
Gray Green | Detent Lock Push-Pull | 7 | 4.55 A | 1 | Gold | Plastic | Industrial Medical Military Testing Equipment & Measurement | C | IP50 - Dust Protected | 120 °C | -50 °C | Panel Mount | Bulkhead - Rear Side Nut | Unshielded | Brass | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Polysulfone (PSU) | |
Gray Green | Detent Lock Push-Pull | 4 | 10 A | 1 | Gold | Plastic | Industrial Medical Military Testing Equipment & Measurement | C | IP50 - Dust Protected | 120 °C | -50 °C | Panel Mount | Bulkhead - Rear Side Nut | Unshielded | Brass | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Polysulfone (PSU) | |
Detent Lock Push-Pull | 4 | 10 A | 1 | Gold | Plastic | Industrial Medical Military Testing Equipment & Measurement | C | IP50 - Dust Protected | 120 °C | -50 °C | Panel Mount | Bulkhead - Rear Side Nut | Unshielded | Brass | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Polysulfone (PSU) | ||
Detent Lock Push-Pull | 10 | 2.75 A | 1 | Gold | Plastic | Industrial Medical Military Testing Equipment & Measurement | C | IP50 - Dust Protected | 120 °C | -50 °C | Panel Mount | Bulkhead - Rear Side Nut | Unshielded | Brass | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Polysulfone (PSU) | ||

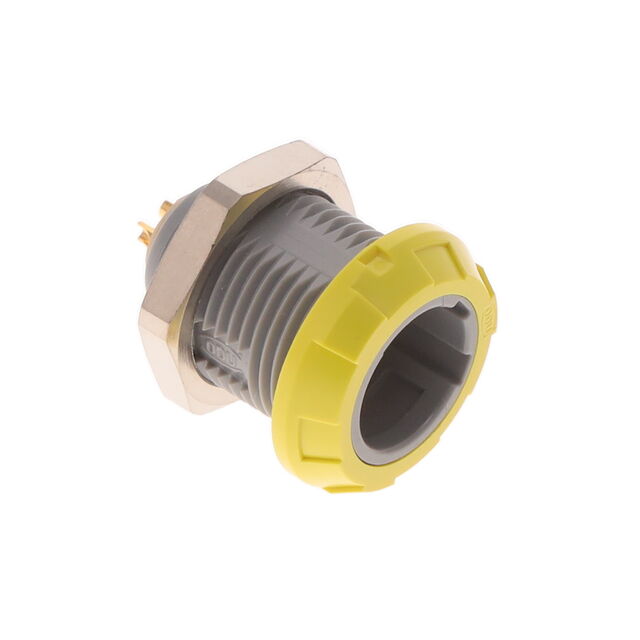

Gray Yellow | Detent Lock Push-Pull | 2 | 14 A | 1 | Gold | Plastic | Industrial Medical Military Testing Equipment & Measurement | C | IP50 - Dust Protected | 120 °C | -50 °C | Panel Mount | Bulkhead - Rear Side Nut | Unshielded | Brass | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Polysulfone (PSU) | |

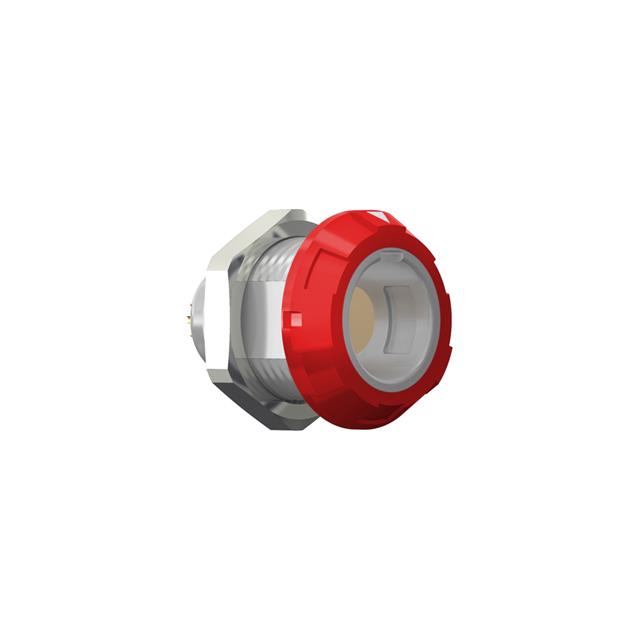

Gray Red | Detent Lock Push-Pull | 14 | 2.5 A | 1 | Gold | Plastic | Industrial Medical Military Testing Equipment & Measurement | C | IP50 - Dust Protected | 120 °C | -50 °C | Panel Mount | Bulkhead - Rear Side Nut | Unshielded | Brass | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Polysulfone (PSU) | |
Detent Lock Push-Pull | 6 | 4.55 A | 1 | Gold | Plastic | Industrial Medical Military Testing Equipment & Measurement | C | IP50 - Dust Protected | 120 °C | -50 °C | Panel Mount | Bulkhead - Rear Side Nut | Unshielded | Brass | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Polysulfone (PSU) | ||
Gray Green | Detent Lock Push-Pull | 5 | 7.5 A | 1 | Gold | Plastic | Industrial Medical Military Testing Equipment & Measurement | C | IP50 - Dust Protected | 120 °C | -50 °C | Panel Mount | Bulkhead - Rear Side Nut | Unshielded | Brass | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Polysulfone (PSU) |
