HHM Series

Catalog

SIGNAL CONDITIONING LTCC BALUN 3300-3900MHZ

Part	Impedance - Unbalanced/Balanced [custom]	Impedance - Unbalanced/Balanced [custom]	Phase Difference	Insertion Loss (Max) [Max]	Frequency Range [Max]	Frequency Range [Min]	Return Loss (Min) [Min]	Mounting Type	Package / Case	Package / Case	Package / Case	Insertion Loss (Max)
TDK Corporation HHM1715E1	100 Ohm	50 Ohm	180 °	1 dB	3.9 GHz	3.3 GHz	10 dB	Surface Mount	1608 Metric	0603
TDK Corporation HHM17147A1	100 Ohm	50 Ohm	190 °	2.5 dB	2.7 GHz	673 MHz	8 dB	Surface Mount		0603 (1608 Metric)	6 PC Pad

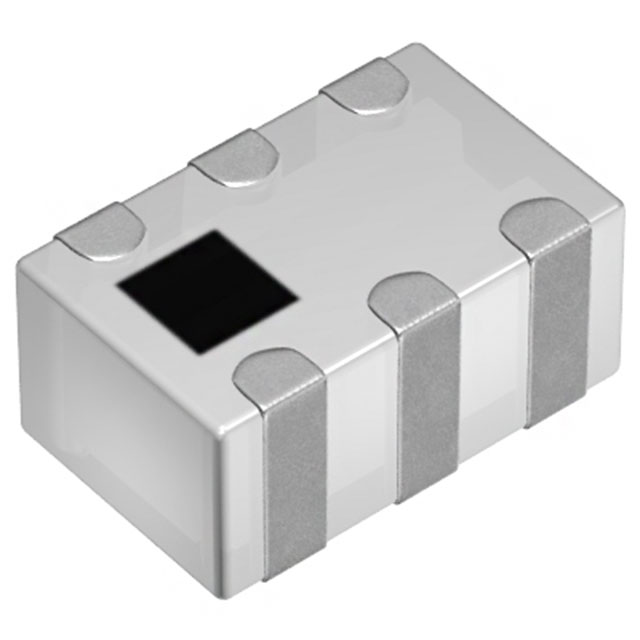

TDK Corporation HHM15112A1	100 Ohm	75 Ohm	180 °		2.2 GHz	900 MHz	10 dB	Surface Mount		0805 (2012 Metric)	6 PC Pad
TDK Corporation HHM15107A2	50 Ohm	50	177.5 °	1.2 dB	2.7 GHz	2.3 GHz	9 dB	Surface Mount		0805 (2012 Metric)	6 PC Pad
TDK Corporation HHM17139B2	50 Ohm	50	178 °		2600 MHz	2.4 GHz		Surface Mount		0603 (1608 Metric)	6 PC Pad	0.4 dB
TDK Corporation HHM1533	50 Ohm	50	180 °	1 dB	2.17 GHz	1.92 GHz	10 dB	Surface Mount		0805 (2012 Metric)	6 PC Pad
TDK Corporation HHM1525	50 Ohm	50	180 °	1 dB	1.99 GHz	1.71 GHz	10 dB	Surface Mount		0805
