CONMMCX Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN MMCX RCPT STR 50 OHM SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Body Material | Body Finish | Insertion Loss | Voltage Rating | Dielectric Material | Cable Group | Impedance | Center Contact Material | Connector Style | Connector Type | Mounting Type | Number of Ports | Housing Color | Frequency - Max [Max] | Contact Termination | Fastening Type | Shield Termination | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 0.2 dB | 170 V | Polytetrafluoroethylene (PTFE) | RG-174 | 50 Ohms | Beryllium Copper | MMCX | Receptacle Female Socket | Free Hanging (In-Line) | 1 | Gold | 6000 MHz | Solder | Snap-On | Crimp | |
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 0.3 dB | 170 V | Polytetrafluoroethylene (PTFE) | RG-174 | 50 Ohms | Brass | MMCX | Plug Male Pin | Free Hanging (In-Line) Right Angle | 1 | Gold | 6000 MHz | Solder | Snap-On | Crimp | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator |
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 750 VDC | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | MMCX | Receptacle Female Socket | Right Angle Surface Mount | 1 | Gold | 6000 MHz | Solder | Snap-On | Solder | |||
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 0.2 dB | 170 V | Polytetrafluoroethylene (PTFE) | RG-178 | 50 Ohms | Beryllium Copper | MMCX | Receptacle Female Socket | Free Hanging (In-Line) | 1 | Gold | 6000 MHz | Crimp Solder | Snap-On | Crimp | 1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support |
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 0.2 dB | 170 V | Polytetrafluoroethylene (PTFE) | RG-174 | 50 Ohms | Brass | MMCX | Plug Male Pin | Free Hanging (In-Line) | 1 | Gold | 6000 MHz | Solder | Snap-On | Crimp | |
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 250 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | MMCX | Female Socket Jack | Board Edge Cutout Surface Mount | 1 | Gold | 8.5 GHz | Solder | Snap-On | Solder | |||
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 250 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | MMCX | Female Socket Jack | Board Edge Cutout Surface Mount | 1 | Gold | 8.5 GHz | Solder | Snap-On | Solder | |||

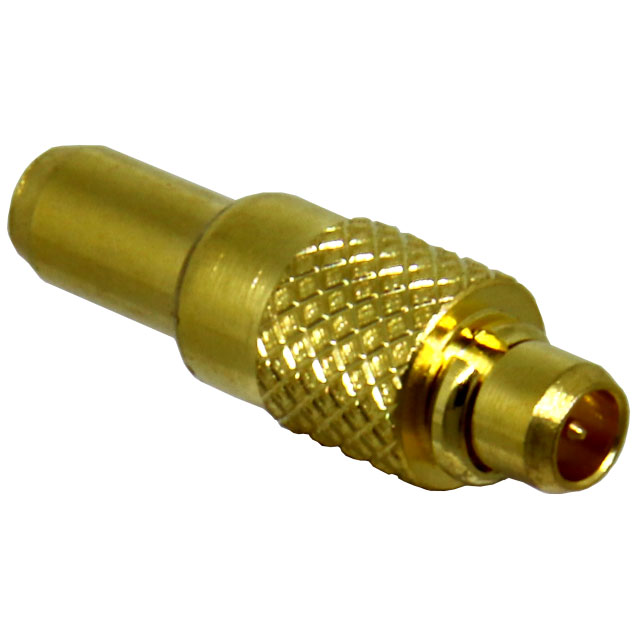

 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 0.2 dB | 170 V | Polytetrafluoroethylene (PTFE) | RG-178 | 50 Ohms | Beryllium Copper | MMCX | Plug Male Pin | Free Hanging (In-Line) | 1 | Gold | 6000 MHz | Crimp Solder | Snap-On | Crimp | 1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support |
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 1000 VDC | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | MMCX | Receptacle Female Socket | Surface Mount | 1 | Gold | 6000 MHz | Solder | Snap-On | Solder | |||
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 0.2 dB | 170 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | MMCX | Receptacle Female Socket | Through Hole | 1 | Gold | 6000 MHz | Solder | Snap-On | Solder |
