RC L Series

Manufacturer: YAGEO

Catalog

Catalog

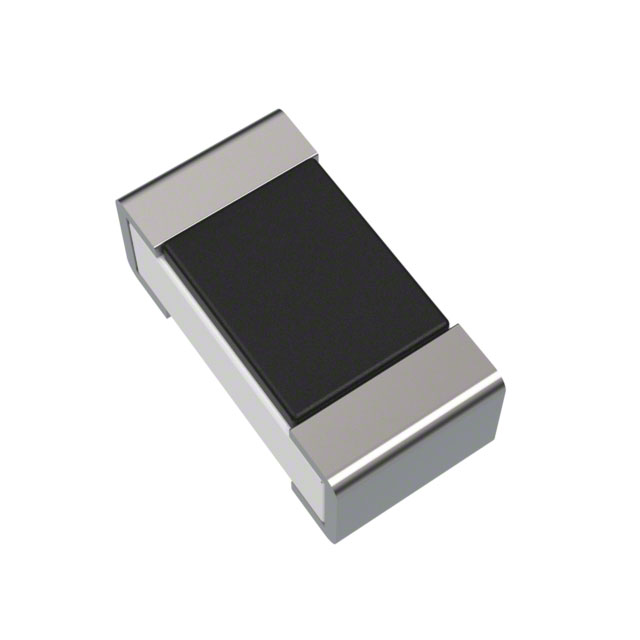

SMD CHIP RESISTOR, 39 OHM, ± 1%, 50 MW, 0201 [0603 METRIC], THICK FILM, GENERAL PURPOSE

...

Part	Package / Case	Package / Case	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Tolerance	Composition	Power (Watts)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Terminations [custom]	Resistance	Features	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Height - Seated (Max) [Max]
YAGEO RC0201FR-0739RL	0603 Metric	0201	200 ppm/°C	0.012 in	0.024 in	0.3 mm	0.6 mm	0201	1 %	Thick Film	0.05 W	50 mW	-55 C	125 °C	0.01 in	0.26 mm	2	39 Ohms	Moisture Resistant
YAGEO RC0402JR-0762RL		0402 (1005 Metric)	100 ppm/°C	0.5 mm	1 mm	0.02 in	0.039 "	0402	5 %	Thick Film	0.0625 W	0.063 W	-55 C	155 C			2	62 Ohms	Moisture Resistant	0.016 in	0.4 mm
YAGEO RC0603FR-103K65L	1608 Metric	0603	100 ppm/°C		1.6 mm	0.031 in	0.063 "		1 %	Thick Film	0.1 W	0.1 W	-55 C	155 C			2	3.65 kOhms	Moisture Resistant	0.022 in		0.8 mm	0.55 mm
YAGEO RC0603FR-10464KL	1608 Metric	0603	100 ppm/°C		1.6 mm	0.031 in	0.063 "		1 %	Thick Film	0.1 W	0.1 W	-55 C	155 C			2		Moisture Resistant	0.022 in		0.8 mm	0.55 mm
YAGEO RC0805JR-10180KL		0805	100 ppm/°C	1.25 mm	2 mm	0.049 "	0.079 in	0805	5 %	Thick Film	0.125 W	0.125 W	-55 C	155 C			2	180 kOhms	Moisture Resistant	0.024 in			0.6 mm
YAGEO RC0805FR-0722K1L		0805	100 ppm/°C	1.25 mm	2 mm	0.049 "	0.079 in	0805	1 %	Thick Film	0.125 W	0.125 W	-55 C	155 C			2	22.1 kOhms	Moisture Resistant	0.024 in			0.6 mm
YAGEO RC0805FR-136R98L		0805	200 ppm/°C	1.25 mm	2 mm	0.049 "	0.079 in	0805	1 %	Thick Film	0.125 W	0.125 W	-55 C	155 C			2	6.98 Ohms	Moisture Resistant	0.024 in			0.6 mm
YAGEO RC0603FR-1336K5L	1608 Metric	0603	100 ppm/°C		1.6 mm	0.031 in	0.063 "		1 %	Thick Film	0.1 W	0.1 W	-55 C	155 C			2	36500 Ohms	Moisture Resistant	0.022 in		0.8 mm	0.55 mm
YAGEO RC0603JR-074K7L	1608 Metric	0603	100 ppm/°C		1.6 mm	0.031 in	0.063 "		5 %	Thick Film	0.1 W	0.1 W	-55 C	155 C			2	4.7 kOhms	Moisture Resistant	0.022 in		0.8 mm	0.55 mm
YAGEO RC0603FR-0712K4L	1608 Metric	0603	100 ppm/°C		1.6 mm	0.031 in	0.063 "		1 %	Thick Film	0.1 W	0.1 W	-55 C	155 C			2	12.4 kOhms	Moisture Resistant	0.022 in		0.8 mm	0.55 mm
