AK3A Series

Catalog

STANDARD CLOCK OSCILLATORS CRYSTAL OSCILLATOR 3225 6-SMD 100MHZ +/-25PPM -40°C ~ 85°C LVPECL 3.3V

Part	Base Resonator [custom]	Frequency Stability	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Function	Package / Case	Type	Frequency	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Output	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Supply (Max) [Max]	Current - Supply (Disable) (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
Abracon LLC AK3APAF1-100.0000T	Crystal	25 ppm	3.3 V	85 °C	-40 C	Enable/Disable	6-SMD No Lead	XO (Standard)	100 MHz	3.2	2.5	6-SMD	LVPECL	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	0.043 "	1.1 mm	60 mA
Abracon LLC AK3ADDF1-212.500T3	Crystal	25 ppm		85 °C	-40 C	Enable/Disable	6-SMD No Lead	XO (Standard)	212.5 MHz	3.2	2.5	6-SMD	LVDS	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	0.043 "	1.1 mm	35 mA	10 µA	3.63 V	2.375 V

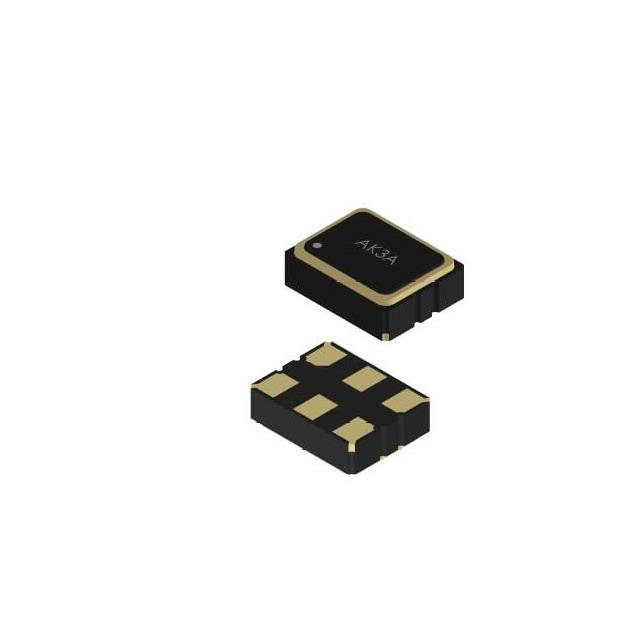

Abracon LLC AK3ADDF1-100.000T3	Crystal	25 ppm		85 °C	-40 C	Enable/Disable	6-SMD No Lead	XO (Standard)	100 MHz				LVDS	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	0.043 "	1.1 mm	35 mA	10 µA	3.63 V	2.375 V
