TE2500 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

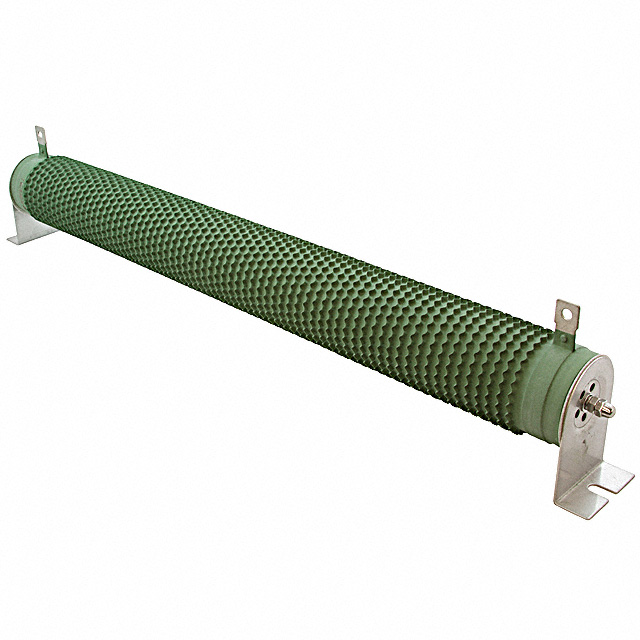

RES CHAS MNT 1.8 OHM 5% 2500W
| Part | Composition | Package / Case | Lead Style | Features | Temperature Coefficient | Tolerance | Power (Watts) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Coating, Housing Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Wirewound | Radial Tubular | Solder Lugs | Flame Proof Safety | 440 ppm/°C | 5 % | 2500 W | 600 mm | 23.622 " | 60 mm | 2.362 in | Silicone Coated | 155 C | -55 C | Brackets | 1.8 Ohms |
TE Connectivity AMP Connectors | Wirewound | Radial Tubular | Solder Lugs | Flame Proof Safety | 440 ppm/°C | 5 % | 2500 W | 600 mm | 23.622 " | 60 mm | 2.362 in | Silicone Coated | 155 C | -55 C | Brackets | 820 Ohms |
TE Connectivity AMP Connectors | Wirewound | Radial Tubular | Solder Lugs | Flame Proof Safety | 440 ppm/°C | 5 % | 2500 W | 600 mm | 23.622 " | 60 mm | 2.362 in | Silicone Coated | 155 C | -55 C | Brackets | 270 Ohms |
TE Connectivity AMP Connectors | Wirewound | Radial Tubular | Solder Lugs | Flame Proof Safety | 440 ppm/°C | 5 % | 2500 W | 600 mm | 23.622 " | 60 mm | 2.362 in | Silicone Coated | 155 C | -55 C | Brackets | 560 Ohms |
TE Connectivity AMP Connectors | Wirewound | Radial Tubular | Solder Lugs | Flame Proof Safety | 440 ppm/°C | 5 % | 2500 W | 600 mm | 23.622 " | 60 mm | 2.362 in | Silicone Coated | 155 C | -55 C | Brackets | 330 Ohms |
TE Connectivity AMP Connectors | Wirewound | Radial Tubular | Solder Lugs | Flame Proof Safety | 440 ppm/°C | 5 % | 2500 W | 600 mm | 23.622 " | 60 mm | 2.362 in | Silicone Coated | 155 C | -55 C | Brackets | 15 Ohms |
TE Connectivity AMP Connectors | Wirewound | Radial Tubular | Solder Lugs | Flame Proof Safety | 440 ppm/°C | 5 % | 2500 W | 600 mm | 23.622 " | 60 mm | 2.362 in | Silicone Coated | 155 C | -55 C | Brackets | 1.2 kOhms |
