GP2Y0 Series

Catalog

SENSOR OPTICAL 4-50CM ANALOG

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Sensing Distance [Max]	Sensing Distance [Min]	Current - Supply	Voltage - Output (Typ) @ Distance	Voltage - Output Difference (Typ) @ Distance	Voltage - Output Difference (Typ) @ Distance [Max]	Voltage - Output Difference (Typ) @ Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance

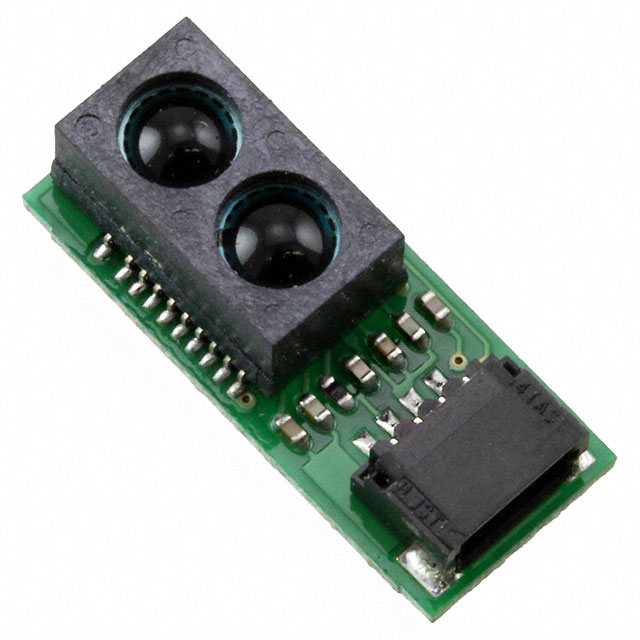

SHARP/Socle Technology GP2Y0E02A	3.3 V	2.7 V	-10 °C	60 °C	Analog	500 mm	4 cm	36 mA	550 mV	1.65 V

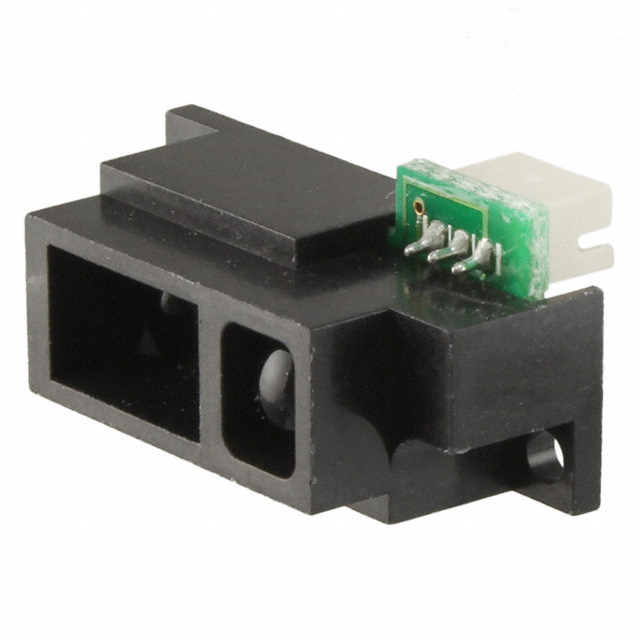

SHARP/Socle Technology GP2Y0A51SK0F	5.5 V	4.5 V	-10 °C	60 °C	Analog	150 mm	2 cm	22 mA	15 cm 400 mV	1.65 V	15 cm	2 cm

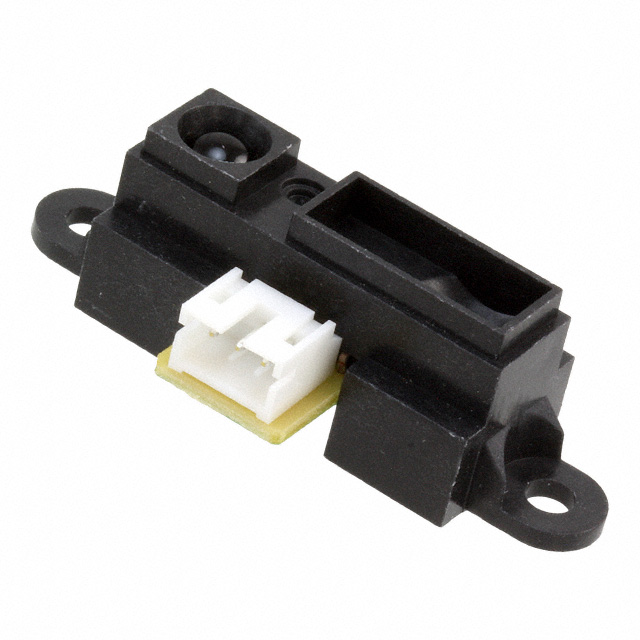

SHARP/Socle Technology GP2Y0A41SK0F	5.5 V	4.5 V	-10 °C	60 °C	Analog	11.81 in	1.57 "	22 mA	400 mV				300 mm	40 mm

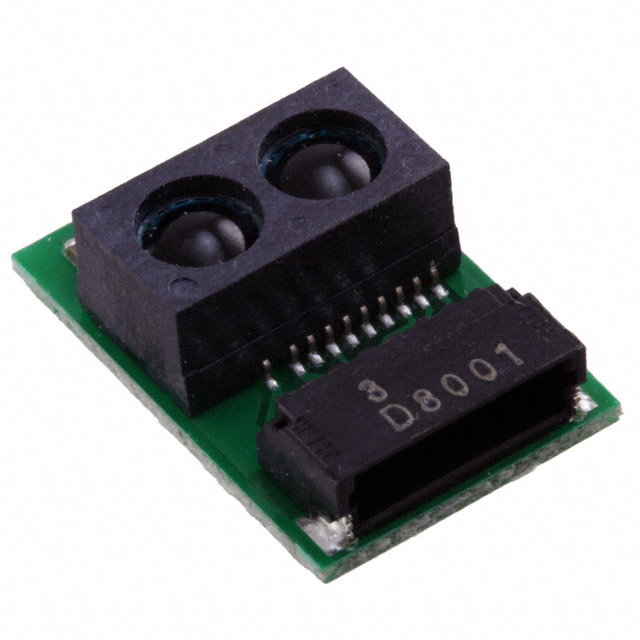

SHARP/Socle Technology GP2Y0E03	5.5 V	2.7 V	-10 °C	60 °C	Analog I2C	500 mm	4 cm	36 mA	550 mV	1.65 V

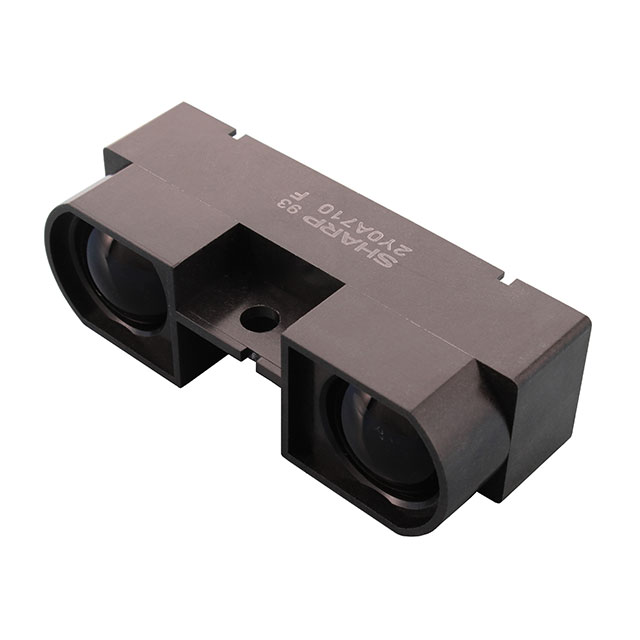

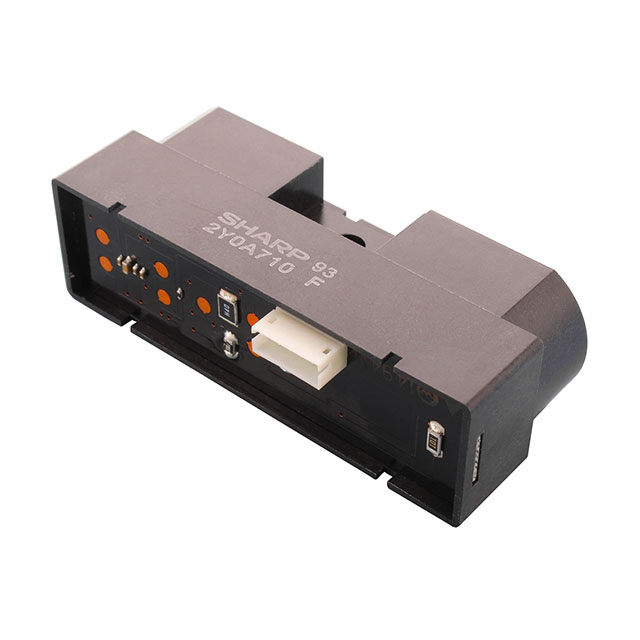

SHARP/Socle Technology GP2Y0A710K0F	5.5 V	4.5 V	-10 °C	60 °C	Analog	216.54 in 550 cm	39.37 in 100 cm	50 mA	2.5 V 100 cm	1.55 V

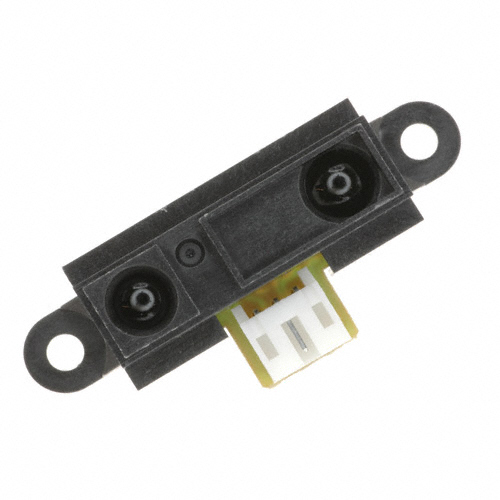

SHARP/Socle Technology GP2Y0A21YK0F	5.5 V	4.5 V	-10 °C	60 °C	Analog	800 mm	10 cm	40 mA	80 cm 400 mV	1.9 V
SHARP/Socle Technology GP2Y0AF15Y	5.5 V	4.5 V	-10 °C	60 °C	Analog	5.91 in	0.59 in	30 mA	15 cm 400 mV				15 cm	20 mm

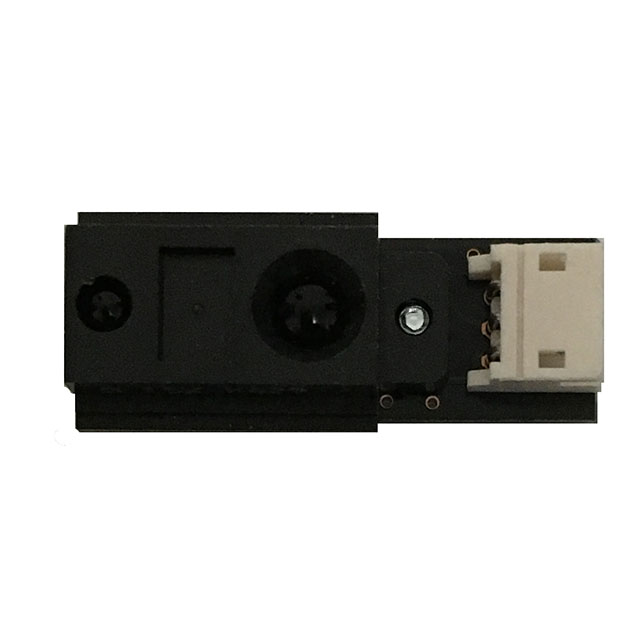

SHARP/Socle Technology GP2Y0AF15X	5.5 V	4.5 V	-10 °C	60 °C	Analog	5.91 in	0.59 in	30 mA	15 cm 400 mV				15 cm	1.5 cm
SHARP/Socle Technology GP2Y0A02SKDF
SHARP/Socle Technology GP2Y0D02YK0F	5.5 V	4.5 V	-10 °C	60 °C	Digital			50 mA							80 cm
