210 Series

Manufacturer: Ohmite

Catalog

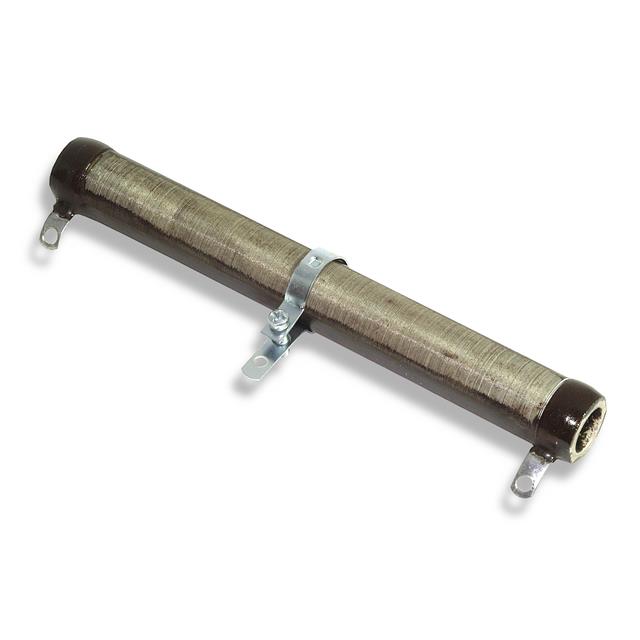

WIREWOUND RESISTORS - CHASSIS MOUNT 25WATT 25K 10% TUBULAR CERAMIC

Part	Length	Length	Mounting Type	Resistance	Package / Case	Power (Watts)	Diameter [diameter]	Diameter [diameter]	Adjustment Type	Termination	Tolerance	Length [x]	Length [x]	Diameter [custom]	Diameter [custom]	Diameter [custom]	Diameter [custom]
Ohmite D25K25KE	50.8 mm	2 in	Chassis Mount	25 kOhms	Radial 3 Lead Tubular	25 W	0.313 in 0.563 in	7.94 mm 14.3 mm	Slide	Solder Lug	10 %
Ohmite D175K30KE			Chassis Mount	30 kOhms	Radial 3 Lead Tubular	175 W	0.752 in 1.126 in	19.1 mm 28.6 mm	Slide	Solder Lug	10 %	215.9 mm	8.5 in
Ohmite D25K4K5E	50.8 mm	2 in	Chassis Mount	4.5 kOhms	Radial 3 Lead Tubular	25 W	0.313 in 0.563 in	7.94 mm 14.3 mm	Slide	Solder Lug	10 %
Ohmite D175K25KE			Chassis Mount	25 kOhms	Radial 3 Lead Tubular	175 W	0.752 in 1.126 in	19.1 mm 28.6 mm	Slide	Solder Lug	10 %	215.9 mm	8.5 in
Ohmite D175K40KE			Chassis Mount	40 kOhms	Radial 3 Lead Tubular	175 W	0.752 in 1.126 in	19.1 mm 28.6 mm	Slide	Solder Lug	10 %	215.9 mm	8.5 in
Ohmite D12K3K0E	44.45 mm	1.75 in	Brackets (not included) Chassis Mount	3 kOhms	Radial 3 Lead Tubular	12 W	0.187 in 0.313 in	4.76 mm 7.94 mm	Slide	Solder Lug	10 %	44.4 mm	1.748 in	0.313 in	4.78 mm	7.95 mm	0.188 in
Ohmite D75K10KE			Chassis Mount	10000 Ohms	Radial 3 Lead Tubular	75 W	0.313 in 0.563 in	7.94 mm 14.3 mm	Slide	Solder Lug	10 %	152.4 mm	6 "
Ohmite D50K30KE			Chassis Mount	30 kOhms	Radial 3 Lead Tubular	50 W	0.313 in 0.563 in	7.94 mm 14.3 mm	Slide	Solder Lug	10 %	101.6 mm	4 "
Ohmite D25K1K5E	50.8 mm	2 in	Chassis Mount	1500 Ohms	Radial 3 Lead Tubular	25 W	0.313 in 0.563 in	7.94 mm 14.3 mm	Slide	Solder Lug	10 %
Ohmite D225K5K0E	266.7 mm		Brackets (not included) Chassis Mount	5 kOhms	Radial 3 Lead Tubular	225 W	0.752 in 1.126 in	19.1 mm 28.6 mm	Slide	Solder Lug	10 %		10.5 in	1.125 in	19.05 mm	28.58 mm	0.75 in
