CII FCA-325 Series Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

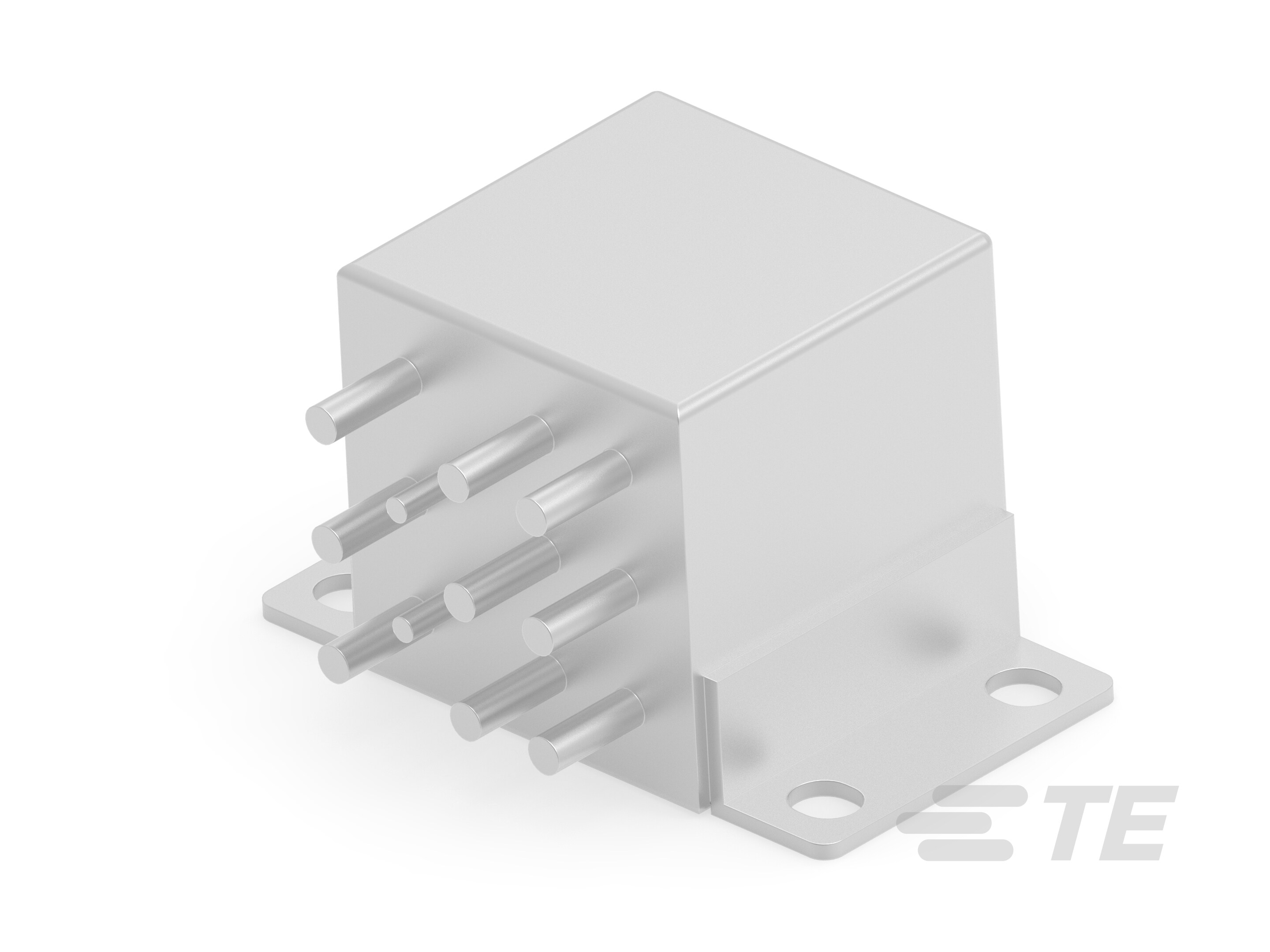

RELAY GEN PURPOSE 3PDT 25A 28V
| Part | Relay Type | Release Time | Load - Max Switching | Seal Rating | Coil Voltage | Coil Type | Contact Rating (Current) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Contact Form | Features | Must Release Voltage | Termination Style | Coil Current | Switching Voltage [Max] | Must Operate Voltage | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 15 ms | 700 W 2875 VA | Sealed - Hermetically | 28 VDC | Non Latching | 25 A | Chassis Mount | -70 °C | 125 °C | 15 ms | 3PDT (3 Form C) | Diode | 1.5 VDC | PC Pin | 96.6 mA | 28 VDC 115 VAC | 18 VDC | |
 TE Connectivity AMP Connectors | General Purpose | 15 ms | 700 W 2875 VA | Sealed - Hermetically | 115 VAC | Non Latching | 25 A | Chassis Mount | -70 °C | 125 °C | 15 ms | 3PDT (3 Form C) | 5 VAC | Solder Hook | 40 mA | 28 VDC 115 VAC | 90 VAC | ||
 TE Connectivity AMP Connectors | General Purpose | 15 ms | 700 W 2875 VA | Sealed - Hermetically | 28 VDC | Non Latching | 25 A | Chassis Mount | -70 °C | 125 °C | 15 ms | 3PDT (3 Form C) | 1.5 VDC | Solder Hook | 96.6 mA | 28 VDC 115 VAC | 18 VDC | 290 Ohms | |
TE Connectivity AMP Connectors | General Purpose | 15 ms | 700 W 2875 VA | Sealed - Hermetically | 115 VAC | Non Latching | 25 A | Chassis Mount | -70 °C | 125 °C | 15 ms | 3PDT (3 Form C) | 5 VAC | PC Pin | 0.03 A | 28 VDC 115 VAC | 95 VAC/DC | 3.833 kOhms | |
TE Connectivity AMP Connectors | General Purpose | 15 ms | 700 W 2875 VA | Sealed - Hermetically | 28 VDC | Non Latching | 25 A | Chassis Mount | -70 °C | 125 °C | 15 ms | 3PDT (3 Form C) | 1.5 VDC | Solder Hook | 96.6 mA | 28 VDC 115 VAC | 18 VDC | 290 Ohms | |
TE Connectivity AMP Connectors | General Purpose | 15 ms | 700 W 2875 VA | Sealed - Hermetically | 115 VAC | Non Latching | 25 A | Chassis Mount | -70 °C | 125 °C | 15 ms | 3PDT (3 Form C) | 5 VAC | Solder Hook | 0.03 A | 28 VDC 115 VAC | 95 VAC/DC | ||
TE Connectivity AMP Connectors | General Purpose | 15 ms | 700 W 2875 VA | Sealed - Hermetically | 115 VAC | Non Latching | 25 A | Chassis Mount | -70 °C | 125 °C | 15 ms | 3PDT (3 Form C) | 5 VAC | Solder Hook | 40 mA | 28 VDC 115 VAC | 90 VAC | ||
TE Connectivity AMP Connectors | General Purpose | 10 ms | 700 W 2875 VA | Sealed - Hermetically | 12 VDC | Non Latching | 25 A | Chassis Mount | -70 °C | 125 °C | 10 ms | 3PDT (3 Form C) | Diode | 0.75 VDC | PC Pin | 171.4 mA | 28 VDC 115 VAC | 9 VDC | 70 Ohms |
 TE Connectivity AMP Connectors | General Purpose | 15 ms | 700 W 2875 VA | Sealed - Hermetically | 28 VDC | Non Latching | 25 A | Chassis Mount | -70 °C | 125 °C | 15 ms | 3PDT (3 Form C) | Diode | 1.5 VDC | PC Pin | 96.6 mA | 28 VDC 115 VAC | 18 VDC | |
TE Connectivity AMP Connectors | General Purpose | 15 ms | 700 W 2875 VA | Sealed - Hermetically | 28 VDC | Non Latching | 25 A | Chassis Mount | -70 °C | 125 °C | 15 ms | 3PDT (3 Form C) | 1.5 VDC | Solder Hook | 96.6 mA | 28 VDC 115 VAC | 18 VDC | 290 Ohms |
