SJ1-42 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

CONN JACK 4COND 2.5MM SMD R/A

Part	Contact Material	Signal Lines	Contact Material - Plating	Voltage - Rated	Body Color	Shielding	Internal Switch(s)	Mounting Type	Features	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Housing Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Termination	Mating Length/Depth	Mating Length/Depth	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Current Rating (Amps)	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Connector Type
Same Sky (Formerly CUI Devices) SJ1-42535RS-SMT-TR	Brass Copper Alloy	Stereo (4 Conductor TRRS)	Silver	16 V	Black	Unshielded	Single Switch	Right Angle Surface Mount	Board Guide	2.5 mm	0.094 "	3 /32"	Nylon 6T Polyamide (PA6T)	2.6 mm	0.102 in	Solder	11 mm	0.433 in	85 °C	-25 °C	Female	0.3 A	5	4	Phone Jack
Same Sky (Formerly CUI Devices) SJ1-42516-SMT-TR		Stereo (4 Conductor TRRS)				Unshielded	Two Switches	Right Angle Surface Mount	Board Guide	2.5 mm	0.094 "	3 /32"		2.6 mm	0.102 in	Solder			85 °C	-25 °C	Female		6	4	Phone Jack
Same Sky (Formerly CUI Devices) SJ1-42516	Phosphor Bronze	Stereo (4 Conductor TRRS)	Gold	16 V	Black	Unshielded	Two Switches	Right Angle Through Hole	Board Guide	2.5 mm	0.094 "	3 /32"		2.6 mm	0.102 in	Solder	11 mm	0.433 in	85 °C	-25 °C	Female	0.3 A	6	4	Phone Jack
Same Sky (Formerly CUI Devices) SJ1-42516		Stereo (4 Conductor TRRS)				Unshielded	Two Switches	Right Angle Through Hole	Board Guide	2.5 mm	0.094 "	3 /32"		2.6 mm	0.102 in	Solder			85 °C	-25 °C	Female		6	4	Phone Jack
Same Sky (Formerly CUI Devices) SJ1-42516-SMT-TR	Phosphor Bronze	Stereo (4 Conductor TRRS)	Gold	16 V	Black	Unshielded	Two Switches	Right Angle Surface Mount	Board Guide	2.5 mm	0.094 "	3 /32"	Nylon 6T Polyamide (PA6T)	2.6 mm	0.102 in	Solder	11 mm	0.433 in	85 °C	-25 °C	Female	0.3 A	6	4	Phone Jack

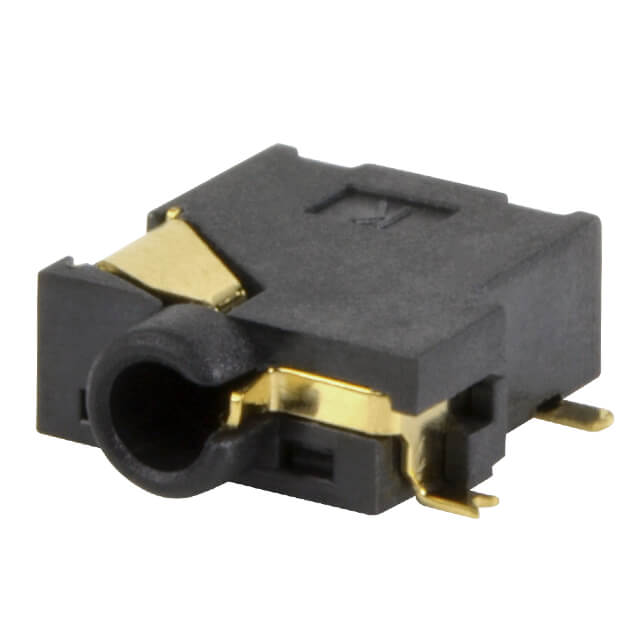

Same Sky (Formerly CUI Devices) SJ1-42514-SMT-TR	Phosphor Bronze	Stereo (4 Conductor TRRS)	Gold	16 V	Black	Unshielded		Right Angle Surface Mount	Board Guide	2.5 mm	0.094 "	3 /32"	Nylon 6T Polyamide (PA6T)	2.6 mm	0.102 in	Solder	11 mm	0.433 in	85 °C	-25 °C	Female	0.3 A	4	4	Phone Jack
Same Sky (Formerly CUI Devices) SJ1-42535TS-SMT-TR		Stereo (4 Conductor TRRS)				Unshielded	Single Switch	Right Angle Surface Mount	Board Guide	2.5 mm	0.094 "	3 /32"		2.6 mm	0.102 in	Solder			85 °C	-25 °C	Female		5	4	Phone Jack
Same Sky (Formerly CUI Devices) SJ1-42515RS-SMT-TR	Phosphor Bronze	Stereo (4 Conductor TRRS)	Gold	16 V	Black	Unshielded	Single Switch	Right Angle Surface Mount	Board Guide	2.5 mm	0.094 "	3 /32"	Nylon 6T Polyamide (PA6T)	2.6 mm	0.102 in	Solder	11 mm	0.433 in	85 °C	-25 °C	Female	0.3 A	5	4	Phone Jack
Same Sky (Formerly CUI Devices) SJ1-42535TS-SMT-TR	Brass Copper Alloy	Stereo (4 Conductor TRRS)	Silver	16 V	Black	Unshielded	Single Switch	Right Angle Surface Mount	Board Guide	2.5 mm	0.094 "	3 /32"	Nylon 6T Polyamide (PA6T)	2.6 mm	0.102 in	Solder	11 mm	0.433 in	85 °C	-25 °C	Female	0.3 A	5	4	Phone Jack
