FIT0495 Series

Manufacturer: DFRobot

Catalog

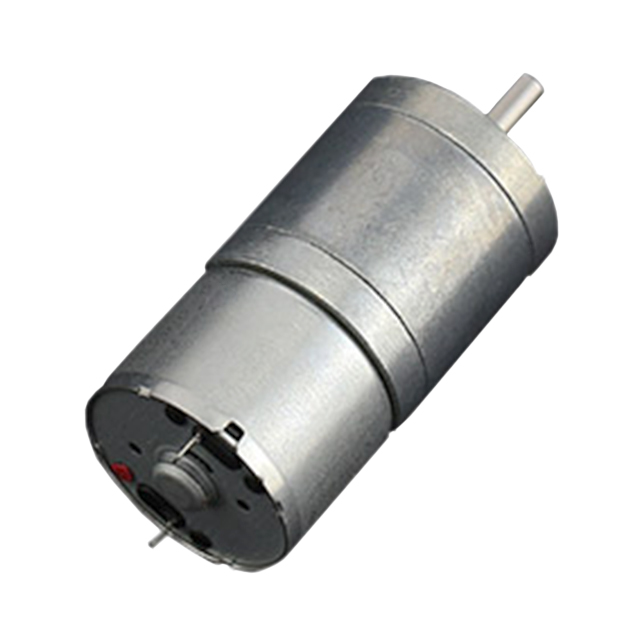

GEARMOTOR 15 RPM 6V METAL

Part	Weight [custom]	Weight [custom]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Termination Style	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Length - Shaft and Bearing	Length - Shaft and Bearing	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	RPM	Type	Operating Temperature [Min]	Operating Temperature [Max]	Gear Reduction Ratio	Voltage - Rated	Weight	Weight	Weight [custom]	Weight [custom]
DFRobot FIT0495-A	0.163 lb	73.94 g	0.157 in	4 mm	Solder Tab	17 mm	0.669 in	12 mm	0.472 in	25 mm	Round	0.984 "	15 RPM	DC Motor	-20 ░C	60 °C	478	6 VDC
DFRobot FIT0495-F	0.163 lb	73.94 g	0.157 in	4 mm	Solder Tab	17 mm	0.669 in	12 mm	0.472 in	25 mm	Round	0.984 "	97 RPM	DC Motor	-20 ░C	60 °C	75	6 VDC
DFRobot FIT0495-I			0.157 in	4 mm	Solder Tab	17 mm	0.669 in	12 mm	0.472 in	25 mm	Round	0.984 "	357 RPM	DC Motor	-20 ░C	60 °C	20	6 VDC	0.146 lb	66.22 g
DFRobot FIT0495-H			0.157 in	4 mm	Solder Tab	17 mm	0.669 in	12 mm	0.472 in	25 mm	Round	0.984 "	214 RPM	DC Motor	-20 ░C	60 °C	34	6 VDC	0.15 lb	68.04 g
DFRobot FIT0495-E			0.157 in	4 mm	Solder Tab	17 mm	0.669 in	12 mm	0.472 in	25 mm	Round	0.984 "		DC Motor	-20 ░C	60 °C	99	6 VDC			72.12 g	0.159 lb
DFRobot FIT0495-B	0.163 lb	73.94 g	0.157 in	4 mm	Solder Tab	17 mm	0.669 in	12 mm	0.472 in	25 mm	Round	0.984 "	20 RPM	DC Motor	-20 ░C	60 °C	362	6 VDC
DFRobot FIT0495-G			0.157 in	4 mm	Solder Tab	17 mm	0.669 in	12 mm	0.472 in	25 mm	Round	0.984 "	162 RPM	DC Motor	-20 ░C	60 °C	45	6 VDC	0.15 lb	68.04 g
