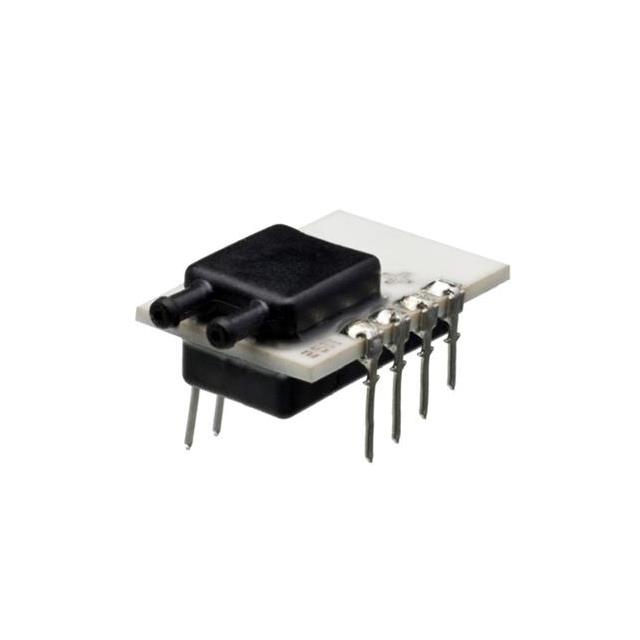

P1J-2 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SENSOR 0.07PSID 0.08" 14BIT
| Part | Output Type | Pressure Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Accuracy | Output | Maximum Pressure | Maximum Pressure | Features | Mounting Type | Applications | Termination Style | Operating Pressure | Operating Pressure | Port Size | Port Size | Port Size | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Port Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | Digital - I2C | Differential | 5.5 V | 2.7 V | 0.25 % | 14 b | 1.02 PSI | 7 kPa | Amplified Output Temperature Compensated | Through Hole | Board Mount | PC Pin | 0.07 PSI | 0.5 kPa | 0.08 " | Dual Male Tube | 1.92 mm | 85 °C | -20 ░C | 8-DIP (0.524" 13.30mm) Dual Ports Same Side | 0.524 in 13.3 mm | Barbed |
