74217 Series

Catalog

CONN ARRAY RCPT 240POS SMD GOLD

Part	Contact Finish	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Connector Type	Mounting Type	Height Above Board	Height Above Board

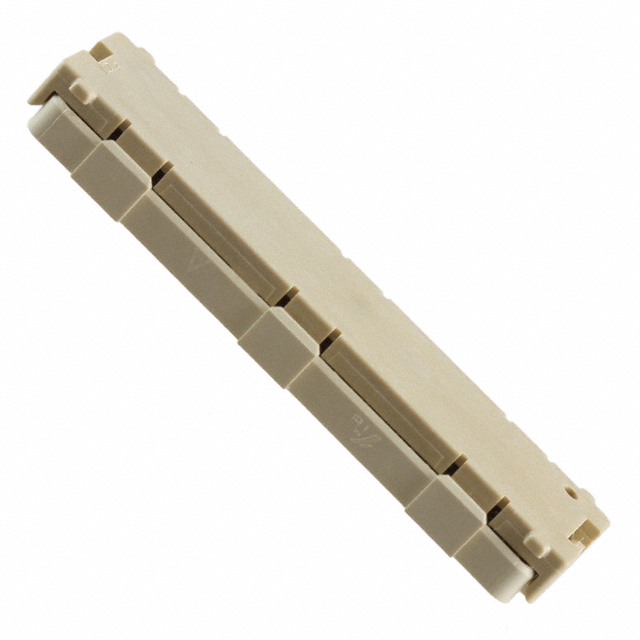

Amphenol ICC (FCI) 74217-001LF	Gold	0.05 in	1.27 mm	4 mm	15 µin	0.38 µm	240	8	Array Female Sockets	Surface Mount	3.35 mm	0.132 in
Amphenol ICC (FCI) 74217-091LF	Gold GXT™	0.05 in	1.27 mm	4 mm	15 µin	0.38 µm	240	8	Array Female Sockets	Surface Mount	3.35 mm	0.132 in
Amphenol ICC (FCI) 74217-001	Gold	0.05 in	1.27 mm	4 mm	15 µin	0.38 µm	240	8	Array Female Sockets	Surface Mount	3.35 mm	0.132 in
Amphenol ICC (FCI) 74217-191	Gold GXT™	0.05 in	1.27 mm	4 mm	30 Áin	0.76 Ám	240	8	Array Female Sockets	Surface Mount	3.35 mm	0.132 in
Amphenol ICC (FCI) 74217-201	Gold or Gold GXT™	0.05 in	1.27 mm	4 mm	50 µin	1.27 µm	240	8	Array Female Sockets	Surface Mount	3.35 mm	0.132 in
Amphenol ICC (FCI) 74217-093BLF

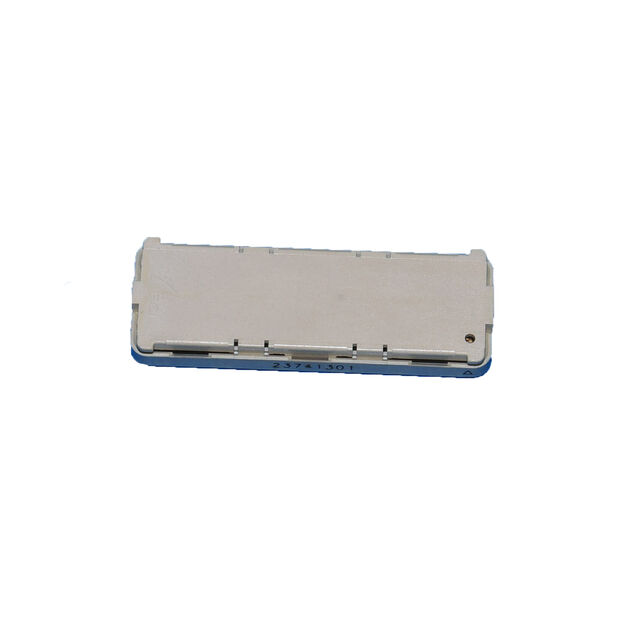

Amphenol ICC (FCI) 74217-101LF	Gold	0.05 in	1.27 mm	4 mm	30 Áin	0.76 Ám	240	8	Array Female Sockets	Surface Mount	3.35 mm	0.132 in
