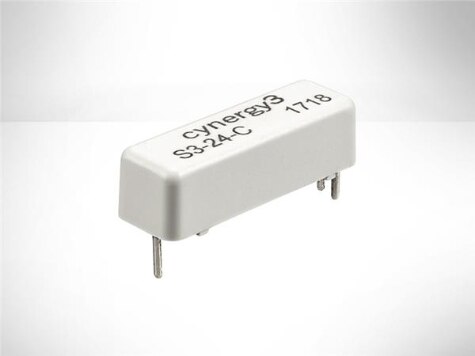

S3 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
REED RELAYS RR C/O 12V COIL W/SCREEN
| Part | Contact Rating (Current) | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Coil Type | Contact Form | Features | Mounting Type | Must Release Voltage | Coil Current | Must Operate Voltage | Coil Voltage | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 250 mA | Rhodium (Rh) | 85 °C | -40 C | 120 VDC | Non Latching | SPDT (1 Form C) | EMI Shielded | Through Hole | 1.2 VDC | 66.7 mA | 9 VDC | 12 VDC | PC Pin |
Sensata-Crydom | 250 mA | Rhodium (Rh) | 85 °C | -40 C | 120 VDC | Non Latching | SPDT (1 Form C) | Through Hole | 2.4 VDC | 24 mA | 18 VDC | 24 VDC | PC Pin | |
Sensata-Crydom | 250 mA | Rhodium (Rh) | 85 °C | -40 C | 120 VDC | Non Latching | SPDT (1 Form C) | Through Hole | 1.2 VDC | 66.7 mA | 9 VDC | 12 VDC | PC Pin | |
Sensata-Crydom | 250 mA | Rhodium (Rh) | 85 °C | -40 C | 120 VDC | Non Latching | SPDT (1 Form C) | Through Hole | 0.5 VDC | 167 mA | 3.75 VDC | 5 VDC | PC Pin | |
Sensata-Crydom | 250 mA | Rhodium (Rh) | 85 °C | -40 C | 120 VDC | Non Latching | SPDT (1 Form C) | EMI Shielded | Through Hole | 2.4 VDC | 24 mA | 18 VDC | 24 VDC | PC Pin |
 Sensata-Crydom | 250 mA | Rhodium (Rh) | 85 °C | -40 C | 120 VDC | Non Latching | SPDT (1 Form C) | EMI Shielded | Through Hole | 0.5 VDC | 167 mA | 3.75 VDC | 5 VDC | PC Pin |
