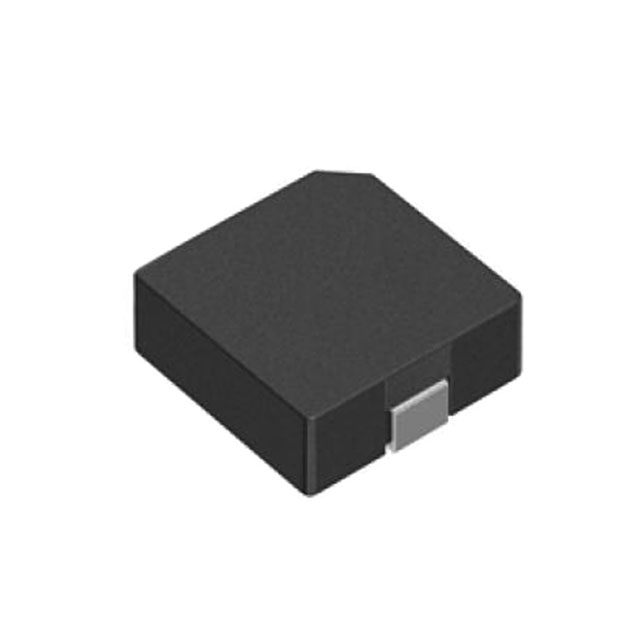

SPM-XT Series
Manufacturer: TDK Corporation
Beta
⌘K
POWER INDUCTORS - SMD 0.18UH,20%,10040 METAL, PWR INDUCTOR
| Part | Inductance | Current - Saturation (Isat) | Height - Seated (Max) | Height - Seated (Max) [Max] | DC Resistance (DCR) [Max] | Shielding | Mounting Type | Inductance Frequency - Test | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Material - Core | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 180 nH | 46 A | 4 mm | 0.157 in | 0.55 mOhm | Shielded | Surface Mount | 100 kHz | 125 °C | -40 C | 20 % | 38 A | 10 mm | 11.5 mm | 0.453 " | 0.394 in | 2-SMD J-Lead | Metal | Drum Core Wirewound |
 TDK Corporation | 0.68 µH | 21 A | 4 mm | 0.157 in | 1.65 mOhm | Shielded | Surface Mount | 100 kHz | 125 °C | -40 C | 20 % | 18 A | 10 mm | 11.5 mm | 0.453 " | 0.394 in | 2-SMD J-Lead | Metal | Drum Core Wirewound |
