0908-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

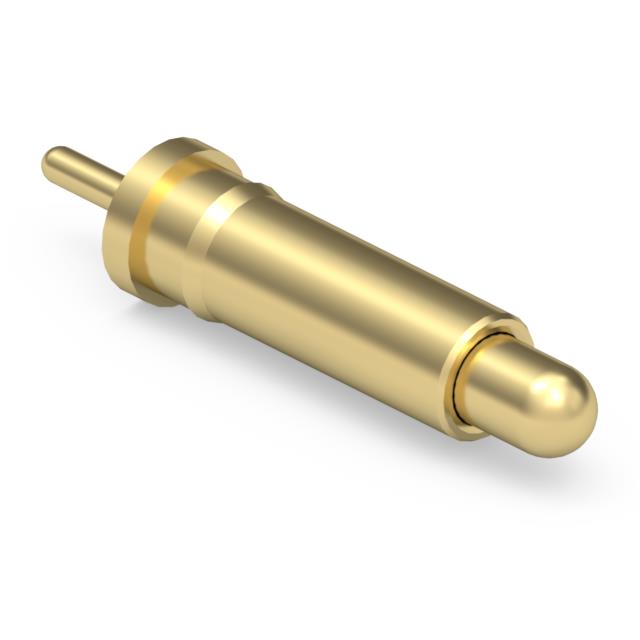

CONTACT SPRING LOADED T/H GOLD
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Pad Layout Dimension | Pad Layout Dimension | Maximum Working Height [Max] [z] | Maximum Working Height [Max] [z] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Operating Force - Mid Compression | Contact Finish | Minimum Working Height | Minimum Working Height | Recommended Working Height | Recommended Working Height | Operating Force - Initial | Plunger Size [diameter] | Plunger Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 2 A 5.2 A | -55 C | 125 °C | Brass Alloy | Through Hole | 0.072 in | 1.83 mm | 0.255 in | 6.48 mm | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 1000000 | 60 gf | Gold | 0.2 in | 5.08 mm | 5.78 mm | 0.228 in | 10 gf | 0.042 in | 1.07 mm |
